SQUARE D

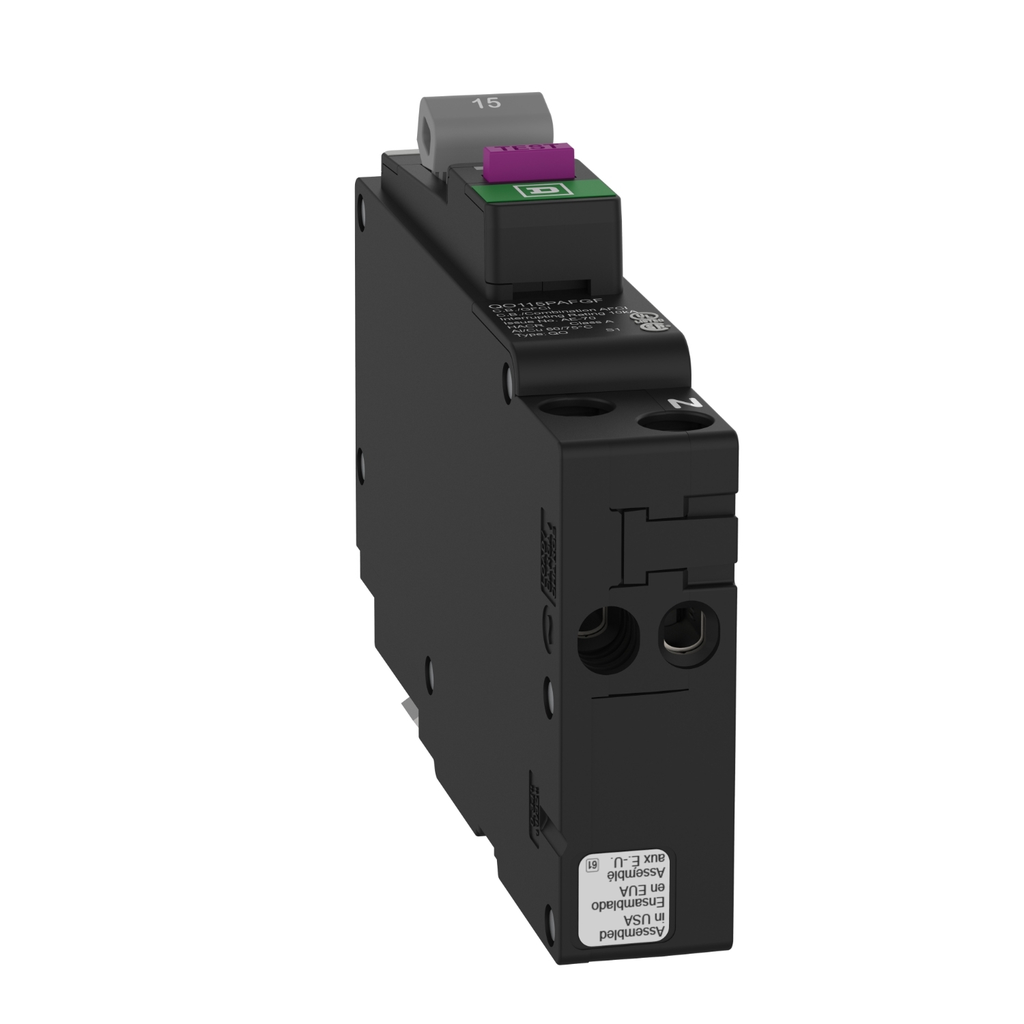

Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral [TAA]

1P ARC FAULT CIRCUIT BREAKE

SQDQO115PAFGF QO115PAFGF 785901778400
84.64 / EA
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral [TAA]-2
  • Depth: 104.14 mm
  • Height: 69.08 mm
  • Net Weight: 0.159 kg
  • Weight: 0.159 kg
  • Width: 19.05 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a dual function feature with plug on neutral. This provides combination arc fault and ground fault protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a dual function feature with plug on neutral. This provides combination arc fault and ground fault protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP2103010
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2103010
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 10.0021693401
  • Specifications
    • Country of Origin : Mexico
    • Width : 19.05 mm
    • Height : 69.08 mm
    • Weight : 0.159 kg
    • Connections - Terminals : plug-on neutral
    • Circuit Breaker Type : combination ARC-fault || ground fault protecting class A 6 mA
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : plug-in
    • Poles Description : 1P
    • Electrical Connection : pressure plate
    • Line Rated Current : 15 A
    • [Ue] Rated Operational Voltage : 120 V AC
  • Complementary
    • Height : 69.08 mm
    • Tightening Torque : 4-4 N.m
    • Number Of Spaces Required : 1
    • Net Weight : 0.159 kg
    • Breaking Capacity : 10 kA 120 V AC
    • Width : 19.05 mm
    • Depth : 104.14 mm
  • Environment
    • Product Certifications : UL Listed
    • Ambient Air Temperature For Operation : 40 °C
