SQUARE D

CANopen terminal adaptor - 2 RJ45 connectors for daisy chain connection

RJ45 DIASYCHAIN TAP W 0.3M DRO

SQDTCSCTN023F13M03 TCSCTN023F13M03 785901671633
191.50 / EACH
http://schema.org/OutOfStock

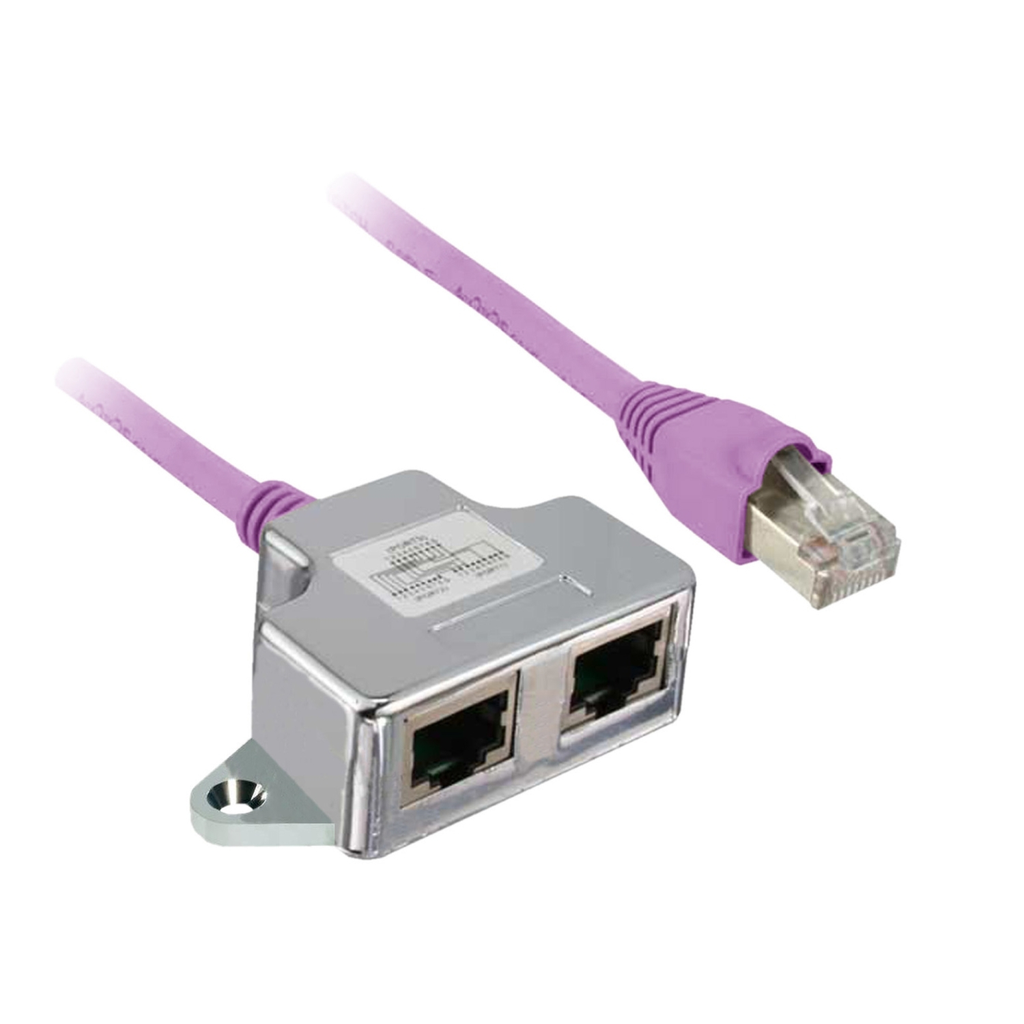

This Daisy chain tap is an accessory for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors for connecting CANopen bus in a daisy chain and one cordset equipped with an RJ45 connector for connecting the drive. It also comprises 1 cordset equipped with an RJ45 connector for connecting the drive. It enables the connection of your variable speed drive to CANopen machine bus. It is 3m long. It weighs 50g.
QTY
  • Product Description
  • Specifications
This Daisy chain tap is an accessory for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors for connecting CANopen bus in a daisy chain and one cordset equipped with an RJ45 connector for connecting the drive. It also comprises 1 cordset equipped with an RJ45 connector for connecting the drive. It enables the connection of your variable speed drive to CANopen machine bus. It is 3m long. It weighs 50g.
  • Specifications
    • Range Of Product : CANopen
    • Bus Type : CANopen
    • Accessory / Separate Part Category : connection accessories
    • Product Or Component Type : CANopen terminal adaptor
    • Range Compatibility : Altivar 71 || Altivar Machine ATV320 || Lexium SD3 || Altivar Machine ATV340 except Sercos drives || Altivar 312
    • Accessory / Separate Part Type : adaptor
    • Accessory / Separate Part Destination : for link conforming to the CANopen standard
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Electrical Connection : 2 connectors RJ45 for daisy chain connection of CANopen bus <0.3 m || 1 cable RJ45 for connecting the drive
  • Offer Sustainability
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
