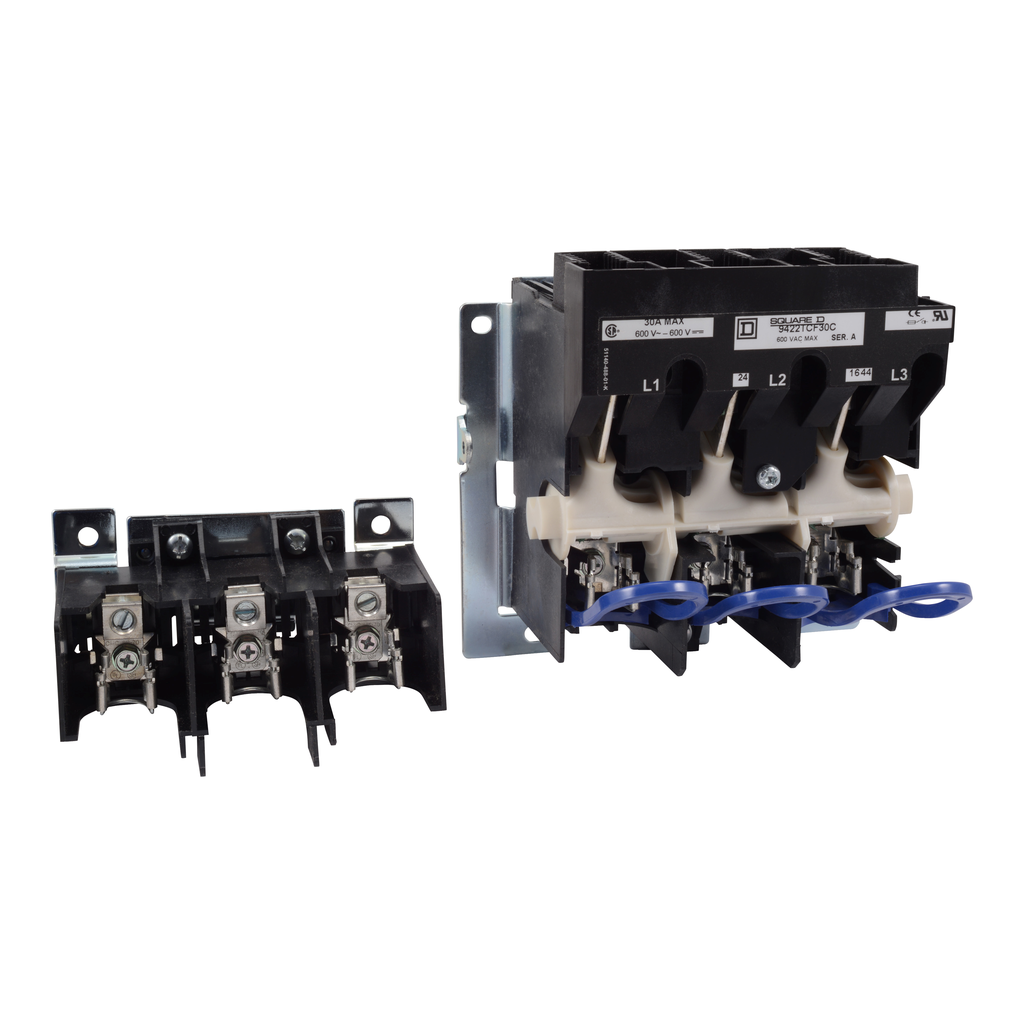

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 60 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 250 VDC and 30 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles or cable operator. Handle is to be ordered seoparately. Disconnect switch lugs are rated for 14 to 2 AWG with copper wire and 14 to 2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Horse Power Rating : 15 hp 200 V AC, 15 hp 200 V AC, 15 hp 200 V AC, 15 hp 230 V AC, 15 hp 230 V AC, 15 hp 230 V AC, 30 hp 460 V AC, 30 hp 460 V AC, 30 hp 460 V AC, 50 hp 575 V AC, 50 hp 575 V AC, 50 hp 575 V AC, 10 hp 250 V DC, 10 hp 250 V DC, 10 hp 250 V DC
• Important Information Attributes
• Persona Type Ids : EU, LC, OM8, PB
• Persona Type Names : End User, Contractor, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Product Mounting : flange cable variable depth, flange cable variable depth, flange cable variable depth
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Package Weight Lbs : 4.436 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Disconnect Switch
• Provided Equipment : ordered separately
• Range Of Product : 9422T
• Returnability : No
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Compliant
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• General Attributes
• Product Or Component Type : Disconnect Switch
• Provided Equipment : ordered separately
• Range Of Product : 9422T
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
