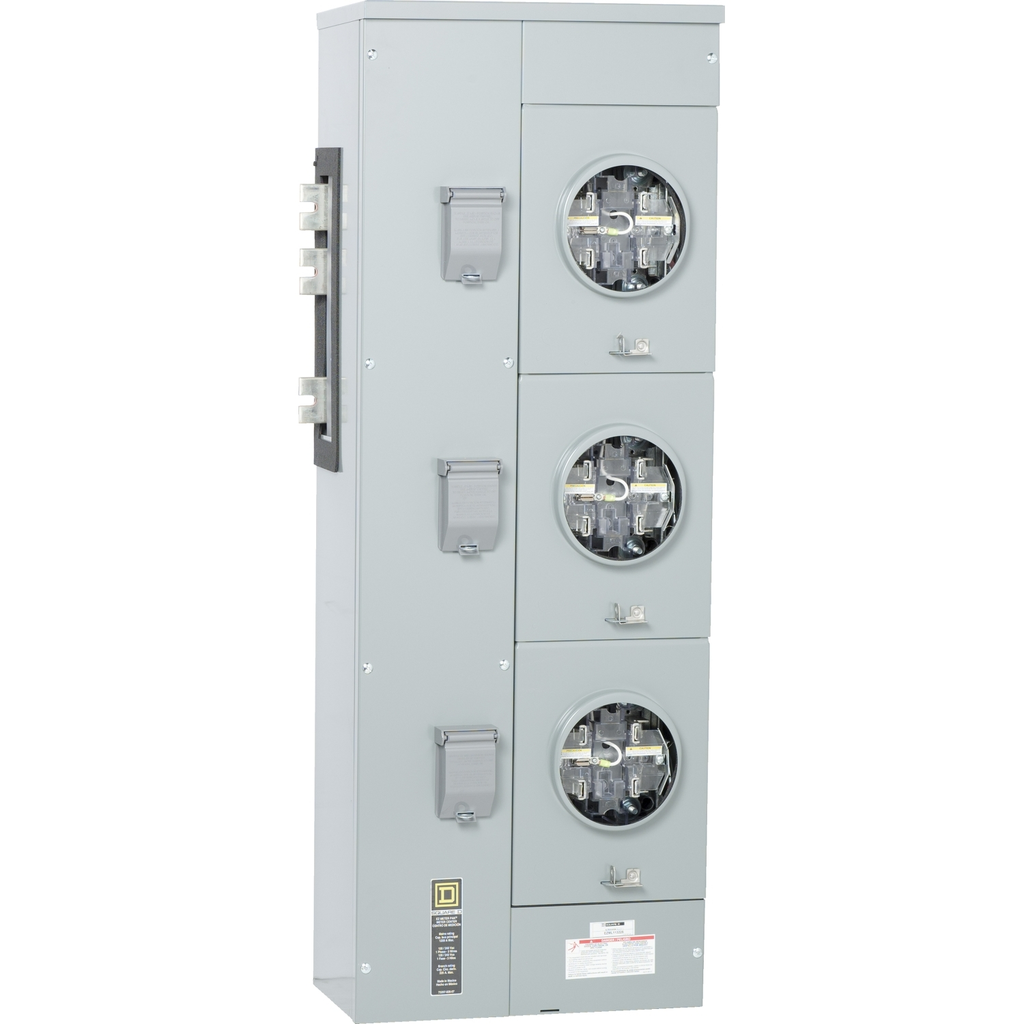

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circui

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=3298&p_File_name=3298.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=3298&p_File_name=3298.dxf
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.063212709
• 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 7 kg CO2 eq.
• 6.6700133333
• Phase
• 1 phase in
• 1 phase out
• Material
• aluminium/copper: busbar
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 270 kg CO2 eq.
• 270.2898918919
• Accessories
• 29007
• 5J
• EZM125QOA
• EZM1CORNER
• EZM1ELBOW
• EZM1EXT
• EZM1EXT6
• EZM1TRANL
• EZM1TRANR
• EZM72MC
• Persona Type Names
• End User
• Contractor
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 505 kg CO2 eq.
• 504.64
• Persona Type Ids
• EU
• LC
• Carbon Footprint Of The Distribution Phase A4
• 8.310243964
• 8 kg CO2 eq.
• Number Of Jaws
• 5 with jaw release
• UE Rated Operational Voltage
• 120/240 V AC

• Complementary Attributes
• Bus Rated Current : 1200 A
• Important Information Attributes
• B2B Bullet Point 1 : Meter sockets and tenant circuit breaker slots for downstream metering and protection
• B2B Bullet Point 2 : 125A, 225A, and 400A units available, ringless or ring type with varied bypass options
• B2B Bullet Point 3 : 800A horizontal busbar standard (1200A busbar optional)
• B2B Bullet Point 4 : Corner, elbow, transition, and bus extensions create system design flexibility
• B2B Bullet Point 5 : NEMA Type 3R for outdoor and indoor installation
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : No
• Manufacturing Carbon Footprint : 270.2898918919
• Distribution Carbon Footprint : 8.310243964
• Installation Carbon Footprint : 0.063212709
• Use Carbon Footprint : 504.64
• End Of Life Carbon Footprint : 6.6700133333
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 2532
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Meter enclosures
• H And D Enrichment Class 4 : Single-phase multi-tenant meter enclosure
• Energy Efficiency Optimized : False
• Meter Socket Type : ringless
• Number Of Meter Sockets : 3
• Package Weight Lbs : 67.585 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Meter Center Branch Unit
• Range Of Product : Meter-Pak
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 790 kg CO2 eq.
• Wiring Configuration : 3-wire
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 789.9733618982
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2005009
• Pep Verification Date : 2020-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 64410
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring. control and protection devices in a single enclosure or a cabinet having the following dimensions 22.6 cm x 37.6 cm x147.3 cm.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 728.832
• Energy Model Manufacturing A1 A3 : Energy model used: Mexico
• Energy Model Installation A5 : Electricity mix; AC; consumption mix. at consumer; 120V; US
• Energy Model Use B6 : Electricity mix; AC; consumption mix. at consumer; 120V; US
• Energy Model End Of Life C1 C4 : Electricity mix; AC; consumption mix. at consumer; 120V; US
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0281543973
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0281489108
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000003326
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000025
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000049592
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000001922
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 9188.4668704775
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 2851.4481081081
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 116.7523126126
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.8028812883
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 6144.1
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 75.3635684685
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.0033204419
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0003121274
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.0030083145
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 2340.0624647875
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2253.5763063063
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0000269497
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 13.492
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 72.9941315315
• Materials For Energy Recovery Kg Total Life Cycle : 0.2116632523
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.2116632523
• Materials For Recycling Kg Total Life Cycle : 64.2016636306
• Materials For Recycling Kg Manufacturing A1 A3 : 6.4864545045
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 1.0634226396
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 56.6517864865
• Net Use Of Fresh Water M3 Total Life Cycle : 4.6309755618
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 3.730750991
• Net Use Of Fresh Water M3 Distribution A4 : 0.0007437324
• Net Use Of Fresh Water M3 Installation A5 : 0.0000110967
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.89188
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0075897417
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 275.5002700568
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 197.6980810811
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.2952608559
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0585279937
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 77.159
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.2894001261
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000322632
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000227002
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000168
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000003
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000091525
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000003934
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.125514689
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.1169167225
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0002102899
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0000032805
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.007939
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0004453961
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 15538.3670927477
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 8940.8043243243
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 117.3461225225
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.8120882432
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 6385.6
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 93.8045576577
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 16041.2149376667
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 9035.3883783784
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 117.5027954955
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.8147574865
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 6793.6
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 93.9090063063
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 502.7556730484
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 94.4912108108
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1565917351
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0026655682
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 408
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.1052049342
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 210.8702162162
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 210.8702162162
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 15327.5355612162
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 8729.9727927928
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 117.3461225225
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.8120882432
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 6385.6
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 93.8045576577
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 20.6247396396
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 20.6247396396
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 482.1309334087
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 73.8664711712
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1565917351
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0026655682
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 408
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.1052049342
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 16.3881863964
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 16.3881863964
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 125009.8308221621
• Air Pollution M3 Manufacturing A1 A3 : 81133.3891891892
• Air Pollution M3 Distribution A4 : 353.519990991
• Air Pollution M3 Installation A5 : 2.9512545946
• Air Pollution M3 Operational Energy Use B6 : 42855
• Air Pollution M3 End Of Life C1 C4 : 664.9703873874
• Water Pollution M3 Total Life Cycle : 45207.2722075676
• Water Pollution M3 Manufacturing A1 A3 : 18228.6102702703
• Water Pollution M3 Distribution A4 : 1366.6138558559
• Water Pollution M3 Installation A5 : 9.3872255856
• Water Pollution M3 Operational Energy Use B6 : 24878
• Water Pollution M3 End Of Life C1 C4 : 724.6608558559
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 1.4350438233
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.1702755546
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.4168703175
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.8949508378
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.037943873
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0002617212
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.48317
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0187173913
• Global Warming Kg Equivalent Co2 Total Life Cycle : 789.9733618982
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 270.2898918919
• Global Warming Kg Equivalent Co2 Distribution A4 : 8.310243964
• Global Warming Kg Equivalent Co2 Installation A5 : 0.063212709
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 504.64
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 6.6700133333
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0881411198
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0027077345
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000196151
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.077392
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0020150852
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.2761893063
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0087394505
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000821643
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.12733
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0045293963
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : Meter Center Branch Unit
• Range Of Product : Meter-Pak
• Output Attributes
• Bypass Type : lever bypass
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=358301&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 789.9733618982
• Environmental Disclosure : ENVPEP2005009
• EU ROHS Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2005009
• Pep Verification Date : 2020-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
