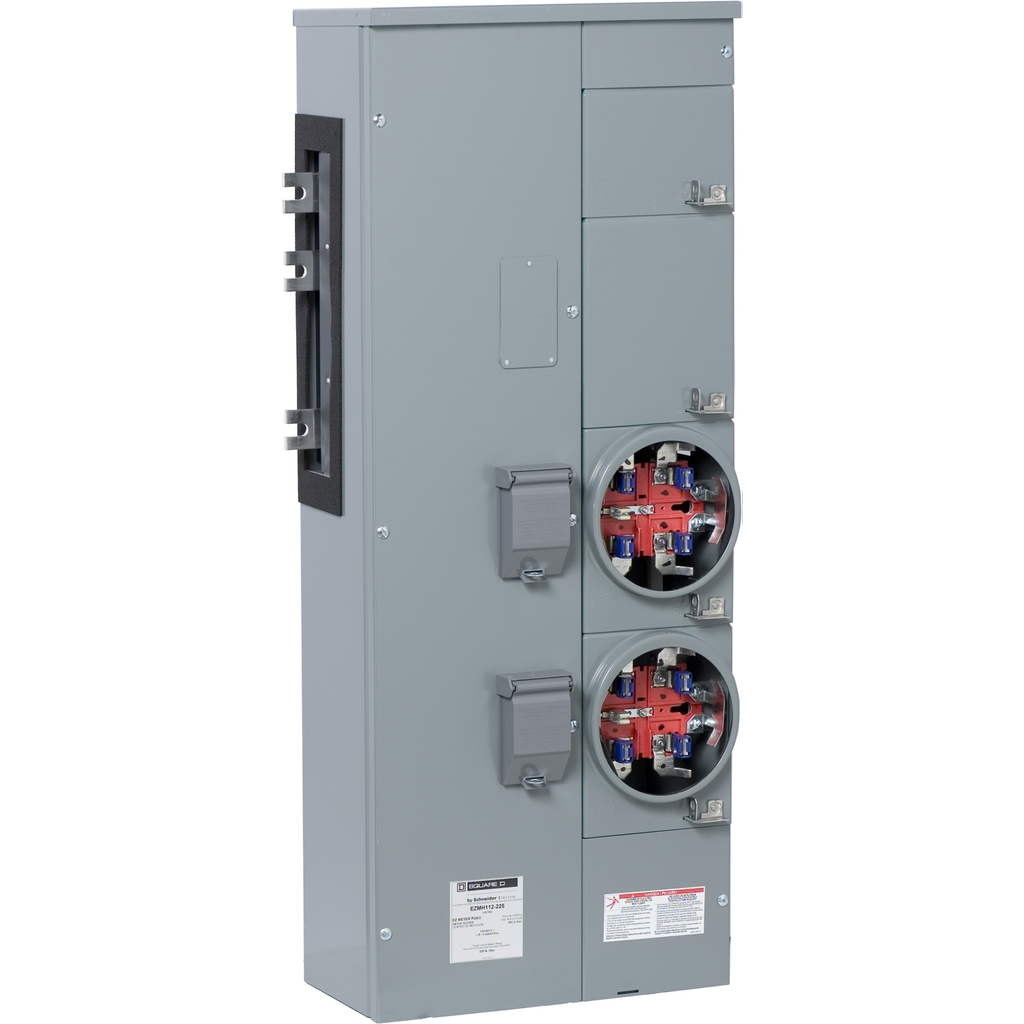

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circui

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Ue Rated Operational Voltage
• 120/240 V AC
• Phase
• 1 phase in
• 1 phase out
• Material
• copper: busbar
• Accessories
• 29007
• 5J
• EZM125QOA
• EZM1CORNER
• EZM1ELBOW
• EZM1EXT
• EZM1EXT6
• EZM1TRANL
• EZM1TRANR
• EZM72MC
• Number Of Jaws
• 5 without jaw release

• Conformance Attributes
• Product Certifications : UL Listed
• Complementary Attributes
• Bus Rated Current : 1200 A
• Line Rated Current : 225 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Meter sockets and tenant circuit breaker slots for downstream metering and protection
• B2B Bullet Point 2 : 125A, 225A, and 400A units available, ringless or ring type with varied bypass options
• B2B Bullet Point 3 : 800A horizontal busbar standard (1200A busbar optional)
• B2B Bullet Point 4 : Corner, elbow, transition, and bus extensions create system design flexibility
• B2B Bullet Point 5 : NEMA Type 3R for outdoor and indoor installation
• Local Data Status : Publishable
• Local Publishable Date : 2025-05-31
• Device Type : Relay, Control & Measurement - measuring, monitoring device
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2532
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Persona Type Ids : LC
• Persona Type Names : Contractor
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Meter enclosures
• H And D Enrichment Class 4 : Single-phase multi-tenant meter enclosure
• Enclosure Material : steel
• Energy Efficiency Optimized : False
• Meter Socket Type : ringless
• Number Of Meter Sockets : 2
• Package Weight Lbs : 36.741 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Meter Center Branch Unit
• Range Of Product : Meter-Pak
• Returnability : No
• Sustainable Packaging : No
• Wiring Configuration : 3-wire
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : Meter Center Branch Unit
• Range Of Product : Meter-Pak
• Output Attributes
• Bypass Type : horn bypass
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=358077&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2005009
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : NEMA 3R
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 43.41 in
• Width : 17.38 in
• Depth : 8.09 in
