SQUARE D

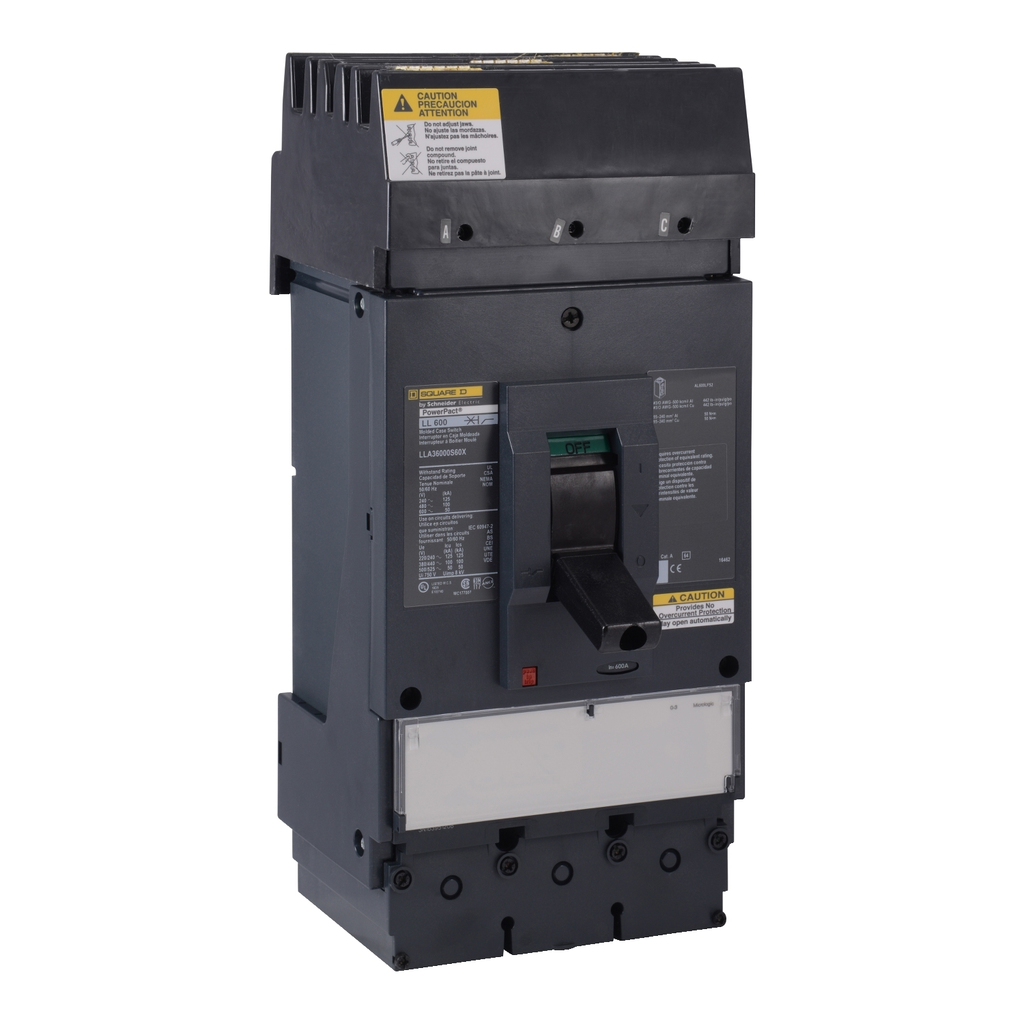

Automatic switch, PowerPacT L, 600A, 3 pole, 600VAC, 50kA, I-Line, magnetic, ABC

AUTOMATIC MOLDED CASE SWITCH 6

SQDLLA36000S60X LLA36000S60X 785901146254
7823.96 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Automatic switch, PowerPacT L, 600A, 3 pole, 600VAC, 50kA, I-Line, magnetic, ABC-1
  • Warranty Length: 18 mth
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT L-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT L, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. It has an ABC phase connection. PowerPacT L automatic switches comply to UL, CSA, ANCE, and IEC standards.
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT L-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT L, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. It has an ABC phase connection. PowerPacT L automatic switches comply to UL, CSA, ANCE, and IEC standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Short Circuit Withstand : 125 kA 240 V UL 489, 100 kA 480 V UL 489, 50 kA 600 V UL 489
    • UE Rated Operational Voltage : 600 V AC
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Electrical Connection : lugs, load, I-Line connection, line
    • Short Circuit Withstand : 125 kA 240 V UL 489, 100 kA 480 V UL 489, 50 kA 600 V UL 489
    • Carbon Footprint Of The Distribution Phase A4 : 2.228383327123949, 2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 12 kg CO2 eq., 11.67639778652332
    • Carbon Footprint Of The Installation Phase A5 : 2.1496401101385745, 2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 50 kg CO2 eq., 49.671357924070975
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 758 kg CO2 eq., 757.8801652135367
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-15
    • Device Type : LV equipment - LV switch - disconnector
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2206029_V2
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • AWG Gauge : 2 x AWG 3/0...500 kcmil ( aluminium/copper )
    • Magnetic Tripping Current : 6600-6600 A
    • Package Weight Lbs : 7.711 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : automatic switch
    • Range Of Product : PowerPact L
    • Returnability : Yes
    • Sustainable Packaging : No
    • Terminal Identifier : AL600LF52K3
    • Tightening Torque : 50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)
    • Total Lifecycle Carbon Footprint : 824 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2206029EN
    • Pep Verification Date : 2027-06-24
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : LUIS MANUEL MENDOZA
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 823.6059443613935
    • Circularity Profile : ENVEOLI2206029_V2
    • Environmental Disclosure : ENVPEP2206029EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP2206029EN
    • Pep Verification Date : 2027-06-24
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : automatic switch
    • Range Of Product : PowerPact L
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
