Active harmonic filter - 60 A 380..480 V AC - IP54 enclosure

AccuSine PCS+ 60A 380-480 VAC

SQDPCSP060D5IP54 PCSP060D5IP54 3606480851117
88290.49 / EA
http://schema.org/OutOfStock
Mayer-DDS-Active harmonic filter - 60 A 380..480 V AC - IP54 enclosure-1
  • Country of Origin: USA
  • Depth: 500 mm
  • Warranty Length: 18 mth

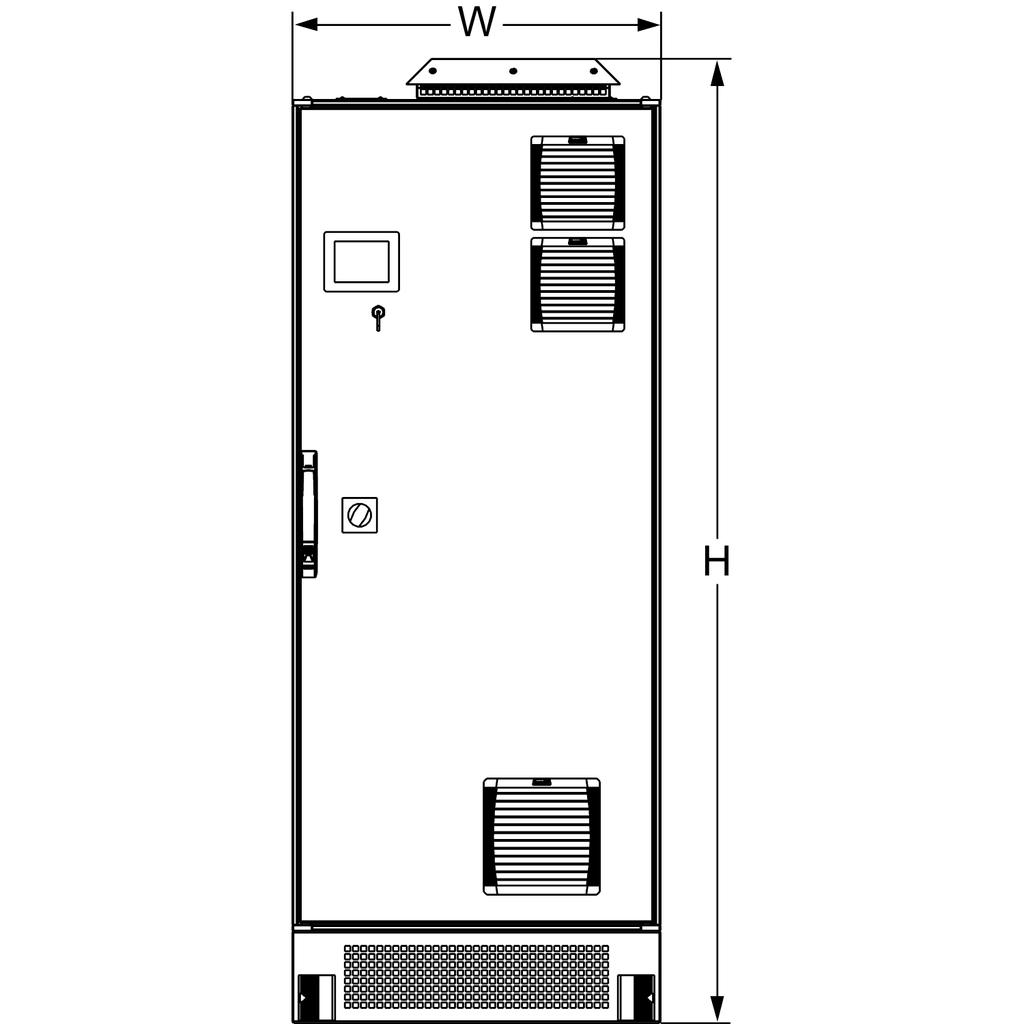

This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is ingress protection IP54 and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 60 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set. Frame exterior dimensions are 800 millimetres in width, 500 millimetres in depth, 2100 millimetres in height and product weight 291 kg.
QTY
  • Product Description
  • Features
  • Specifications
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is ingress protection IP54 and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 60 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set. Frame exterior dimensions are 800 millimetres in width, 500 millimetres in depth, 2100 millimetres in height and product weight 291 kg.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Color : Light gray RAL 7035)
  • Complementary Attributes
    • Maximum Permissible Voltage : 1.1 x Un
    • Network Rated Voltage : 380-480 V AC
  • Important Information Attributes
    • Environmental Characteristic : operating 3C2 IEC 60721-3-3, operating 3S2 IEC 60721-3-3, storage 3C3 IEC 60721-3-3, storage 3S3 IEC 60721-3-3
    • Operating Mode : mains current balancing, power factor correction, harmonic cancellation
    • Carbon Footprint Of The Distribution Phase A4 : 280.2358960970392, 280 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 507 kg CO2 eq., 507.231013088311
    • Carbon Footprint Of The Installation Phase A5 : 93.48262929380383, 93 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 073 kg CO2 eq., 3072.8392409363682
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 45 340 kg CO2 eq., 45339.699459280215
    • Certificate Agency : ABS, cULus, RCM, CE
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Device Type : Surge Protection and Power Conditioning - Filters & Harmonic Conditioners
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Average Life Duration : 10 year(s)
    • Service Catalog Item : Finished good
    • Weee Scope : In
    • Weee Product Category : 4
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1507014EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2523
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Control Type : door-interlocked with rotary handle
    • Electromagnetic Compatibility : conducted EMC, class A EN 61000-6-4
    • Enclosure Mounting : floor-standing
    • Energy Efficiency Optimized : False
    • Function Available : rear plenum with forced ventilation for high heat flow
    • Impregnation Material : conformal coated
    • Location Of Connection : top or bottom
    • Mounting Location : indoor
    • Neutral Protection Setting : not provided
    • Poles Description : 3P
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Name : AccuSine PCS+
    • Product Or Component Type : active harmonic filter
    • Protection Type : circuit breaker protection
    • Range : AccuSine
    • Range Of Product : AccuSine
    • Reactive Power Rating : 50 kvar 480 V AC 50/60 Hz
    • Returnability : No
    • Software Version : v6.3.3
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 49 293 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Wiring Mode : 3 or 4 wires
    • Warranty In Months : 18
    • Ip Protection : IP54
    • Pep Code : ENVPEP1507014EN
    • Database Version : 2025-04
    • Pep Verification Date : 2026-02-19
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional-unit Description : AccuSine PCSP (Power Correction Systems Plus) are static power electronic products that employ digital logic and IGBT semiconductors to synthesize a current waveform that is injected into the electrical network to cancel harmonic currents caused by nonlinear loads. AccuSine PCSP also can correct for poor displacement power factor (DPF) and for mains current balancing.
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime, In Y : 10
    • Energy Consumption On Product Lifetime, In Kwh : 84346.6236
    • Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; India, IN
    • Energy Model - Installation [A5] : No energy used
    • Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Europe, EU-27
    • Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
    • Recyclability Potential, In % : 73
    • Offer Owner Code : 190781
    • Pn : 1
    • Height Nominal : 2100 mm
    • Width Nominal : 800 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : 0-40 °C, 0-50 °C maximum with current derating of 2 % per °C
    • Ambient Air Temperature For Storage : -20-60 °C, -20-60 °C, -20-60 °C, -20-60 °C
    • Operating Altitude : <= 3280.84 ft (1000 m) 1 % per 100 m, <= 3280.84 ft (1000 m) 1 % per 100 m<= 3280.84 ft (1000 m) 1 % per 100 m, <= 3280.84 ft (1000 m) 1 % per 100 m, <= 3280.84 ft (1000 m) 1 % per 100 m, <= 3280.84 ft (1000 m) 1 % per 100 m<= 3280.84 ft (1000 m) 1 % per 100 m, <= 3280.84 ft (1000 m) 1 % per 100 m
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 49293.48823869574
    • Circularity Profile : ENVEOLI1507014EN
    • Environmental Disclosure : ENVPEP1507014EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP54
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 0-95 %
    • Pep Code : ENVPEP1507014EN
    • Pep Verification Date : 2026-02-19
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : active harmonic filter
    • Range Of Product : AccuSine
  • ETIM
    • ETIM 8 : EC002758
    • ETIM 9 : EC002758
  • Output Attributes
    • Nominal Output Current : 60 A
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Frequency : 50/60 Hz +/- 3 Hz auto sensing
  • Specifications
    • Country of Origin : United States
    • Depth : 500 mm
