Active harmonic filter 300 amp 380-480 VAC N12 Enclosure [TAA]

AccuSine PCS+ 300A 380-480 VAC

SQDPCSP300D5N12 PCSP300D5N12 3606480851186
108381.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Active harmonic filter 300 amp 380-480 VAC N12 Enclosure [TAA]-2
  • Country of Origin: USA
  • Warranty Length: 18 mth

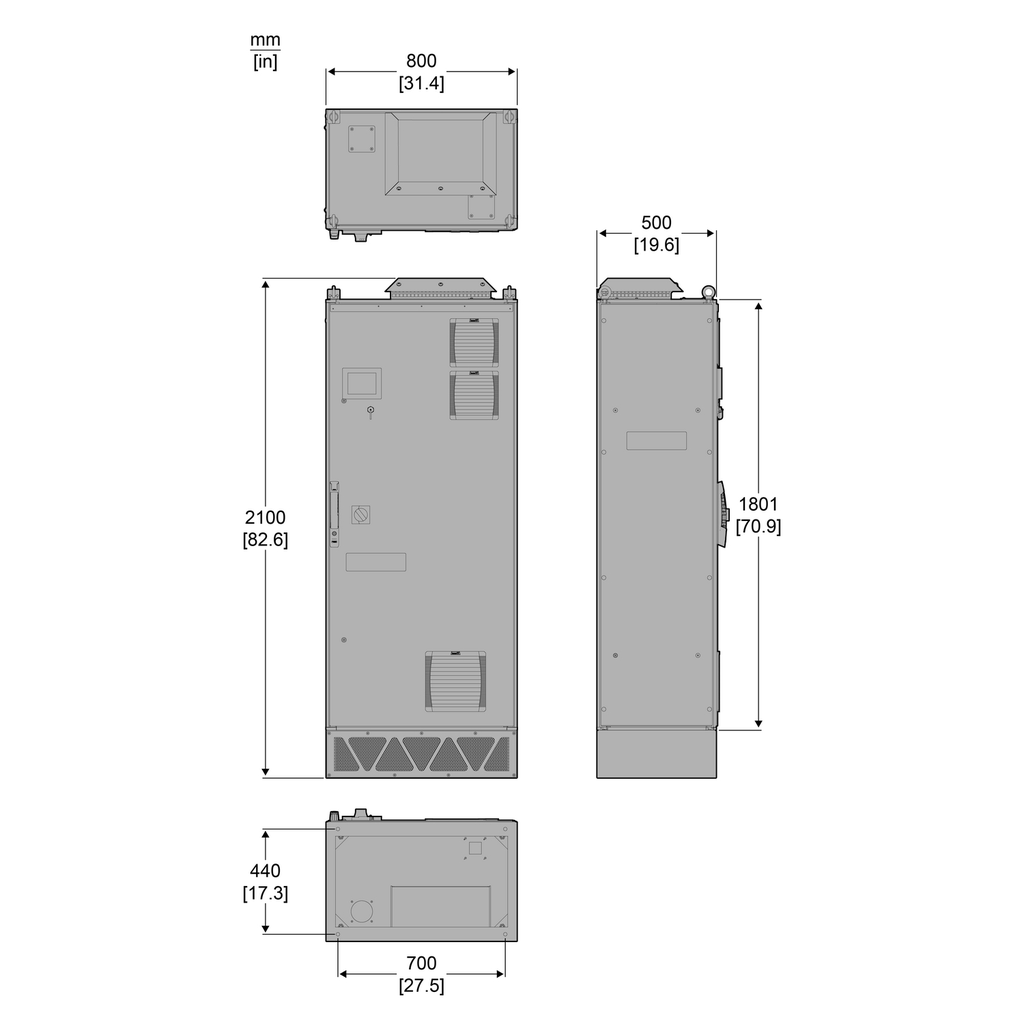

This hardware is an active power correction solution, from AccuSine family, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is UL Type 12, close to ingress protection IP54, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 300 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set. Frame exterior dimensions are 900 millimeters in width, 600 millimeters in depth, 2100 millimeters in height and product weight 436 kg.
QTY
  • Product Description
  • Features
  • Specifications
This hardware is an active power correction solution, from AccuSine family, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is UL Type 12, close to ingress protection IP54, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 300 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set. Frame exterior dimensions are 900 millimeters in width, 600 millimeters in depth, 2100 millimeters in height and product weight 436 kg.
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-back.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-back.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-bottom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-bottom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-front.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-front.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-isometric.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-isometric.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-left.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-left.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-right.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-right.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-top.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-top.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=NHA5990600&p_File_name=NHA5990600-00 LARGE ENCLOSURE 380-480V IP31-N2.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=NHA5990700&p_File_name=NHA5990700-00 LARGE ENCLOSURE 380-480V IP54-N12.dwg
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Network Rated Voltage
    • 380-480 V AC
  • Environmental Characteristic
    • operating 3C2 IEC 60721-3-3
    • operating 3S2 IEC 60721-3-3
    • storage 3C3 IEC 60721-3-3
    • storage 3S3 IEC 60721-3-3
  • Electromagnetic Compatibility
    • conducted EMC, class A EN 61000-6-4
  • Operating Altitude
    • <= 3280.84 ft (1000 m) 1 % per 100 m
  • Reactive Power Rating
    • 249 kvar 480 V AC 50/60 Hz
  • Input Frequency
    • 50/60 Hz +/- 3 Hz auto sensing
  • Color
    • Light gray RAL 7035)
  • Ambient Air Temperature For Operation
    • 0-40 °C
    • 0-50 °C maximum with current derating of 2 % per °C
  • Important Information Attributes
    • B2B Bullet Point 1 : This product is TAA,BAA via COTS compliant.
    • B2B Bullet Point 2 : Active harmonic filtering solution for industrial and heavy-duty applications
    • B2B Bullet Point 3 : Wide range of application, from paper processing to oil platforms.
    • B2B Bullet Point 4 : Harmonic cancellation up to the 51st rank will prolong your equipment life
    • B2B Bullet Point 5 : Power factor correction for better uptime and reduce penalty / maintenance cost
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-08
    • Device Type : Surge Protection and Power Conditioning - Filters & Harmonic Conditioners
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Average Life Duration : 10 year(s)
    • Service Catalog Item : Finished good
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1507014
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2523
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : L - LOB initialized
    • Enclosure Mounting : floor-standing
    • Energy Efficiency Optimized : False
    • Location Of Connection : top or bottom
    • Package Weight Lbs : 527.0 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : active harmonic filter
    • Range : AccuSine
    • Range Of Product : AccuSine
    • Returnability : No
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP1507014
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : active harmonic filter
    • Range Of Product : AccuSine
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=424633361&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1507014
    • Environmental Disclosure : ENVPEP1507014
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 0-95 %
    • Pep Code : ENVPEP1507014
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
    • Compliance : TAA | BAA via COTS
