Active harmonic filter - 300 A 380..480 V AC - IP54 enclosure [TAA]

AccuSine PCS+ 300A 380-480 VAC

SQDPCSP300D5IP54 PCSP300D5IP54 3606480851148
108381.00 / EA
http://schema.org/OutOfStock

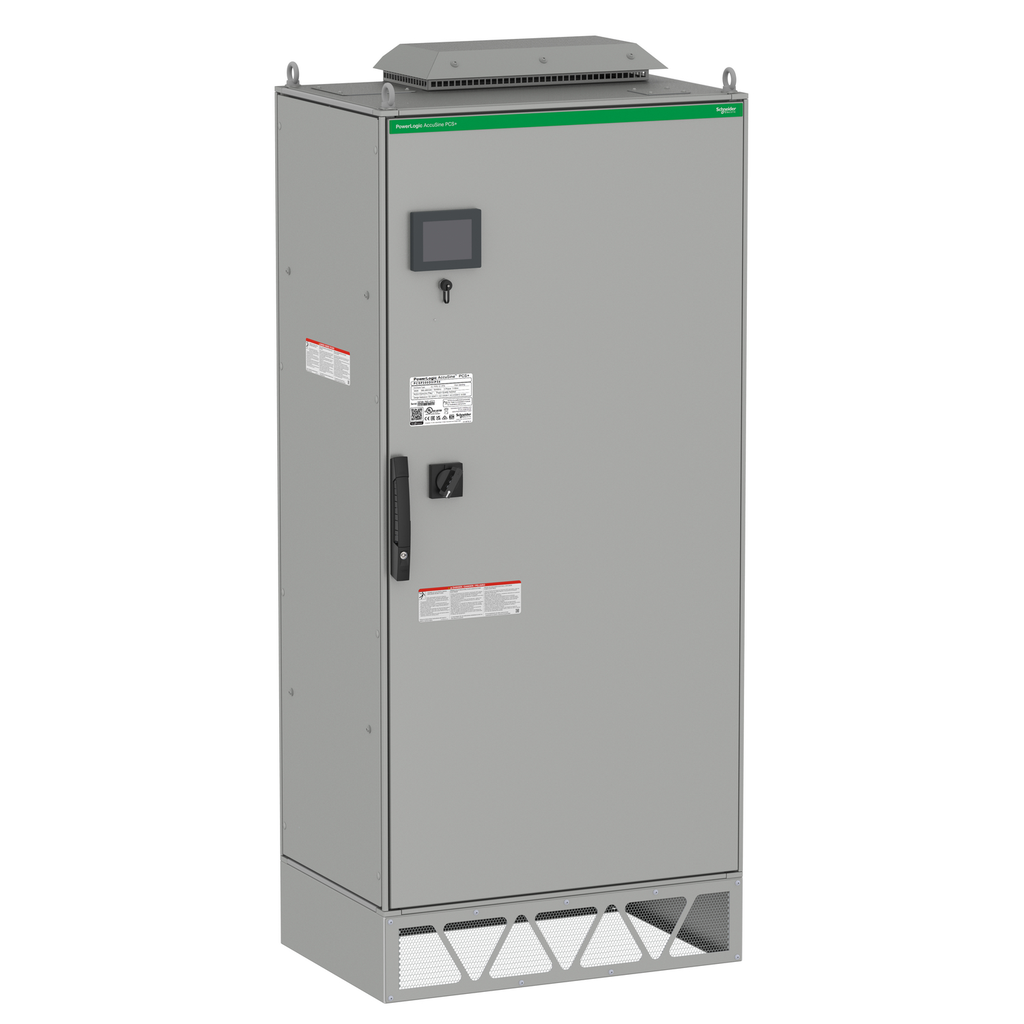

Mayer-DDS-Active harmonic filter - 300 A 380..480 V AC - IP54 enclosure [TAA]-1
  • Country of Origin: USA
  • Warranty Length: 18 mth
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is ingress protection IP54 and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 300 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set. Frame exterior dimensions are 900 millimetres in width, 600 millimetres in depth, 2100 millimetres in height and product weight 436 kg.
QTY
  • Product Description
  • Features
  • Specifications
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is ingress protection IP54 and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 300 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set. Frame exterior dimensions are 900 millimetres in width, 600 millimetres in depth, 2100 millimetres in height and product weight 436 kg.
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-back.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-back.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-bottom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-bottom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-front.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-front.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-isometric.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-isometric.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-left.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-left.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-right.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-right.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-top.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=EVCP300D5IP54_3D-CAD&p_File_name=EVCP300D5IP54_2D-top.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=NHA5990600&p_File_name=NHA5990600-00 LARGE ENCLOSURE 380-480V IP31-N2.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=NHA5990700&p_File_name=NHA5990700-00 LARGE ENCLOSURE 380-480V IP54-N12.dwg
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 27 kg CO2 eq.
    • 26.6994064748
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 4 322 kg CO2 eq.
    • 4322.2823741007
  • Network Rated Voltage
    • 380-480 V AC
  • Environmental Characteristic
    • operating 3C2 IEC 60721-3-3
    • operating 3S2 IEC 60721-3-3
    • storage 3C3 IEC 60721-3-3
    • storage 3S3 IEC 60721-3-3
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 71 732 kg CO2 eq.
    • 71731.6461008629
  • Electromagnetic Compatibility
    • conducted EMC, class A EN 61000-6-4
  • Carbon Footprint Of The Distribution Phase A4
    • 23.1986330935
    • 23 kg CO2 eq.
  • Operating Altitude
    • <= 3280.84 ft (1000 m) 1 % per 100 m
  • Reactive Power Rating
    • 249 kvar 480 V AC 50/60 Hz
  • Input Frequency
    • 50/60 Hz +/- 3 Hz auto sensing
  • Color
    • Light gray RAL 7035)
  • Ambient Air Temperature For Operation
    • 0-40 °C
    • 0-50 °C maximum with current derating of 2 % per °C
  • Important Information Attributes
    • B2B Bullet Point 1 : This product is TAA,BAA via COTS compliant.
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • Device Type : Surge Protection and Power Conditioning - Filters & Harmonic Conditioners
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Average Life Duration : 10 year(s)
    • Service Catalog Item : Finished good
    • Manufacturing Carbon Footprint : 4322.2823741007
    • Distribution Carbon Footprint : 23.1986330935
    • Installation Carbon Footprint : 0
    • Use Carbon Footprint : 71731.6461008629
    • End Of Life Carbon Footprint : 26.6994064748
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1507014_V1
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2523
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Enclosure Mounting : floor-standing
    • Energy Efficiency Optimized : False
    • Location Of Connection : top or bottom
    • Package Weight Lbs : 527.000 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : active harmonic filter
    • Range : AccuSine
    • Range Of Product : AccuSine
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 76 104 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 76103.826514532
    • Pep Code : ENVPEP1507014_V1
    • Pep Verification Date : 2018-11-01
    • PCR Version : PCR-ed2
    • Product Weight In G : 405000
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 404687.9
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Installation A5 : ELCD_Electricity_mix_<1kV_EU-27__ELCD-0089
    • Energy Model Use B6 : ELCD_Electricity_mix_<1kV_EU-27__ELCD-0089
    • Energy Model End Of Life C1 C4 : ELCD_Electricity_mix_<1kV_EU-27__ELCD-0089
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 69.6347532702
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 57.329352518
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.0000286588
    • Hazardous Waste Disposed Of Kg Installation A5 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 12.3053390567
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0000330366
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0169885179
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0006460478
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000439
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0163423756
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000506
    • Air Pollution M3 Total Life Cycle : 21706751834.0851
    • Air Pollution M3 Manufacturing A1 A3 : 3729642086.330935
    • Air Pollution M3 Distribution A4 : 6470821.942446044
    • Air Pollution M3 Installation A5 : 0
    • Air Pollution M3 Operational Energy Use B6 : 17962836411.42323
    • Air Pollution M3 End Of Life C1 C4 : 7802514.388489209
    • Water Pollution M3 Total Life Cycle : 34560.0056516484
    • Water Pollution M3 Manufacturing A1 A3 : 2602.6348920863
    • Water Pollution M3 Distribution A4 : 9.8970053957
    • Water Pollution M3 Installation A5 : 0
    • Water Pollution M3 Operational Energy Use B6 : 31936.0644088427
    • Water Pollution M3 End Of Life C1 C4 : 11.4093453237
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 6.3437007428
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 1.1088955779
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 76103.826514532
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 4322.2823741007
    • Global Warming Kg Equivalent Co2 Distribution A4 : 23.1986330935
    • Global Warming Kg Equivalent Co2 Installation A5 : 0
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 71731.6461008629
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 26.6994064748
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 1.898692446
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0059789946
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 4.4323838058
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0066454964
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.4269107914
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000430203
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.6818921712
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.000049595
  • General Attributes
    • Product Or Component Type : active harmonic filter
    • Range Of Product : AccuSine
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=424633359&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 76103.826514532
    • Circularity Profile : ENVEOLI1507014_V1
    • Environmental Disclosure : ENVPEP1507014_V1
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 0-95 %
    • Pep Code : ENVPEP1507014_V1
    • Pep Verification Date : 2018-11-01
    • PCR Version : PCR-ed2
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
    • Compliance : TAA | BAA via COTS
