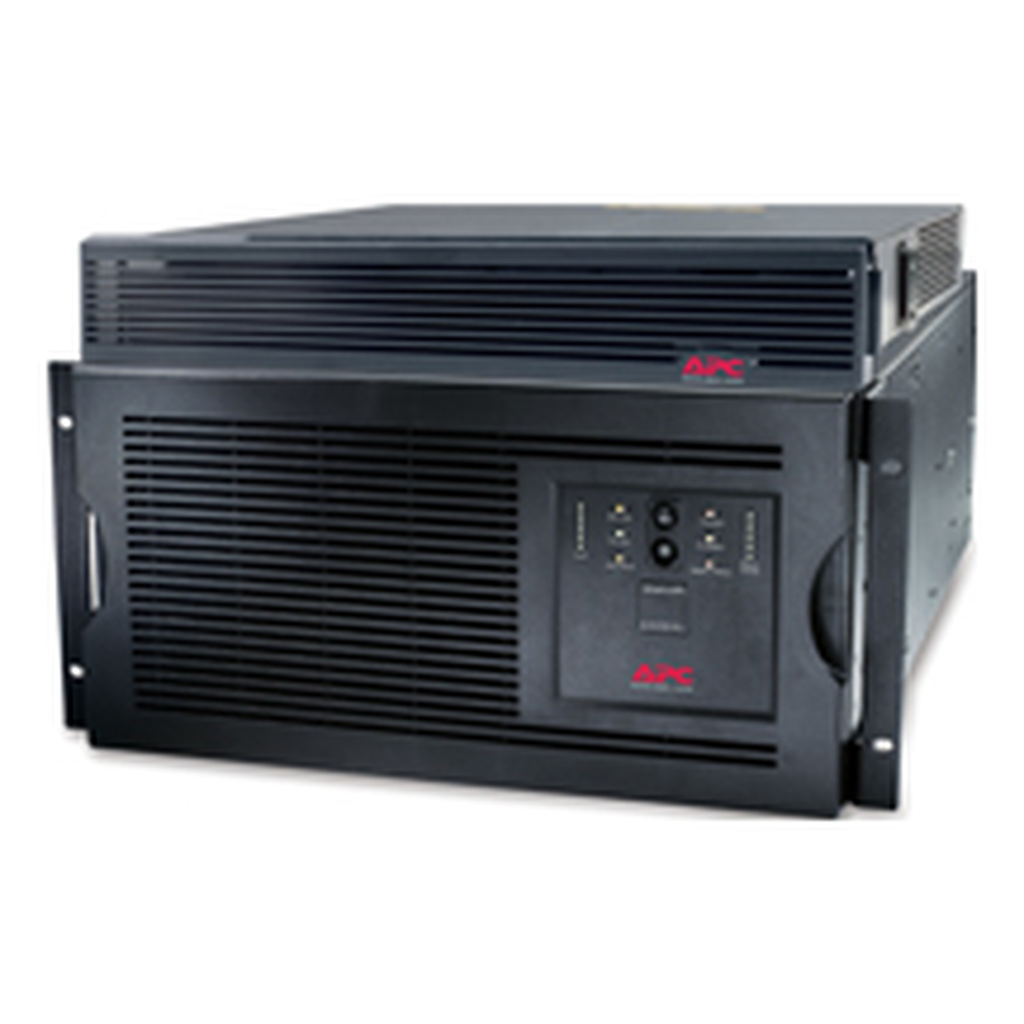

The APC Smart-UPS includes a transformer and supports 208V input and 120 and 208V output. It has a power capacity of 5000VA and 4000 watts. The UPS features multiple output connections, including 12 NEMA 5-20R, 2 NEMA L6-20R, and 1 NEMA L6-30R. It uses a lead-acid battery.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Communications & Management Attributes
• Alarm : alarm when on battery : distinctive low battery alarm : configurable delays
• Physical Attributes
• Color : Black
• Complementary Attributes
• Curve Load Maximum : 100 %
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Maximum Configurable Power In VA : 5000 VA
• Important Information Attributes
• Persona Type Ids : EUA, PB, SC, VR
• Persona Type Names : Consumer, Panel Builder, Electrician, IT Channel Partner
• Market Segmentation Id : RESIDENTIAL, COMMERCIAL, INDUSTRIAL
• Market Segmentation : Residential, Commercial, Industrial
• Efficiency At Full Load : 151...268 V adjustable, 157...255 V, 95 % full load)
• Output Connection Type : 12 NEMA5-20R, 2 NEMAL6-20R, 1 NEMAL6-30R
• Provided Equipment : User Manual, Smart UPS signalling RS-232 cable, Rack Mounting support rails, CD with software
• Size Ups Version : Internetworking, Server, Telecom
• Ups Connectivity : serial port, USB port, pre-installed network management card 3
• Output Frequency Sync To Mains : 47...53 Hz for 50 Hz nominal sync to mains, 57...63 Hz for 60 Hz nominal sync to mains
• Carbon Footprint Of The Distribution Phase A4 : 0.0571053926, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 15 kg CO2 eq., 15.2020668106
• Carbon Footprint Of The Installation Phase A5 : 64.885944146, 65 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 5 483 kg CO2 eq., 5482.7913330596
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 8 065 kg CO2 eq., 8064.6651853925
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-09
• Device Type : UPS - Network and Server
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : SPIBS
• Average Life Duration : 5 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1612029_EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : L - LOB initialized
• Dangerous Goods Code : BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID)
• Function Option Id : STANDARD
• Function Option : Standard
• Curve Equation : efficiency
• Curve Load Maximum : 100 %
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve X Axis Title : load
• Curve X Axis Units : percentage
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Curve Y Axis Title : efficiency
• Curve Y Axis Units : percentage
• Energy Efficiency Optimized : False
• Equipment Protection Policy : Lifetime : $150000
• Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
• Input Connection Type : NEMA L6-30P
• Maximum Configurable Power In VA : 5000 VA
• Mounting Mode : rack-mounted with included kit
• Mounting Preference : lower
• Number Of Rack Unit : 7U
• Number Of Tare Power : 75 W
• Package Weight Lbs : 161.36 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Smart-UPS
• Redundant : No
• Returnability : Yes
• Show Note Op Temperature : No
• Surge Energy Rating : 1020 J
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 13 628 kg CO2 eq.
• Transfer Time : 2ms typical
• Typical Recharge Time : 3 h
• Ups Size : S
• Usb Compatible : No
• Waveform Type : Sine wave
• Emergency Power Off EPO : Optional
• Max Configurable Power Watts : 4000 W
• Pre Installed Smartslot Trade Cards : network management card
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1612029EN
• Pep Verification Date : 2025-10-25
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : BALASUBRAMANI HARI
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : Yes
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 13627.6016348014
• Circularity Profile : ENVEOLI1612029_EN
• Environmental Disclosure : ENVPEP1612029EN
• Online Thermal Dissipation : 1708 Btu/h
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 %
• Storage Altitude : 0-50000 ft
• Storage Relative Humidity : 0-95 %
• Pep Code : ENVPEP1612029EN
• Pep Verification Date : 2025-10-25
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Provided Equipment : User Manual, Smart UPS signalling RS-232 cable, Rack Mounting support rails, CD with software
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Smart-UPS
• Output Attributes
• Output Voltage : 208 V AC 1 phase, 208 V
• Harmonic Distortion : less than 5 % at full load
• Surge Protection And Filtering Attributes
• Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
• Surge Energy Rating : 1020 J
• Contractual Warranty Attributes
• Warranty Period : 2 years repair or replace, optional on-site warranties available, optional extended warranties available
• Warranty : 2 years repair or replace, optional on-site warranties available, optional extended warranties available
• Input Attributes
• Efficiency At Full Load : 151...268 V adjustable, 157...255 V, 95 % full load)
• Input Frequency : 50/60 Hz +/- 5 Hz auto-sensing
• Main Input Voltage : 208 V AC 1 phase
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE
• Battery Curve : B
• Battery Power In VAH : 1632 VAh runtime
• Battery Size : lead-acid internal included
• Battery Slots Empty : 0
• Included Battery Modules : 0
• Battery Charge Power Watts : 542 W rated
