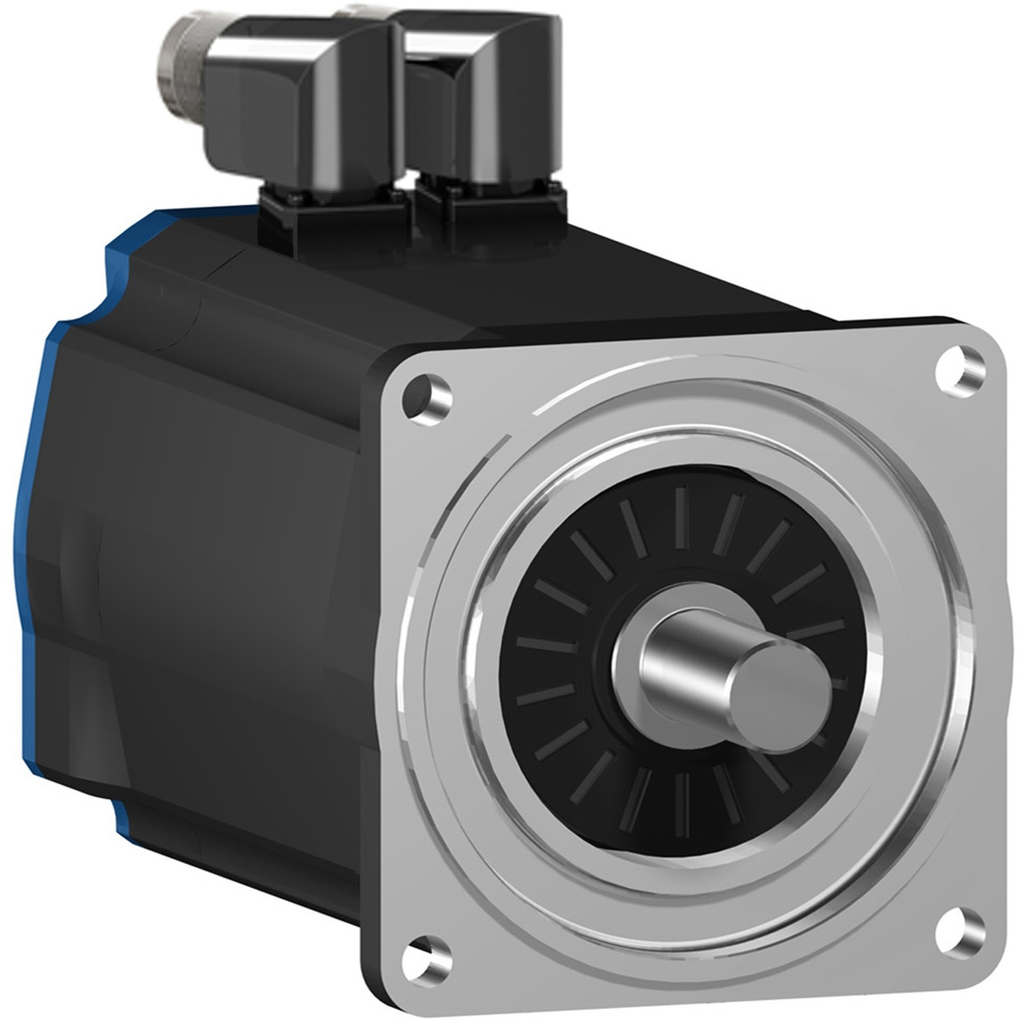

AC servo motor BSH - 7.8 N.m - 2500 rpm - untapped shaft - without brake - IP50

motor 100 IP40 smooth abs nobr

SQDBSH1003P02A2A BSH1003P02A2A 338911814009
0.00 / EA
  • Length: 240.5 mm
  • Mounting Hole Size: 115 mm, 9 mm
  • Net Weight: 7.4 kg
  • Number of Holes: 4
  • Number of Phases: 3
  • Number of Poles: 8
  • Shaft Length: 40 mm
  • Warranty Length: 18 mth
  • Specifications
  • Complementary
    • Stator Resistance : 1.43 Ohm 20 °C
    • Maximum Current Irms : 28.3 A LXM15LD21M3 || 28.3 A LXM05BD42M3X || 28.3 A LXM05BD34N4 || 28.3 A LXM05CD28M2 || 28.3 A LXM05CD42M3X || 28.3 A LXM05CD34N4 || 28.3 A LXM32.D30N4 || 28.3 A LXM15LD28M3 || 28.3 A LXM15LD17N4 || 28.3 A LXM15MD28N4 || 28.3 A LXM15MD40N4 || 28.3 A LXM05AD28M2 || 28.3 A LXM05AD42M3X || 28.3 A LXM05AD34N4 || 28.3 A LXM05BD28M2
    • Stator Inductance : 8.8 mH 20 °C
    • [Us] Rated Supply Voltage : 480 V
    • Rotor Inertia : 3.22 kg.cm²
    • Length : 240.5 mm
    • Torque Constant : 1.22 N.m/A 120 °C
    • Second Shaft : without second shaft end
    • Centring Collar Diameter : 95 mm
    • Continuous Stall Current : 6.6 A
    • Shaft Length : 40 mm
    • Phase : three phase
    • Shaft Diameter : 19 mm
    • Number Of Mounting Holes : 4
    • Net Weight : 7.4 kg
    • Feedback Type : multiturn SinCos Hiperface
    • Motor Flange Size : 100 mm
    • Type Of Cooling : natural convection
    • Centring Collar Depth : 3.5 mm
    • Range Compatibility : Lexium 05 || Lexium 32 || Lexium 15
    • Switching Frequency : 8 kHz
    • Back Emf Constant : 77 V/krpm 120 °C
    • Mounting Holes Diameter : 9 mm
    • Stator Electrical Time Constant : 6.15 ms 20 °C
    • Maximum Radial Force Fr : 1050 N 1000 rpm || 660 N 4000 rpm || 730 N 3000 rpm || 830 N 2000 rpm
    • Maximum Axial Force Fa : 0.2 x Fr
    • Number Of Motor Stacks : 3
    • Maximum Permanent Current : 28.3 A
    • Continuous Power : 3.14 W
    • Number Of Motor Poles : 8
    • Circle Diameter Of The Mounting Holes : 115 mm
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP111049EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Sustainable Offer Status : Green Premium product
    • China Rohs Regulation : X
    • Pvc Free : Yes
  • Contractual warranty
    • Warranty : 18 months
  • Speed Feedback Resolution : 131072 points/turn x 4096 turns
  • Nominal Torque : 6.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 5 N.m LXM15MD28N4, 400 V, three phase || 5 N.m LXM15MD40N4, 400 V, three phase || 5.7 N.m LXM05AD34N4, 380...480 V, three phase || 5.7 N.m LXM05BD34N4, 380...480 V, three phase || 5.7 N.m LXM05CD34N4, 380...480 V, three phase || 6 N.m LXM15LD17N4, 230 V, three phase || 6 N.m LXM15LD21M3, 230 V, three phase || 6.3 N.m LXM15LD28M3, 230 V, three phase || 6.73 N.m LXM05AD42M3X, 200...240 V, three phase || 6.73 N.m LXM05BD42M3X, 200...240 V, three phase || 6.3 N.m LXM32.D30N4 10 A, 480 V, three phase || 6.73 N.m LXM05CD42M3X, 200...240 V, three phase || 3.7 N.m LXM15LD17N4, 480 V, three phase || 6.73 N.m LXM05AD28M2, 200...240 V, single phase || 6.73 N.m LXM05BD28M2, 200...240 V, single phase || 6.73 N.m LXM05CD28M2, 200...240 V, single phase || 4.6 N.m LXM15MD28N4, 480 V, three phase || 4.6 N.m LXM15MD40N4, 480 V, three phase || 4.7 N.m LXM15LD17N4, 400 V, three phase
  • Mounting Support : international standard flange
  • Electrical Connection : rotatable right-angled connectors
  • Device Short Name : BSH
  • Peak Stall Torque : 28.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 19.69 N.m LXM15LD28M3, 230 V, three phase || 19.69 N.m LXM15MD28N4, 400 V, three phase || 19.69 N.m LXM15MD28N4, 480 V, three phase || 23.17 N.m LXM15MD40N4, 400 V, three phase || 23.17 N.m LXM15MD40N4, 480 V, three phase || 23.01 N.m LXM05AD34N4, 380...480 V, three phase || 23.17 N.m LXM05AD42M3X, 200...240 V, three phase || 23.01 N.m LXM05BD34N4, 380...480 V, three phase || 23.17 N.m LXM05BD42M3X, 200...240 V, three phase || 23.01 N.m LXM05CD34N4, 380...480 V, three phase || 28.3 N.m LXM32.D30N4 10 A, 480 V, three phase || 23.17 N.m LXM05CD42M3X, 200...240 V, three phase || 19.69 N.m LXM05AD28M2, 200...240 V, single phase || 19.69 N.m LXM05BD28M2, 200...240 V, single phase || 19.69 N.m LXM05CD28M2, 200...240 V, single phase || 15.5 N.m LXM15LD21M3, 230 V, three phase || 12.5 N.m LXM15LD17N4, 230 V, three phase || 12.5 N.m LXM15LD17N4, 400 V, three phase || 12.5 N.m LXM15LD17N4, 480 V, three phase
  • Shaft End : untapped
  • Continuous Stall Torque : 8 N.m LXM32.D30N4 10 A, 400 V, three phase || 6.7 N.m LXM15LD21M3, 230 V, three phase || 6.7 N.m LXM15LD17N4, 230 V, three phase || 6.7 N.m LXM15LD17N4, 400 V, three phase || 6.7 N.m LXM15LD17N4, 480 V, three phase || 7.8 N.m LXM15LD28M3, 230 V, three phase || 7.8 N.m LXM15MD28N4, 400 V, three phase || 7.8 N.m LXM15MD28N4, 480 V, three phase || 7.8 N.m LXM15MD40N4, 400 V, three phase || 7.8 N.m LXM15MD40N4, 480 V, three phase || 7.8 N.m LXM05AD34N4, 380...480 V, three phase || 8 N.m LXM32.D30N4 10 A, 480 V, three phase || 7.8 N.m LXM05AD42M3X, 200...240 V, three phase || 7.8 N.m LXM05CD28M2, 200...240 V, single phase || 7.8 N.m LXM05AD28M2, 200...240 V, single phase || 7.8 N.m LXM05BD28M2, 200...240 V, single phase || 7.8 N.m LXM05BD34N4, 380...480 V, three phase || 7.8 N.m LXM05BD42M3X, 200...240 V, three phase || 7.8 N.m LXM05CD34N4, 380...480 V, three phase || 7.8 N.m LXM05CD42M3X, 200...240 V, three phase
  • Holding Brake : without
  • Product Compatibility : LXM05AD28M2 200...240 V single phase || LXM15LD17N4 480 V three phase || LXM15LD28M3 230 V three phase || LXM05AD34N4 380...480 V three phase || LXM05BD34N4 380...480 V three phase || LXM05CD34N4 380...480 V three phase || LXM15MD28N4 400 V three phase || LXM15MD28N4 480 V three phase || LXM15MD40N4 400 V three phase || LXM15MD40N4 480 V three phase || LXM32.D30N4 400 V three phase || LXM05BD28M2 200...240 V single phase || LXM32.D30N4 480 V three phase || LXM05CD28M2 200...240 V single phase || LXM15LD21M3 230 V three phase || LXM05AD42M3X 200...240 V three phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase || LXM15LD17N4 230 V three phase || LXM15LD17N4 400 V three phase
  • Maximum Mechanical Speed : 6000 rpm
  • Product Or Component Type : servo motor
  • Ip Degree Of Protection : IP50 standard
  • Nominal Output Power : 2000 W LXM32.D30N4 10 A, 400 V, three phase || 1700 W LXM15LD17N4, 230 V, three phase || 1700 W LXM15LD21M3, 230 V, three phase || 1800 W LXM05AD34N4, 380...480 V, three phase || 1800 W LXM05BD34N4, 380...480 V, three phase || 1800 W LXM05CD34N4, 380...480 V, three phase || 2000 W LXM15MD28N4, 400 V, three phase || 2000 W LXM15MD40N4, 400 V, three phase || 2200 W LXM15LD17N4, 400 V, three phase || 2200 W LXM15MD28N4, 480 V, three phase || 2200 W LXM15MD40N4, 480 V, three phase || 2600 W LXM32.D30N4 10 A, 480 V, three phase || 2300 W LXM15LD17N4, 480 V, three phase || 1100 W LXM05AD28M2, 200...240 V, single phase || 1100 W LXM05BD28M2, 200...240 V, single phase || 1100 W LXM05CD28M2, 200...240 V, single phase || 1100 W LXM05AD42M3X, 200...240 V, three phase || 1100 W LXM05BD42M3X, 200...240 V, three phase || 1100 W LXM05CD42M3X, 200...240 V, three phase || 1300 W LXM15LD28M3, 230 V, three phase
  • Nominal Speed : 3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 1500 rpm LXM05CD42M3X, 200...240 V, three phase || 2000 rpm LXM15LD28M3, 230 V, three phase || 2500 rpm LXM15LD17N4, 230 V, three phase || 2500 rpm LXM15LD21M3, 230 V, three phase || 3000 rpm LXM05AD34N4, 380...480 V, three phase || 3000 rpm LXM05BD34N4, 380...480 V, three phase || 3000 rpm LXM05CD34N4, 380...480 V, three phase || 4000 rpm LXM15MD28N4, 400 V, three phase || 4000 rpm LXM15MD40N4, 400 V, three phase || 4500 rpm LXM15MD28N4, 480 V, three phase || 4000 rpm LXM32.D30N4 10 A, 480 V, three phase || 4500 rpm LXM15MD40N4, 480 V, three phase || 4500 rpm LXM15LD17N4, 400 V, three phase || 6000 rpm LXM15LD17N4, 480 V, three phase || 1500 rpm LXM05AD28M2, 200...240 V, single phase || 1500 rpm LXM05BD28M2, 200...240 V, single phase || 1500 rpm LXM05CD28M2, 200...240 V, single phase || 1500 rpm LXM05AD42M3X, 200...240 V, three phase || 1500 rpm LXM05BD42M3X, 200...240 V, three phase
