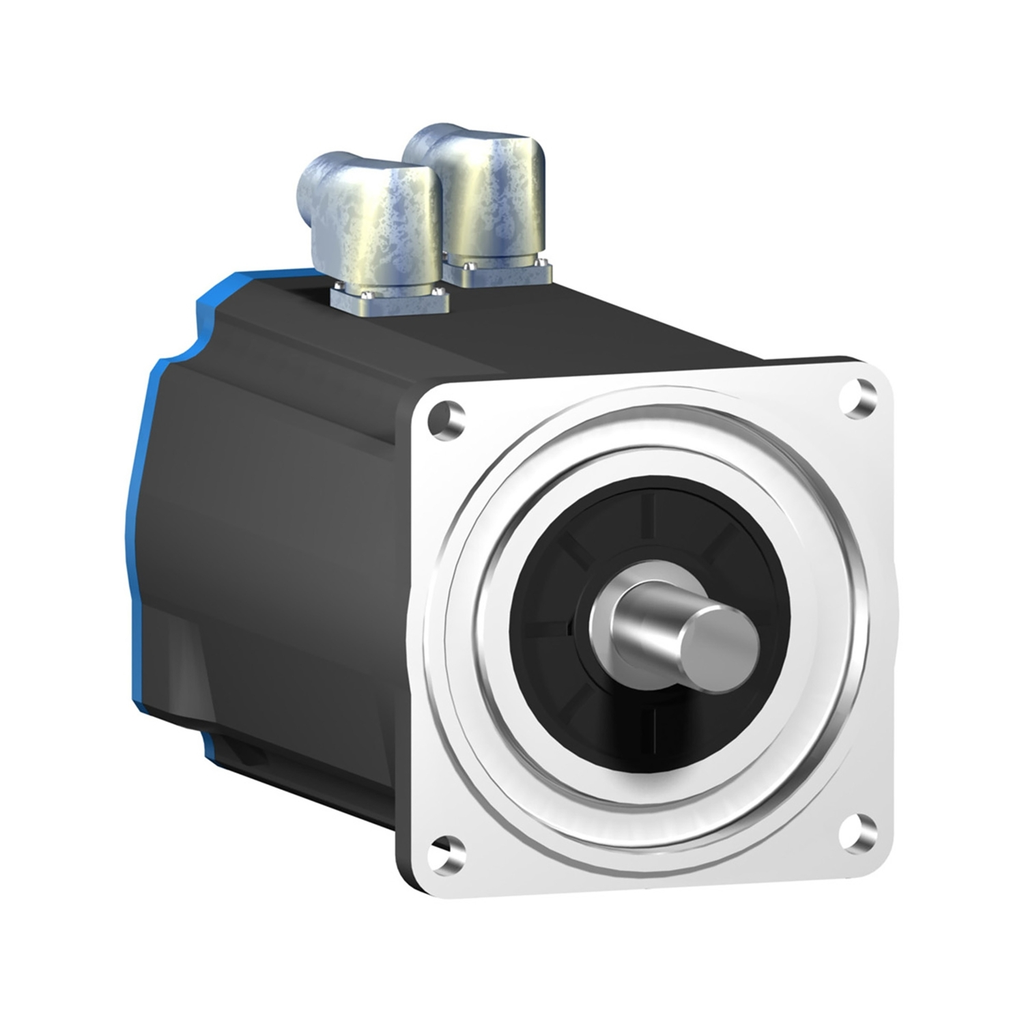

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is an AC servo motor that features a maximum mechanical speed of 3000RPM, an untapped shaft end, without holding brake. It is equipped with a multi-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 21.3A, a continuous power of 4.33W, and a continuous stall torque of 32.1Nm. Its degree of protection is IP50 rated. The motor flange size is 140mm, fixed by 4x 11mm holes. The circle diameter of the mounting holes is 165mm. It weighs 27.8kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AD72N4, LXM32SD72N4, LXM32MD72N4, and LXM32CD72N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Circle Diameter Of The Mounting Holes : 165 mm
• Maximum Permanent Current : 95.6 A
• Continuous Power : 4.33 W
• Temperature Magnet Hot : 100 °C
• Switching Frequency : 8 kHz
• Stator Electrical Time Constant : 13.93 ms 20 °C
• Holding Torque : 36 N.m holding brake
• Maximum Radial Force Fr : 1840 N 3000 rpm || 2110 N 2000 rpm || 2660 N 1000 rpm
• Number Of Motor Stacks : 4
• Rotor Inertia : 29.2 kg.cm²
• Number Of Motor Poles : 5.0
• Back Emf Constant : 104 V/krpm 120 °C
• Maximum Axial Force Fa : 0.2 x Fr
• Centring Collar Depth : 3.5 mm
• Second Shaft : without second shaft end
• Shaft Length : 50 mm
• Brake Pull-In Power : 26 W
• Phase : three phase
• Length : 420.5 mm
• Maximum Current Irms : 72 A LXM32.D72N4 || 95.6 A LXM05AD57N4 || 95.6 A LXM05BD57N4 || 95.6 A LXM05CD57N4
• Net Weight : 27.8 kg
• Sizing Reference : BSH1404P
• Centring Collar Diameter : 130 mm
• Stator Inductance : 2.035 mH 20 °C
• Motor Flange Size : 140 mm
• [Us] Rated Supply Voltage : 480 V
• Number Of Mounting Holes : 4
• Shaft Diameter : 24 mm
• Mounting Holes Diameter : 11 mm
• Type Of Cooling : natural convection
• Accuracy Error [Angular] : 1.4 °
• Feedback Type : multiturn SinCos Hiperface
• Stator Resistance : 0.28 Ohm 20 °C
• Range Compatibility : Lexium 05 || Lexium 32
• Continuous Stall Current : 21.3 A
• Temperature Magnet Rt : 20 °C
• Network Number Of Phases : 3
• Torque Constant : 1.57 N.m/A 120 °C
• Temperature Copper Hot : 120 °C
• Specifications
• Country of Origin : Germany
• Length : 420.5 mm
• Weight : 27.8 kg
• Maximum Mechanical Speed : 4000 rpm
• Mounting Support : international standard flange
• Holding Brake : with
• Speed Feedback Resolution : 131072 points/turn x 4096 turns
• Product Or Component Type : servo motor
• Nominal Output Power : 5000 W LXM32.D72N4 24 A, 400 V, three phase || 5000 W LXM32.D72N4 24 A, 480 V, three phase || 3400 W LXM05AD57N4, 380...480 V, three phase || 3400 W LXM05BD57N4, 380...480 V, three phase || 3400 W LXM05CD57N4, 380...480 V, three phase
• Peak Stall Torque : 103.6 N.m LXM32.D72N4 24 A, 400 V, three phase || 103.6 N.m LXM32.D72N4 24 A, 480 V, three phase || 63.09 N.m LXM05AD57N4, 380...480 V, three phase || 63.09 N.m LXM05BD57N4, 380...480 V, three phase || 63.09 N.m LXM05CD57N4, 380...480 V, three phase
• Product Compatibility : LXM05AD57N4 380...480 V three phase || LXM05BD57N4 380...480 V three phase || LXM05CD57N4 380...480 V three phase || LXM32.D72N4 400 V three phase || LXM32.D72N4 480 V three phase
• Ip Degree Of Protection : IP50 standard
• Shaft End : untapped
• Nominal Speed : 2500 rpm LXM32.D72N4 24 A, 400 V, three phase || 2500 rpm LXM32.D72N4 24 A, 480 V, three phase || 3000 rpm LXM05AD57N4, 380...480 V, three phase || 3000 rpm LXM05BD57N4, 380...480 V, three phase || 3000 rpm LXM05CD57N4, 380...480 V, three phase
• Electrical Connection : rotatable right-angled connectors
• Nominal Torque : 19 N.m LXM32.D72N4 24 A, 400 V, three phase || 19 N.m LXM32.D72N4 24 A, 480 V, three phase || 10.8 N.m LXM05AD57N4, 380...480 V, three phase || 10.8 N.m LXM05BD57N4, 380...480 V, three phase || 10.8 N.m LXM05CD57N4, 380...480 V, three phase
• Device Short Name : BSH
• Continuous Stall Torque : 33.4 N.m LXM32.D72N4 24 A, 400 V, three phase || 33.4 N.m LXM32.D72N4 24 A, 480 V, three phase || 32.1 N.m LXM05AD57N4, 380...480 V, three phase || 32.1 N.m LXM05BD57N4, 380...480 V, three phase || 32.1 N.m LXM05CD57N4, 380...480 V, three phase
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP111049EN
• Packaging Without Single Use Plastic : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : N/A
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 5382.0617901829
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 144.9518378378
• Carbon Footprint Of The Distribution Phase [A4] : 4 kg CO2 eq.
• Pvc Free : Yes
• Carbon Footprint Of The Installation Phase [A5] : 0.3 kg CO2 eq.
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 5 535 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 3.119987027
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 5534.6991016964
• Contractual warranty
• Warranty : 18 months
