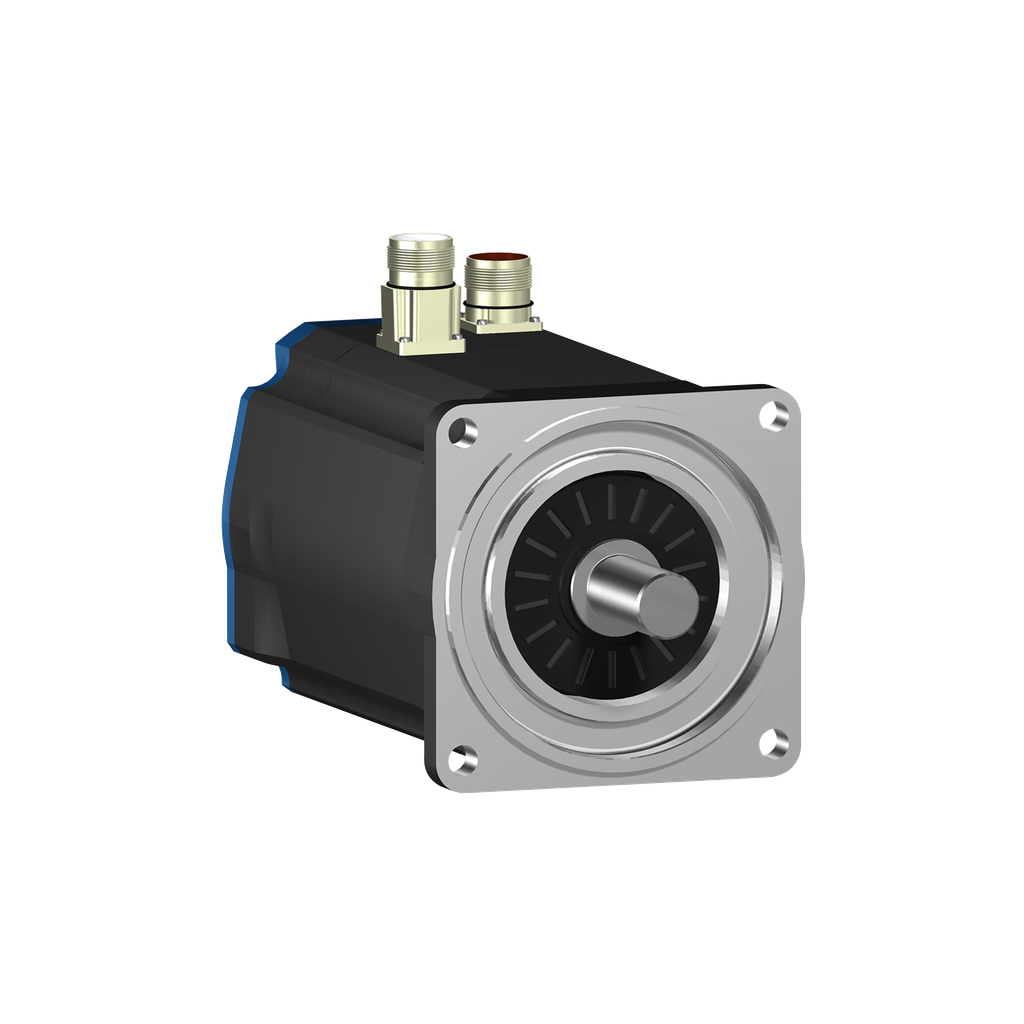

servo motor BSH, Lexium 32, 32.1N.m, 3000rpm, 140mm, keyed shaft, Sincos single turn, with brake, IP65, straight

motor 140 IP65 keyed inc brk s

SQDBSH1404P31F1P BSH1404P31F1P 3389118361652
4763.51 / EA
http://schema.org/OutOfStock
servo motor BSH, Lexium 32, 32.1N.m, 3000rpm, 140mm, keyed shaft, Sincos single turn, with brake, IP65, straight
  • Shaft Diameter: 24 mm
  • Shaft End: Keyed
  • Shaft Length: 50 mm
  • Warranty Length: 18 mth
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole AC servo motor features maximum mechanical speed of 4000RPM and keyed shaft end with holding brake. It is an equipped with a single-turn SinCos Hiperface® feedback with 1,31,072 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 21.3A and a continuous power of 4.33W. The shaft dimensions are 24mm (diameter) x 50mm (length). It is furnished with straight connectors for electrical connection. It is an IP65 and IP67 rated product. The length of this product is 420.5mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 27.8kg. This range is compatible with Lexium 32 and Lexium 05 servo drives. This product is compatible with LXM05AD57N4 at 380V to 480V three phase. It supports 140mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Key Width : 40 mm
    • Motor Flange Size : 140 mm
    • Shaft Length : 50 mm
  • Complementary Attributes
    • Maximum Current IRMS : 72 A LXM32.D72N4, 95.6 A LXM05AD57N4, 95.6 A LXM05BD57N4, 95.6 A LXM05CD57N4, 95.6 A
    • Maximum Radial Force FR : 1840 N 3000 rpm, 2110 N 2000 rpm, 2660 N 1000 rpm
    • Maximum Ambient Air Temperature For Operation : 60.0 °C
    • Maximum Mechanical Speed : 4000 rpm
    • Maximum Operational Altitude : 3000.0 m
    • Minimum Ambient Air Temperature For Operation : -20.0 °C
    • Minimum Operational Altitude : 0.0 m
    • Maximum In Rated Current : 11.0 A
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Continuous Stall Torque : 33.4 N.m LXM32.D72N4 24 A, 400 V, three phase, 33.4 N.m LXM32.D72N4 24 A, 480 V, three phase, 32.1 N.m LXM05AD57N4, 380...480 V, three phase, 32.1 N.m LXM05BD57N4, 380...480 V, three phase, 32.1 N.m LXM05CD57N4, 380...480 V, three phase
    • Inertia : 5.5 kg.cm² of brake, 23.7 kg.cm² of motor
    • Nominal Speed : 2500 rpm LXM32.D72N4 24 A, 400 V, three phase, 2500 rpm LXM32.D72N4 24 A, 480 V, three phase, 3000 rpm LXM05AD57N4, 380...480 V, three phase, 3000 rpm LXM05BD57N4, 380...480 V, three phase, 3000 rpm LXM05CD57N4, 380...480 V, three phase
    • Nominal Torque : 16.1 N.m full speed, 24.75 N.m half speed, 19 N.m LXM32.D72N4 24 A, 400 V, three phase, 19 N.m LXM32.D72N4 24 A, 480 V, three phase, 10.8 N.m LXM05AD57N4, 380...480 V, three phase, 10.8 N.m LXM05BD57N4, 380...480 V, three phase, 10.8 N.m LXM05CD57N4, 380...480 V, three phase
    • Peak Stall Torque : 103.6 N.m LXM32.D72N4 24 A, 400 V, three phase, 103.6 N.m LXM32.D72N4 24 A, 480 V, three phase, 63.09 N.m LXM05AD57N4, 380...480 V, three phase, 63.09 N.m LXM05BD57N4, 380...480 V, three phase, 63.09 N.m LXM05CD57N4, 380...480 V, three phase
    • Carbon Footprint Of The Distribution Phase A4 : 2.6577542998, 3 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 1.9411577396
    • Carbon Footprint Of The Installation Phase A5 : 0.1827478133, 0.2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 90 kg CO2 eq., 90.1844717445
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 5 382 kg CO2 eq., 5382.0617901829
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-25
    • Device Type : Motion - drive & motor
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Brake Pull In Power : 26 W
    • Centring Collar Diameter : 130 mm
    • Circle Diameter Of The Mounting Holes : 165 mm
    • Coefficient 1 1 : -0.00576666666666 N.m/rpm
    • Coefficient 1 2 : -1.9464694685851E-17 N.m/rpm²
    • Coefficient 1 3 : 2.1479766618E-20 N.m/rpm3
    • Coefficient 1 4 : -1.0776504E-23 N.m/rpm4
    • Coefficient 1 5 : 2.487E-27 N.m/rpm5
    • Coefficient 1 6 : 0 N.m/rpm6
    • Continuous Stall Current : 21.3 A
    • Derating Altitude Scale : 80.0 m
    • Derating Altitude Start : 1000.0 m
    • Derating Temperature Scale : 80.0 °C
    • Derating Temperature Start : 40.0 °C
    • Device Short Name : BSH
    • Feedback Type : single turn SinCos Hiperface
    • Holding Brake : with
    • Holding Torque : 36 N.m holding brake
    • Maximum Operational Altitude : 3000.0 m
    • Minimum Ambient Air Temperature For Operation : -20.0 °C
    • Minimum Operational Altitude : 0.0 m
    • Motor Figures : 400.0 V
    • Mounting Holes Diameter : 11 mm
    • Package Weight Lbs : 20.6 kg
    • Peak Nominal Torque : 131.9 N.m
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : servo motor
    • Returnability : No
    • Second Shaft : without second shaft end
    • Shaft Diameter : 24 mm
    • Shaft End : keyed
    • Sizing Reference : BSH1404P
    • Stator Electrical Time Constant : 13.93 ms 20 °C
    • Stator Inductance : 2.035 mH 20 °C
    • Stator Resistance : 0.28 Ohm 20 °C
    • Sustainable Packaging : No
    • Temperature Copper Hot : 120 °C
    • Temperature Magnet Hot : 100 °C
    • Temperature Magnet RT : 20 °C
    • Torque Constant : 1.57 N.m/A 120 °C
    • Total Lifecycle Carbon Footprint : 5 477 kg CO2 eq.
    • Maximum In Rated Current : 11.0 A
    • Pep Code : ENVPEP111049EN
    • Pep Verification Date : 2020-08-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP65 standard, IP67 with IP67 kit
    • Product Compatibility : LXM05AD57N4 380...480 V three phase, LXM05BD57N4 380...480 V three phase, LXM05CD57N4 380...480 V three phase, LXM32.D72N4 400 V three phase, LXM32.D72N4 480 V three phase
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 5477.0279217799
    • Environmental Disclosure : ENVPEP111049EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP111049EN
    • Pep Verification Date : 2020-08-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : servo motor
  • Output Attributes
    • Nominal Output Power : 5000 W LXM32.D72N4 24 A, 400 V, three phase, 5000 W LXM32.D72N4 24 A, 480 V, three phase, 3400 W LXM05AD57N4, 380...480 V, three phase, 3400 W LXM05BD57N4, 380...480 V, three phase, 3400 W LXM05CD57N4, 380...480 V, three phase
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
