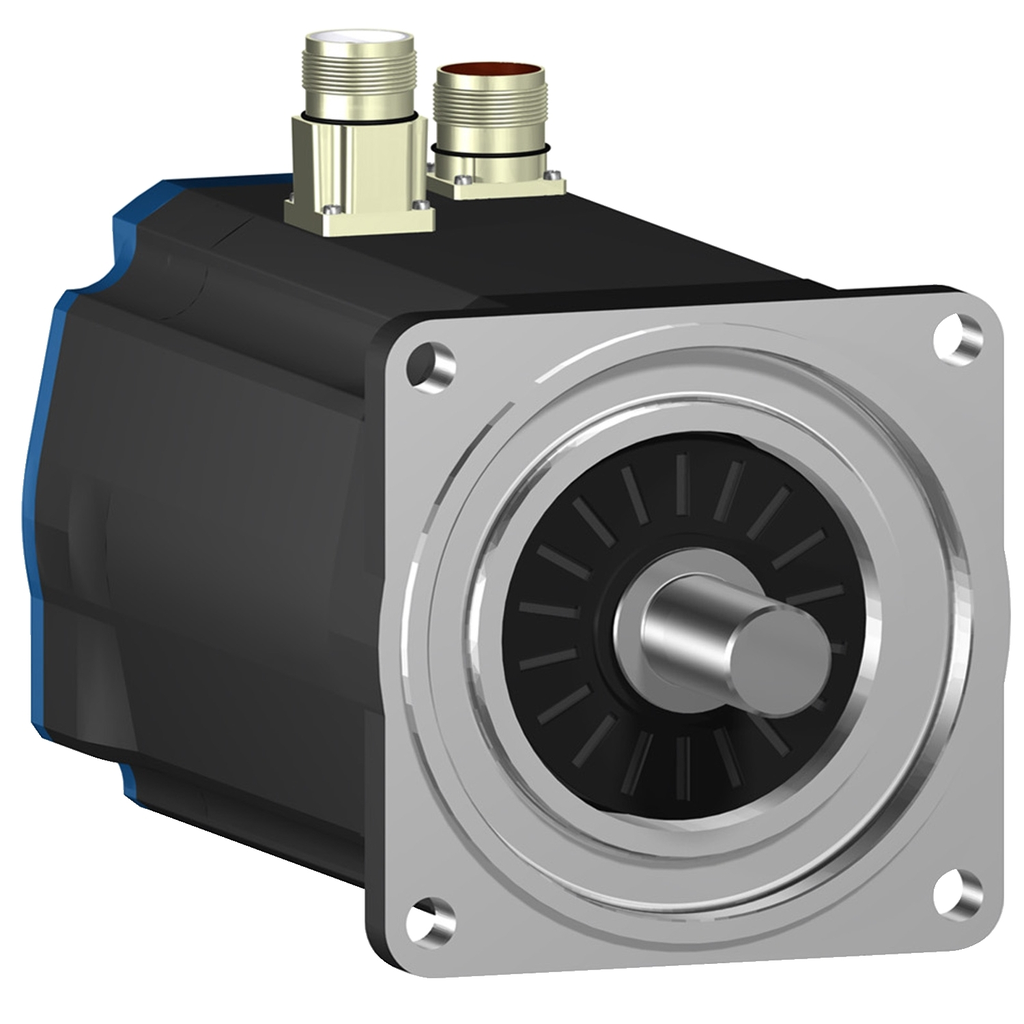

AC servo motor BSH, Lexium 05, 3.4N.m, 2500rpm, untapped shaft, without brake, IP50

motor 100 IP40 smooth abs nobr

SQDBSH1002P02A1A BSH1002P02A1A 3389118139152
3326.95 / EA
http://schema.org/OutOfStock
Mayer-DDS-AC servo motor BSH, Lexium 05, 3.4N.m, 2500rpm, untapped shaft, without brake, IP50-1
  • Length: 204.5 mm
  • Mounting Hole Size: 115 mm, 9 mm
  • Net Weight: 5.9 kg
  • Number of Holes: 4
  • Number of Phases: 3
  • Number of Poles: 8
  • Shaft Length: 40 mm
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Complementary
    • Circle Diameter Of The Mounting Holes : 115 mm
    • Maximum Permanent Current : 17.1 A
    • Continuous Power : 2.51 W
    • Switching Frequency : 8 kHz
    • Stator Electrical Time Constant : 5.29 ms 20 °C
    • Maximum Radial Force Fr : 620 N 4000 rpm || 690 N 3000 rpm || 790 N 2000 rpm || 990 N 1000 rpm
    • Number Of Motor Stacks : 2
    • Rotor Inertia : 2.31 kg.cm²
    • Number Of Motor Poles : 8
    • Back Emf Constant : 77 V/krpm 120 °C
    • Maximum Axial Force Fa : 0.2 x Fr
    • Centring Collar Depth : 3.5 mm
    • Second Shaft : without second shaft end
    • Shaft Length : 40 mm
    • Phase : three phase
    • Length : 204.5 mm
    • Maximum Current Irms : 17.1 A LXM15LD13M3 || 17.1 A LXM05BD22N4 || 17.1 A LXM05CD28M2 || 17.1 A LXM05CD17M3X || 17.1 A LXM05CD22N4 || 17.1 A LXM32.D18N4 || 17.1 A LXM15LD21M3 || 17.1 A LXM15LD10N4 || 17.1 A LXM15LD17N4 || 17.1 A LXM05AD28M2 || 17.1 A LXM05AD17M3X || 17.1 A LXM05AD22N4 || 17.1 A LXM05BD28M2 || 17.1 A LXM05BD17M3X
    • Net Weight : 5.9 kg
    • Centring Collar Diameter : 95 mm
    • Stator Inductance : 12.7 mH 20 °C
    • Motor Flange Size : 100 mm
    • [Us] Rated Supply Voltage : 480 V
    • Number Of Mounting Holes : 4
    • Shaft Diameter : 19 mm
    • Mounting Holes Diameter : 9 mm
    • Type Of Cooling : natural convection
    • Feedback Type : multiturn SinCos Hiperface
    • Stator Resistance : 2.4 Ohm 20 °C
    • Range Compatibility : Lexium 05 || Lexium 15 || Lexium 32
    • Continuous Stall Current : 4.8 A
    • Torque Constant : 1.21 N.m/A 120 °C
  • Specifications
    • Maximum Mechanical Speed : 6000 rpm
    • Mounting Support : international standard flange
    • Holding Brake : without
    • Speed Feedback Resolution : 131072 points/turn x 4096 turns
    • Product Or Component Type : servo motor
    • Nominal Output Power : 950 W LXM15LD21M3, 230 V, single phase || 1700 W LXM15LD17N4, 400 V, three phase || 1950 W LXM15LD17N4, 480 V, three phase || 2150 W LXM15LD10N4, 480 V, three phase || 780 W LXM05AD17M3X, 200...240 V, three phase || 780 W LXM05BD17M3X, 200...240 V, three phase || 780 W LXM05CD17M3X, 200...240 V, three phase || 840 W LXM15LD13M3, 230 V, three phase || 890 W LXM15LD10N4, 230 V, three phase || 1700 W LXM32.D18N4 6 A, 400 V, three phase || 1700 W LXM32.D18N4 6 A, 480 V, three phase || 950 W LXM15LD21M3, 230 V, three phase || 780 W LXM05AD28M2, 200...240 V, single phase || 780 W LXM05BD28M2, 200...240 V, single phase || 780 W LXM05CD28M2, 200...240 V, single phase || 1400 W LXM05AD22N4, 380...480 V, three phase || 1400 W LXM05BD22N4, 380...480 V, three phase || 1400 W LXM05CD22N4, 380...480 V, three phase || 1600 W LXM15LD10N4, 400 V, three phase
    • Peak Stall Torque : 9.39 N.m LXM15LD21M3, 230 V, single phase || 13.92 N.m LXM05AD22N4, 380...480 V, three phase || 16 N.m LXM05AD28M2, 200...240 V, single phase || 11.23 N.m LXM05BD17M3X, 200...240 V, three phase || 13.92 N.m LXM05BD22N4, 380...480 V, three phase || 16 N.m LXM05BD28M2, 200...240 V, single phase || 11.23 N.m LXM05CD17M3X, 200...240 V, three phase || 13.92 N.m LXM05CD22N4, 380...480 V, three phase || 16 N.m LXM05CD28M2, 200...240 V, single phase || 18.3 N.m LXM32.D18N4 6 A, 400 V, three phase || 18.3 N.m LXM32.D18N4 6 A, 480 V, three phase || 5.6 N.m LXM15LD13M3, 230 V, three phase || 8 N.m LXM15LD10N4, 230 V, three phase || 8 N.m LXM15LD10N4, 400 V, three phase || 8 N.m LXM15LD10N4, 480 V, three phase || 12.13 N.m LXM15LD17N4, 400 V, three phase || 12.13 N.m LXM15LD17N4, 480 V, three phase || 14.79 N.m LXM15LD21M3, 230 V, three phase || 11.23 N.m LXM05AD17M3X, 200...240 V, three phase
    • Product Compatibility : LXM05AD28M2 200...240 V single phase || LXM15LD10N4 230 V three phase || LXM15LD10N4 480 V three phase || LXM15LD21M3 230 V three phase || LXM05AD22N4 380...480 V three phase || LXM05BD22N4 380...480 V three phase || LXM05CD22N4 380...480 V three phase || LXM15LD17N4 400 V three phase || LXM15LD17N4 480 V three phase || LXM32.D18N4 400 V three phase || LXM32.D18N4 480 V three phase || LXM05BD28M2 200...240 V single phase || LXM05CD28M2 200...240 V single phase || LXM15LD21M3 230 V single phase || LXM15LD13M3 230 V three phase || LXM15LD10N4 400 V three phase || LXM05AD17M3X 200...240 V three phase || LXM05BD17M3X 200...240 V three phase || LXM05CD17M3X 200...240 V three phase
    • Ip Degree Of Protection : IP50 standard
    • Shaft End : untapped
    • Nominal Speed : 3000 rpm LXM05AD22N4, 380...480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase || 1500 rpm LXM05AD28M2, 200...240 V, single phase || 1500 rpm LXM05BD28M2, 200...240 V, single phase || 1500 rpm LXM05CD28M2, 200...240 V, single phase || 2000 rpm LXM15LD21M3, 230 V, single phase || 2000 rpm LXM15LD21M3, 230 V, three phase || 2500 rpm LXM15LD10N4, 230 V, three phase || 2500 rpm LXM15LD13M3, 230 V, three phase || 4000 rpm LXM15LD17N4, 400 V, three phase || 5000 rpm LXM15LD17N4, 480 V, three phase || 3000 rpm LXM05BD22N4, 380...480 V, three phase || 3000 rpm LXM05CD22N4, 380...480 V, three phase || 1500 rpm LXM05AD17M3X, 200...240 V, three phase || 1500 rpm LXM05BD17M3X, 200...240 V, three phase || 1500 rpm LXM05CD17M3X, 200...240 V, three phase || 4500 rpm LXM15LD10N4, 400 V, three phase || 6000 rpm LXM15LD10N4, 480 V, three phase || 4000 rpm LXM32.D18N4 6 A, 400 V, three phase
    • Electrical Connection : straight connectors
    • Nominal Torque : 4.5 N.m LXM15LD21M3, 230 V, single phase || 4 N.m LXM15LD17N4, 400 V, three phase || 4.4 N.m LXM05AD22N4, 380...480 V, three phase || 4.4 N.m LXM05BD22N4, 380...480 V, three phase || 4.4 N.m LXM05CD22N4, 380...480 V, three phase || 4.96 N.m LXM05AD17M3X, 200...240 V, three phase || 4.96 N.m LXM05BD17M3X, 200...240 V, three phase || 4.96 N.m LXM05CD17M3X, 200...240 V, three phase || 5.8 N.m LXM15LD21M3, 230 V, three phase || 4 N.m LXM32.D18N4 6 A, 400 V, three phase || 4 N.m LXM32.D18N4 6 A, 480 V, three phase || 4.96 N.m LXM05AD28M2, 200...240 V, single phase || 4.96 N.m LXM05BD28M2, 200...240 V, single phase || 4.96 N.m LXM05CD28M2, 200...240 V, single phase || 3.4 N.m LXM15LD10N4, 230 V, three phase || 3.4 N.m LXM15LD10N4, 400 V, three phase || 3.4 N.m LXM15LD10N4, 480 V, three phase || 3.4 N.m LXM15LD13M3, 230 V, three phase || 3.7 N.m LXM15LD17N4, 480 V, three phase
    • Device Short Name : BSH
    • Continuous Stall Torque : 4.5 N.m LXM15LD21M3, 230 V, single phase || 5.5 N.m LXM05AD22N4, 380...480 V, three phase || 5.5 N.m LXM05AD28M2, 200...240 V, single phase || 5.5 N.m LXM05BD17M3X, 200...240 V, three phase || 5.5 N.m LXM05BD22N4, 380...480 V, three phase || 5.5 N.m LXM05BD28M2, 200...240 V, single phase || 5.5 N.m LXM05CD17M3X, 200...240 V, three phase || 5.5 N.m LXM05CD22N4, 380...480 V, three phase || 5.5 N.m LXM05CD28M2, 200...240 V, single phase || 5.8 N.m LXM32.D18N4 6 A, 400 V, three phase || 5.8 N.m LXM32.D18N4 6 A, 480 V, three phase || 3.4 N.m LXM15LD13M3, 230 V, three phase || 3.4 N.m LXM15LD10N4, 230 V, three phase || 3.4 N.m LXM15LD10N4, 400 V, three phase || 3.4 N.m LXM15LD10N4, 480 V, three phase || 5.8 N.m LXM15LD17N4, 400 V, three phase || 5.8 N.m LXM15LD17N4, 480 V, three phase || 5.8 N.m LXM15LD21M3, 230 V, three phase || 5.5 N.m LXM05AD17M3X, 200...240 V, three phase
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111049EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Contractual warranty
    • Warranty : 18 months
