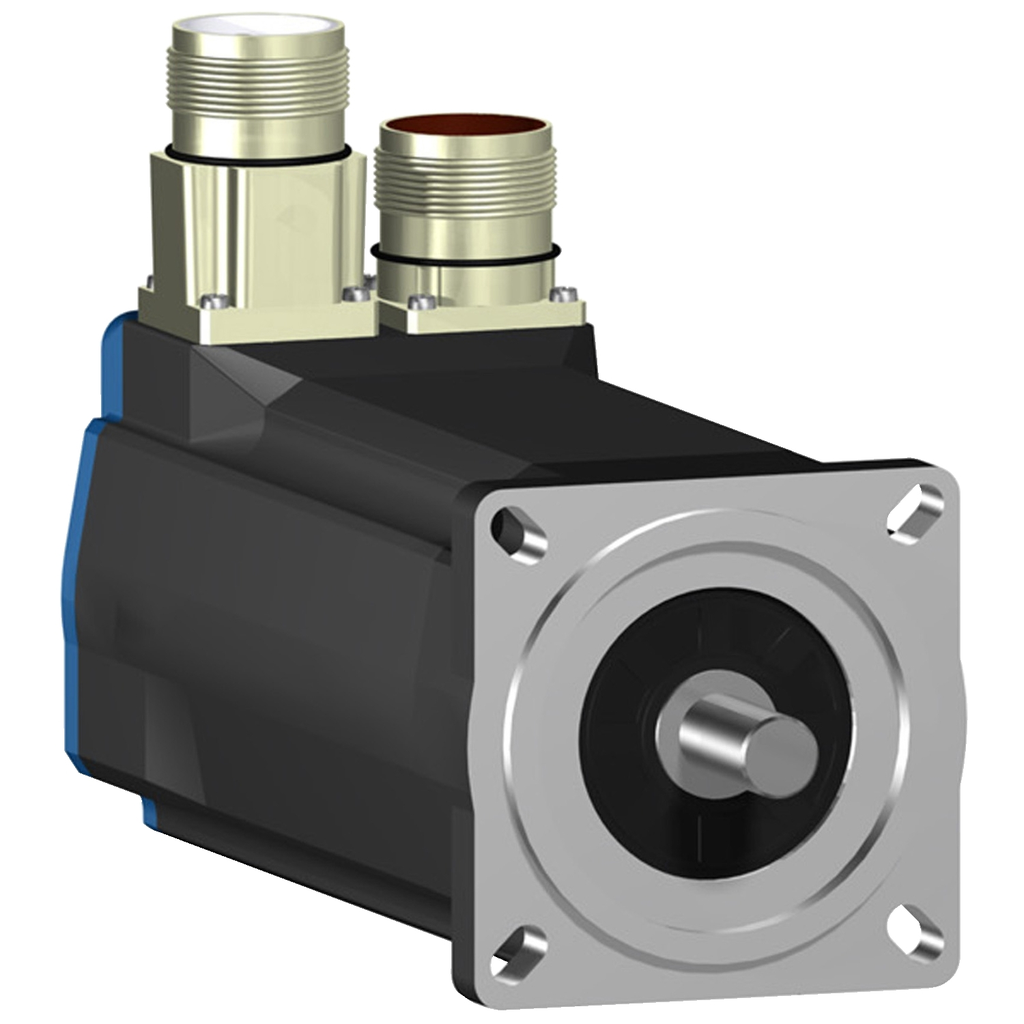

AC servo motor BSH - 2.2 N.m - 3000 rpm - keyed shaft - without brake - IP65

motor 70 IP65 keyed abs nobrk

SQDBSH0702P32A2A BSH0702P32A2A 338911813647
0.00 / EA
  • Length: 187 mm
  • Mounting Hole Size: 5.5 mm, 82 mm
  • Net Weight: 2.89 kg
  • Number of Holes: 4
  • Number of Phases: 3
  • Number of Poles: 6
  • Shaft Length: 23 mm
  • Warranty Length: 18 mth
  • Specifications
  • Ip Degree Of Protection : IP65 standard || IP67 with IP67 kit
  • Product Compatibility : LXM05AD10M2 200...240 V single phase || LXM05CD10M3X 200...240 V three phase || LXM05AD14N4 380...480 V three phase || LXM05BD14N4 380...480 V three phase || LXM05CD14N4 380...480 V three phase || LXM15LD10N4 400 V three phase || LXM05AD17M3X 200...240 V three phase || LXM05BD17M3X 200...240 V three phase || LXM05CD17M3X 200...240 V three phase || LXM32.D12N4 400 V three phase || LXM32.D12N4 480 V three phase || LXM05AD17M2 200...240 V single phase || LXM15LD10N4 230 V three phase || LXM15LD10N4 480 V three phase || LXM05BD10M2 200...240 V single phase || LXM05BD17M2 200...240 V single phase || LXM05CD10M2 200...240 V single phase || LXM05CD17M2 200...240 V single phase || LXM15LD13M3 230 V single phase || LXM05AD10M3X 200...240 V three phase || LXM05BD10M3X 200...240 V three phase
  • Electrical Connection : rotatable right-angled connectors
  • Product Or Component Type : servo motor
  • Shaft End : keyed
  • Maximum Mechanical Speed : 8000 rpm
  • Peak Stall Torque : 7.6 N.m LXM32.D12N4 3 A, 400 V, three phase || 4.85 N.m LXM15LD10N4, 230 V, three phase || 4.85 N.m LXM15LD10N4, 400 V, three phase || 4.85 N.m LXM15LD10N4, 480 V, three phase || 4.57 N.m LXM05AD10M3X, 200...240 V, three phase || 5.63 N.m LXM05AD17M3X, 200...240 V, three phase || 5.63 N.m LXM05AD14N4, 380...480 V, three phase || 4.57 N.m LXM05BD10M3X, 200...240 V, three phase || 5.63 N.m LXM05BD17M3X, 200...240 V, three phase || 5.63 N.m LXM05BD14N4, 380...480 V, three phase || 4.57 N.m LXM05CD10M3X, 200...240 V, three phase || 7.6 N.m LXM32.D12N4 3 A, 480 V, three phase || 5.63 N.m LXM05CD17M3X, 200...240 V, three phase || 5.63 N.m LXM05CD14N4, 380...480 V, three phase || 5.63 N.m LXM15LD13M3, 230 V, single phase || 4.57 N.m LXM05AD10M2, 200...240 V, single phase || 5.63 N.m LXM05AD17M2, 200...240 V, single phase || 4.57 N.m LXM05BD10M2, 200...240 V, single phase || 5.63 N.m LXM05BD17M2, 200...240 V, single phase || 4.57 N.m LXM05CD10M2, 200...240 V, single phase || 5.63 N.m LXM05CD17M2, 200...240 V, single phase
  • Nominal Output Power : 850 W LXM32.D12N4 3 A, 400 V, three phase || 600 W LXM05CD17M2, 200...240 V, single phase || 1300 W LXM15LD10N4, 480 V, three phase || 597 W LXM15LD10N4, 230 V, three phase || 600 W LXM05AD10M3X, 200...240 V, three phase || 600 W LXM05AD14N4, 380...480 V, three phase || 600 W LXM05AD17M3X, 200...240 V, three phase || 600 W LXM05BD10M3X, 200...240 V, three phase || 600 W LXM05BD14N4, 380...480 V, three phase || 600 W LXM05BD17M3X, 200...240 V, three phase || 600 W LXM05CD10M3X, 200...240 V, three phase || 850 W LXM32.D12N4 3 A, 480 V, three phase || 600 W LXM05CD14N4, 380...480 V, three phase || 600 W LXM05CD17M3X, 200...240 V, three phase || 1000 W LXM15LD10N4, 400 V, three phase || 597 W LXM15LD13M3, 230 V, single phase || 600 W LXM05AD10M2, 200...240 V, single phase || 600 W LXM05AD17M2, 200...240 V, single phase || 600 W LXM05BD10M2, 200...240 V, single phase || 600 W LXM05BD17M2, 200...240 V, single phase || 600 W LXM05CD10M2, 200...240 V, single phase
  • Mounting Support : international standard flange
  • Device Short Name : BSH
  • Nominal Torque : 1.64 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.55 N.m LXM15LD10N4, 480 V, three phase || 1.65 N.m LXM15LD10N4, 400 V, three phase || 1.9 N.m LXM05AD10M3X, 200...240 V, three phase || 1.9 N.m LXM05AD14N4, 380...480 V, three phase || 1.9 N.m LXM05AD17M3X, 200...240 V, three phase || 1.9 N.m LXM05BD10M3X, 200...240 V, three phase || 1.9 N.m LXM05BD14N4, 380...480 V, three phase || 1.9 N.m LXM05BD17M3X, 200...240 V, three phase || 1.9 N.m LXM05CD10M3X, 200...240 V, three phase || 1.9 N.m LXM05CD14N4, 380...480 V, three phase || 1.64 N.m LXM32.D12N4 3 A, 480 V, three phase || 1.9 N.m LXM05CD17M3X, 200...240 V, three phase || 1.9 N.m LXM15LD10N4, 230 V, three phase || 1.9 N.m LXM05AD10M2, 200...240 V, single phase || 1.9 N.m LXM05AD17M2, 200...240 V, single phase || 1.9 N.m LXM05BD10M2, 200...240 V, single phase || 1.9 N.m LXM05BD17M2, 200...240 V, single phase || 1.9 N.m LXM05CD10M2, 200...240 V, single phase || 1.9 N.m LXM05CD17M2, 200...240 V, single phase || 1.9 N.m LXM15LD13M3, 230 V, single phase
  • Speed Feedback Resolution : 131072 points/turn x 4096 turns
  • Continuous Stall Torque : 2.2 N.m LXM32.D12N4 3 A, 400 V, three phase || 2.12 N.m LXM05AD17M2, 200...240 V, single phase || 2.12 N.m LXM05BD17M2, 200...240 V, single phase || 2.12 N.m LXM05CD17M2, 200...240 V, single phase || 2.2 N.m LXM15LD10N4, 480 V, three phase || 2.12 N.m LXM05AD17M3X, 200...240 V, three phase || 2.12 N.m LXM05AD14N4, 380...480 V, three phase || 2.12 N.m LXM05BD17M3X, 200...240 V, three phase || 2.12 N.m LXM05BD14N4, 380...480 V, three phase || 2.12 N.m LXM05CD17M3X, 200...240 V, three phase || 2.12 N.m LXM05CD14N4, 380...480 V, three phase || 2.2 N.m LXM32.D12N4 3 A, 480 V, three phase || 2.2 N.m LXM15LD10N4, 230 V, three phase || 2.2 N.m LXM15LD10N4, 400 V, three phase || 2.12 N.m LXM05AD10M2, 200...240 V, single phase || 2.12 N.m LXM05AD10M3X, 200...240 V, three phase || 2.12 N.m LXM05BD10M2, 200...240 V, single phase || 2.12 N.m LXM05BD10M3X, 200...240 V, three phase || 2.12 N.m LXM05CD10M2, 200...240 V, single phase || 2.12 N.m LXM05CD10M3X, 200...240 V, three phase || 2.2 N.m LXM15LD13M3, 230 V, single phase
  • Nominal Speed : 5000 rpm LXM32.D12N4 3 A, 400 V, three phase || 3000 rpm LXM05CD10M3X, 200...240 V, three phase || 3000 rpm LXM05CD14N4, 380...480 V, three phase || 3000 rpm LXM15LD13M3, 230 V, single phase || 3000 rpm LXM05AD17M2, 200...240 V, single phase || 3000 rpm LXM05BD17M2, 200...240 V, single phase || 3000 rpm LXM05CD17M2, 200...240 V, single phase || 3000 rpm LXM05AD17M3X, 200...240 V, three phase || 3000 rpm LXM05BD17M3X, 200...240 V, three phase || 3000 rpm LXM05CD17M3X, 200...240 V, three phase || 8000 rpm LXM15LD10N4, 480 V, three phase || 5000 rpm LXM32.D12N4 3 A, 480 V, three phase || 3000 rpm LXM15LD10N4, 230 V, three phase || 6000 rpm LXM15LD10N4, 400 V, three phase || 3000 rpm LXM05AD10M2, 200...240 V, single phase || 3000 rpm LXM05BD10M2, 200...240 V, single phase || 3000 rpm LXM05CD10M2, 200...240 V, single phase || 3000 rpm LXM05AD10M3X, 200...240 V, three phase || 3000 rpm LXM05AD14N4, 380...480 V, three phase || 3000 rpm LXM05BD10M3X, 200...240 V, three phase || 3000 rpm LXM05BD14N4, 380...480 V, three phase
  • Holding Brake : without
  • Complementary
    • Number Of Motor Stacks : 2
    • Motor Flange Size : 70 mm
    • Continuous Stall Current : 2.9 A
    • Key Width : 18 mm
    • Length : 187 mm
    • Switching Frequency : 8 kHz
    • Stator Inductance : 19 mH 20 °C
    • Phase : three phase
    • Maximum Permanent Current : 11.8 A
    • Centring Collar Diameter : 60 mm
    • Stator Resistance : 4.2 Ohm 20 °C
    • Torque Constant : 0.77 N.m/A 120 °C
    • Back Emf Constant : 48 V/krpm 120 °C
    • Mounting Holes Diameter : 5.5 mm
    • Shaft Diameter : 11 mm
    • Stator Electrical Time Constant : 4.52 ms 20 °C
    • Continuous Power : 1.51 W
    • Rotor Inertia : 0.41 kg.cm²
    • Circle Diameter Of The Mounting Holes : 82 mm
    • Range Compatibility : Lexium 05 || Lexium 32 || Lexium 15
    • Number Of Motor Poles : 6
    • [Us] Rated Supply Voltage : 480 V
    • Maximum Current Irms : 11.8 A LXM15LD13M3 || 11.8 A LXM05BD10M3X || 11.8 A LXM05BD17M3X || 11.8 A LXM05BD14N4 || 11.8 A LXM05CD10M2 || 11.8 A LXM05CD17M2 || 11.8 A LXM05CD10M3X || 11.8 A LXM05CD17M3X || 11.8 A LXM05CD14N4 || 11.8 A LXM32.D12N4 || 11.8 A LXM15LD10N4 || 11.8 A LXM05AD10M2 || 11.8 A LXM05AD17M2 || 11.8 A LXM05AD10M3X || 11.8 A LXM05AD17M3X || 11.8 A LXM05AD14N4 || 11.8 A LXM05BD10M2 || 11.8 A LXM05BD17M2
    • Shaft Length : 23 mm
    • Number Of Mounting Holes : 4
    • Maximum Radial Force Fr : 390 N 6000 rpm || 410 N 5000 rpm || 450 N 4000 rpm || 490 N 3000 rpm || 560 N 2000 rpm || 710 N 1000 rpm
    • Centring Collar Depth : 2.5 mm
    • Second Shaft : without second shaft end
    • Net Weight : 2.89 kg
    • Feedback Type : multiturn SinCos Hiperface
    • Type Of Cooling : natural convection
    • Maximum Axial Force Fa : 0.2 x Fr
