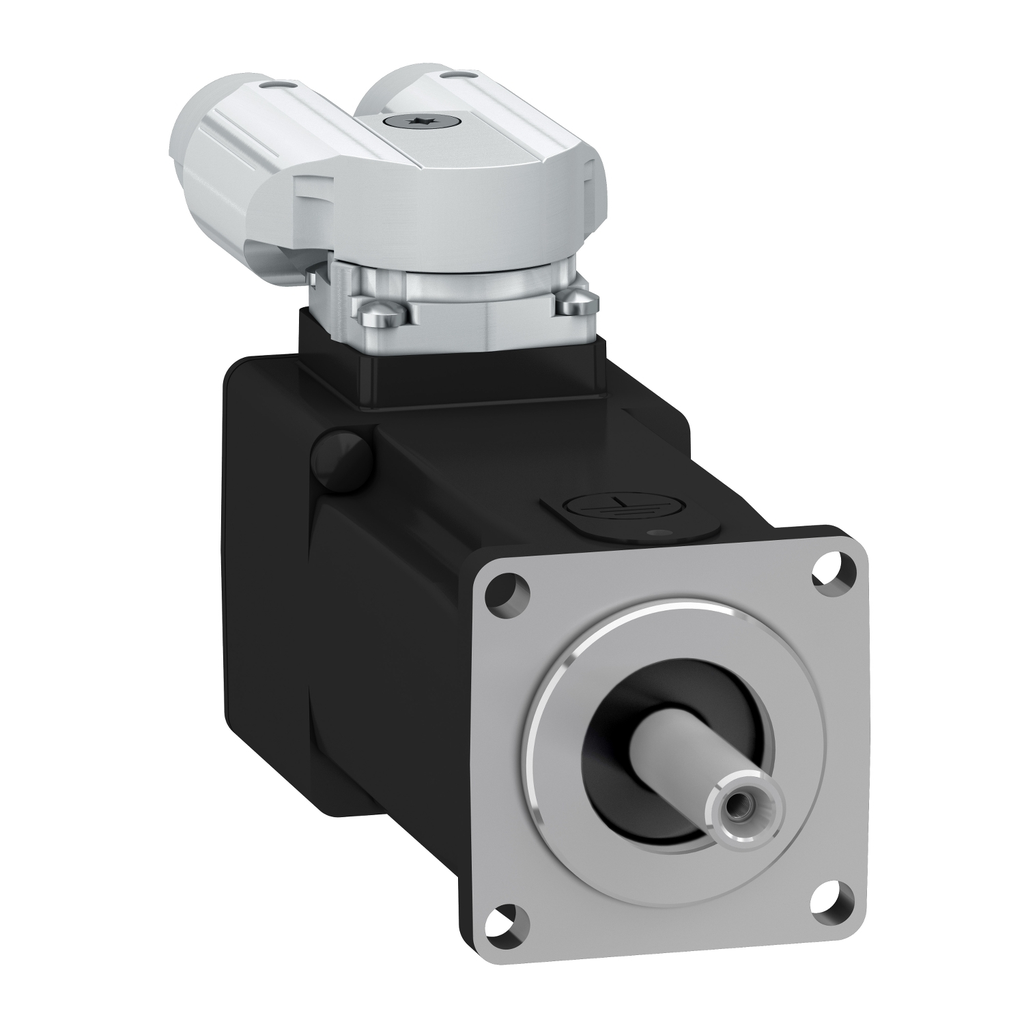

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is an AC servo motor that features a maximum mechanical speed of 9000RPM, an untapped shaft end, without holding brake. It is equipped with a single-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 400V, a continuous stall current of 1.5A, a continuous power of 398W, and a continuous stall torque of 0.38Nm. Its degree of protection is IP50 rated. The motor flange size is 40mm, fixed by 4x 4.5mm holes. The circle diameter of the mounting holes is 46mm. It weighs 0.6kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AU60N4, LXM32SU60N4, LXM32MU60N4, LXM32CU60N4, LXM32AU45M2, LXM32SU45M2, LXM32MU45M2, and LXM32CU45M2 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Motor Flange Size : 40 mm
• Shaft Length : 25 mm
• Complementary Attributes
• Maximum Current IRMS : 6 A LXM32.U60N4 480 V, 6 A LXM32.U60N4 480 V, 6 A LXM32.U60N4 480 V, 6 A LXM32.U60N4 400 V, 6 A LXM32.U60N4 400 V, 6 A LXM32.U60N4 400 V, 6 A LXM32.U45M2 230 V, 6 A LXM32.U45M2 230 V, 6 A LXM32.U45M2 230 V, 7.2 A
• Maximum Ambient Air Temperature For Operation : 60.0 °C
• Maximum Mechanical Speed : 10000 rpm
• Maximum Operational Altitude : 3000.0 m
• Minimum Ambient Air Temperature For Operation : -20.0 °C
• Minimum Operational Altitude : 0.0 m
• Maximum In Rated Current : 1.27 A
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Continuous Stall Torque : 0.38 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.38 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.38 N.m LXM32.U45M2 1.5 A, 230 V, single phase, 0.38 N.m LXM32.U45M2 1.5 A, 230 V, single phase, 0.38 N.m LXM32.U45M2 1.5 A, 230 V, single phase, 0.38 N.m LXM32.U45M2 1.5 A, 230 V, single phase, 0.38 N.m LXM32.U45M2 1.5 A, 230 V, single phase
• Device Short Name : BSH, BSH
• Inertia : 0.0 kg.cm² of brake, 0.0 kg.cm² of brake, 0.042 kg.cm² of motor, 0.042 kg.cm² of motor
• Nominal Speed : 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase, 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase, 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase, 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase, 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase, 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
• Nominal Torque : 0.31 N.m full speed, 0.31 N.m full speed, 0.35 N.m half speed, 0.35 N.m half speed, 0.292 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.292 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.292 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.292 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.292 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.307 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.307 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.307 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.307 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.307 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.364 N.m LXM32.U45M2 1.5 A, 230 V, single phase, 0.364 N.m LXM32.U45M2 1.5 A, 230 V, single phase, 0.364 N.m LXM32.U45M2 1.5 A, 230 V, single phase, 0.364 N.m LXM32.U45M2 1.5 A, 230 V, single phase, 0.364 N.m LXM32.U45M2 1.5 A, 230 V, single phase
• Peak Stall Torque : 1.37 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 1.37 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 1.37 N.m LXM32.U45M2 1.5 A, 230 V, single phase, 1.37 N.m LXM32.U45M2 1.5 A, 230 V, single phase, 1.37 N.m LXM32.U45M2 1.5 A, 230 V, single phase, 1.37 N.m LXM32.U45M2 1.5 A, 230 V, single phase, 1.37 N.m LXM32.U45M2 1.5 A, 230 V, single phase
• Stator Electrical Time Constant : 1.1 ms 20 °C, 1.1 ms 20 °C
• Stator Inductance : 6.4 mH 20 °C, 6.4 mH 20 °C
• Stator Resistance : 11.6 Ohm 20 °C, 11.6 Ohm 20 °C
• Torque Constant : 0.26 N.m/A 120 °C, 0.26 N.m/A 120 °C
• Carbon Footprint Of The Distribution Phase A4 : 0.0808937838, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0590828108
• Carbon Footprint Of The Installation Phase A5 : 0.0055622757, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 kg CO2 eq., 2.7449351351
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 312 kg CO2 eq., 312.2368383061
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Centring Collar Diameter : 30 mm
• Circle Diameter Of The Mounting Holes : 46 mm
• Coefficient 1 1 : -8.085E-06 N.m/rpm
• Coefficient 1 2 : 0 N.m/rpm²
• Coefficient 1 3 : 0 N.m/rpm3
• Coefficient 1 4 : 0 N.m/rpm4
• Coefficient 1 5 : 0 N.m/rpm5
• Coefficient 1 6 : 0 N.m/rpm6
• Coefficient 2 0 : 0.030927813371642 N.m
• Coefficient 2 1 : 2.11111111111111E-06 N.m/rpm
• Continuous Stall Current : 1.5 A
• Derating Altitude Scale : 80.0 m
• Derating Altitude Start : 1000.0 m
• Derating Temperature Scale : 20.0 °C
• Derating Temperature Start : 40.0 °C
• Feedback Type : single turn SinCos Hiperface
• Holding Brake : without
• Maximum Operational Altitude : 3000.0 m
• Minimum Ambient Air Temperature For Operation : -20.0 °C
• Minimum Operational Altitude : 0.0 m
• Motor Figures : 400.0 V
• Mounting Holes Diameter : 4.5 mm
• Package Weight Lbs : 627.0 g
• Peak Nominal Torque : 1.5 N.m
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : servo motor
• Returnability : No
• Second Shaft : without second shaft end
• Shaft Diameter : 8 mm
• Shaft End : smooth shaft
• Sizing Reference : BSH0402P
• Sustainable Packaging : No
• Temperature Copper Hot : 120 °C
• Temperature Magnet Hot : 100 °C
• Temperature Magnet RT : 20 °C
• Total Lifecycle Carbon Footprint : 315 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Maximum In Rated Current : 1.27 A
• Relationship Type : cross-selling relationship
• Pep Code : ENVPEP111049EN
• Pep Verification Date : 2020-08-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP50 standard, IP50 standard
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 315.1273123115
• Environmental Disclosure : ENVPEP111049EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Pep Code : ENVPEP111049EN
• Pep Verification Date : 2020-08-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : servo motor
• Output Attributes
• Nominal Output Power : 275 W LXM32.U60N4 1.5 A, 480 V, three phase, 275 W LXM32.U60N4 1.5 A, 480 V, three phase, 275 W LXM32.U60N4 1.5 A, 480 V, three phase, 275 W LXM32.U60N4 1.5 A, 480 V, three phase, 275 W LXM32.U60N4 1.5 A, 480 V, three phase, 289 W LXM32.U60N4 1.5 A, 400 V, three phase, 289 W LXM32.U60N4 1.5 A, 400 V, three phase, 289 W LXM32.U60N4 1.5 A, 400 V, three phase, 289 W LXM32.U60N4 1.5 A, 400 V, three phase, 289 W LXM32.U60N4 1.5 A, 400 V, three phase, 152 W LXM32.U45M2 1.5 A, 230 V, single phase, 152 W LXM32.U45M2 1.5 A, 230 V, single phase, 152 W LXM32.U45M2 1.5 A, 230 V, single phase, 152 W LXM32.U45M2 1.5 A, 230 V, single phase, 152 W LXM32.U45M2 1.5 A, 230 V, single phase
