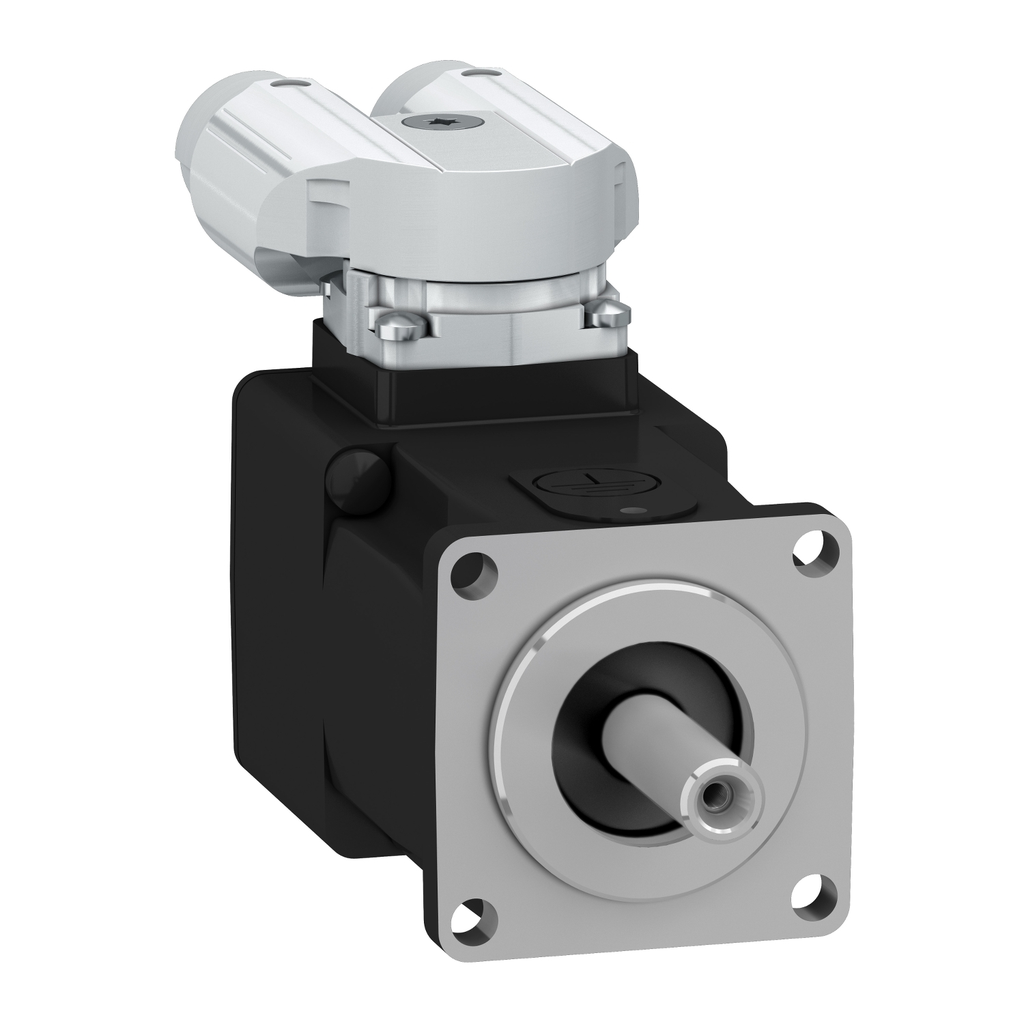

servo motor BSH, Lexium 32, 0.21N.m, 9000rpm, 40mm, untapped shaft, 16 Sincos single turn, without brake, IP50

motor 40mm IP54 nokey enc sing

SQDBSH0401P06A2A BSH0401P06A2A 3606485467085
1197.06 / EA
http://schema.org/OutOfStock
servo motor BSH, Lexium 32, 0.21N.m, 9000rpm, 40mm, untapped shaft, 16 Sincos single turn, without brake, IP50
  • Shaft Diameter: 8 mm
  • Shaft End: Smooth Shaft
  • Shaft Length: 25 mm
This product is part of the Lexium 32 range, an offer of servo drives paired with motors for motion control. This AC servo motor features a maximum mechanical speed of 10000RPM, a smooth shaft end, and no holding brake. It is equipped with an absolute single-turn encoder, 16 sinusoidal periods per turn. This servo motor is suitable for high-efficiency applications. It is a servo motor with a rated supply voltage of 400V and a continuous stall current of 1.12A. It is furnished with rotatable right-angle connectors for electrical connection and is an IP54-rated product; its shaft end is IP50-rated. Its flange is 40x40mm, and it is a 1-stack length, and it weighs 4.3kg. This servo motor is suitable for motion and speed applications required in printing, packaging, handling, clamping and material processing. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O, AC 2010 standards, and conforms to UL. It is compatible with Lexium 32 servo drives, type LXM32nU45M2 and LXM32nU60N4, and pre-assembled cables with connectors, type VW3M5nnnn. It is sold individually. It supports the international standard 40mm flange mount with a natural convection cooling system. Lexium 32 is a servo drive range that provides a drive and motor combination that has exactly the right power, performance, and functionality.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Motor Flange Size : 40 mm
    • Shaft Length : 25 mm
  • Complementary Attributes
    • Maximum Current Irms : 4.7 A LXM32.U60N4 480 V, 4.7 A LXM32.U60N4 400 V, 4.7 A LXM32.U45M2 230 V, 4.5 A
    • Minimum Ambient Air Temperature For Operation : -20.0 °C, -20.0 °C
    • Line Rated Current : 1.02 A
    • Maximum Ambient Air Temperature For Operation : 60.0 °C
    • Maximum Axial Force Fa : 0.2 x Fr
    • Maximum Mechanical Speed : 10000 rpm
    • Maximum Operational Altitude : 3000.0 m
    • Maximum Permanent Current : 1.12 A
    • Minimum Operational Altitude : 0.0 m
    • Maximum In Rated Current : 1.02 A
    • Us Rated Supply Voltage : 400 V
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Coefficient 1 1 : -3.6667E-06 N.m/rpm, -3.6667E-06 N.m/rpm
    • Continuous Stall Torque : 0.21 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.21 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.21 N.m LXM32.U45M2 1.5 A, 230 V, single phase
    • Inertia : 0.0 kg.cm² of brake, 0.023 kg.cm² of motor
    • Minimum Ambient Air Temperature For Operation : -20.0 °C, -20.0 °C
    • Nominal Speed : 9000 rpm, 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase, 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
    • Nominal Torque : 0.18 N.m full speed, 0.2 N.m half speed, 0.176 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.176 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.184 N.m LXM32.U45M2 1.5 A, 230 V, single phase
    • Peak Stall Torque : 0.8 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.8 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.8 N.m LXM32.U45M2 1.5 A, 230 V, single phase
    • Saturation Coefficient : -0.0175957658702008, -0.0175957658702008
    • Carbon Footprint Of The Distribution Phase A4 : 0.0808937838, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0590828108
    • Carbon Footprint Of The Installation Phase A5 : 0.0055622757, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 kg CO2 eq., 2.7449351351
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 195 kg CO2 eq., 195.2821462945
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Device Type : Motion - drive & motor
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1905
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Centring Collar Diameter : 30 mm
    • Circle Diameter Of The Mounting Holes : 46 mm
    • Coefficient 1 2 : 0 N.m/rpm²
    • Coefficient 1 3 : 0 N.m/rpm3
    • Coefficient 1 4 : 0 N.m/rpm4
    • Coefficient 1 5 : 0 N.m/rpm5
    • Coefficient 1 6 : 0 N.m/rpm6
    • Coefficient 2 0 : 0.0188241649361797 N.m
    • Coefficient 2 1 : 1.18333333333333E-06 N.m/rpm
    • Continuous Power : 220 W
    • Continuous Stall Current : 1.12 A
    • Derating Altitude Scale : 80.0 m
    • Derating Altitude Start : 1000.0 m
    • Derating Temperature Scale : 20.0 °C
    • Derating Temperature Start : 40.0 °C
    • Device Short Name : BSH
    • Electrical Connection : rotatable right-angled connectors
    • Feedback Type : single turn SinCos Hiperface
    • Holding Brake : without
    • Maximum Operational Altitude : 3000.0 m
    • Minimum Operational Altitude : 0.0 m
    • Motor Figures : 400.0 V
    • Motor Voltage Drop Coefficient : 1
    • Mounting Holes Diameter : 4.5 mm
    • Mounting Support : international standard flange
    • Network Number Of Phases : 3
    • Number Of Motor Poles : 5.0
    • Number Of Motor Stacks : 1
    • Number Of Mounting Holes : 4
    • Peak Nominal Torque : 0.72 N.m
    • Phase : three phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : servo motor
    • Returnability : No
    • Rotor Inertia : 0.0232 kg.cm²
    • Second Shaft : without second shaft end
    • Shaft Diameter : 8 mm
    • Shaft End : smooth shaft
    • Sizing Reference : BSH0401P
    • Software Version : EIME v5.8.1
    • Speed Feedback Resolution : 32768 points/turn
    • Stator Electrical Time Constant : 0.85 ms 20 °C
    • Stator Inductance : 7.3 mH 20 °C
    • Stator Resistance : 17.2 Ohm 20 °C
    • Sustainable Packaging : No
    • Switching Frequency : 8 kHz
    • Temperature Copper Hot : 120 °C
    • Temperature Magnet Hot : 100 °C
    • Temperature Magnet Rt : 20 °C
    • Torque Constant : 0.19 N.m/A 120 °C
    • Total Lifecycle Carbon Footprint : 198 kg CO2 eq.
    • Type Of Cooling : natural convection
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Maximum In Rated Current : 1.02 A
    • Warranty In Months : 18
    • Pep Code : ENVPEP111049EN
    • Database Version : 2016-11
    • Pep Verification Date : 2020-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Product Weight In G2 : 627
    • Reference Lifetime In Y2 : 10
    • Energy Consumption On Product Lifetime In Kwh : 398.58
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Germany
    • Energy Model Installation A5 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Offer Owner Code : 190786
    • Length Total : 73.4 mm
  • Environment Attributes Main
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 198.1726202999
    • Environmental Disclosure : ENVPEP111049EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP50 standard
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP111049EN
    • Pep Verification Date : 2020-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Phase : three phase
    • Product Or Component Type : servo motor
  • ETIM
    • ETIM 8 : EC001851
    • ETIM 9 : EC001851
  • Output Attributes
    • Nominal Output Power : 166 W LXM32.U60N4 1.5 A, 480 V, three phase, 166 W LXM32.U60N4 1.5 A, 400 V, three phase, 77 W LXM32.U45M2 1.5 A, 230 V, single phase
    • Output Current 3s Peak : 4.5 A
