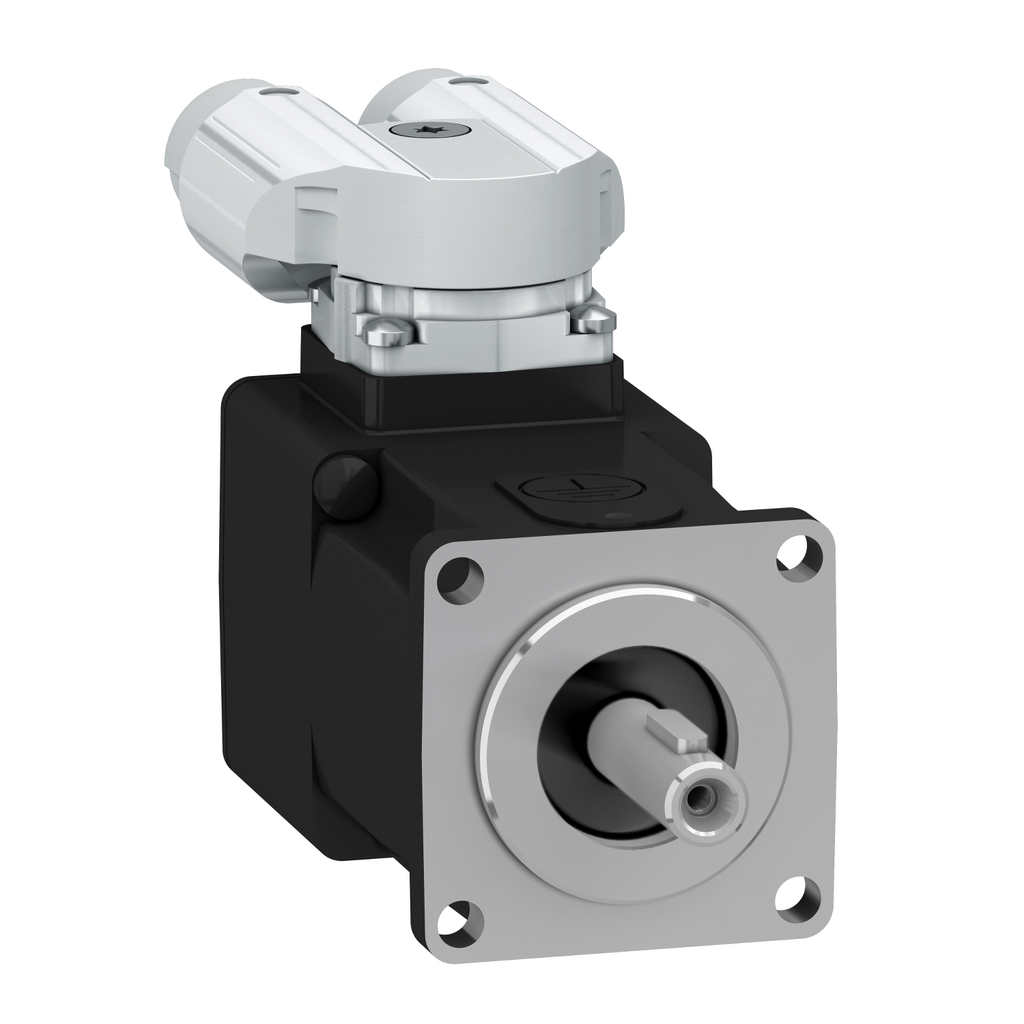

servo motor BSH, Lexium 32, 0.21N.m, 9000rpm, 40mm, keyed shaft, 16 Sincos Multi turn, without brake, IP65

Name: servo motor BSH, Lexium 32, 0.21N.m, 9000rpm, 40mm, keyed shaft, 16 Sincos Multi turn, without brake, IP65
Brand: SQUARE D
SKU: SQDBSH0401P37A2A
Price: 1618.30 USD
Availability: OutOfStock

AC SERVO MOTOR BSH - 0.21N.M -

SQDBSH0401P37A2A BSH0401P37A2A 3606485467153

1618.30 / EA

http://schema.org/OutOfStock

Mayer-DDS-servo motor BSH, Lexium 32, 0.21N.m, 9000rpm, 40mm, keyed shaft, 16 Sincos Multi turn, without brake, IP65-1

Country of Origin: Germany
Shaft Diameter: 8 mm
Shaft End: Keyed
Shaft Length: 25 mm

QTY

Features
Specifications

Nominal Speed

9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase
9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase
4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase

IP Degree Of Protection

IP65 standard

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon Footprint Of The Installation Phase A5

0.0055622757
0 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

0.1 kg CO2 eq.
0.0590828108

Inertia

0.0 kg.cm² of brake
0.023 kg.cm² of motor

Nominal Output Power

166 W LXM32.U60N4 1.5 A, 480 V, three phase
166 W LXM32.U60N4 1.5 A, 400 V, three phase
77 W LXM32.U45M2 1.5 A, 230 V, single phase

Carbon Footprint Of The Manufacturing Phase A1 To A3

3 kg CO2 eq.
2.7449351351

Peak Stall Torque

0.8 N.m LXM32.U60N4 1.5 A, 480 V, three phase
0.8 N.m LXM32.U60N4 1.5 A, 400 V, three phase
0.8 N.m LXM32.U45M2 1.5 A, 230 V, single phase

Accessories

LXM32CU60N4
LXM32AU60N4
LXM32MU60N4
LXM32SU60N4

Stator Electrical Time Constant

0.85 ms 20 °C

Stator Resistance

17.2 Ohm 20 °C

Stator Inductance

7.3 mH 20 °C

Carbon Footprint Of The Use Phase B2 B3 B4 B6

195 kg CO2 eq.
195.2821462945

Nominal Torque

0.18 N.m full speed
0.2 N.m half speed
0.176 N.m LXM32.U60N4 1.5 A, 480 V, three phase
0.176 N.m LXM32.U60N4 1.5 A, 400 V, three phase
0.184 N.m LXM32.U45M2 1.5 A, 230 V, single phase

Carbon Footprint Of The Distribution Phase A4

0.0808937838
0.1 kg CO2 eq.

Continuous Stall Torque

0.21 N.m LXM32.U60N4 1.5 A, 480 V, three phase
0.21 N.m LXM32.U60N4 1.5 A, 400 V, three phase
0.21 N.m LXM32.U45M2 1.5 A, 230 V, single phase

Device Short Name

Torque Constant

0.19 N.m/A 120 °C

Maximum Current IRMS

4.7 A LXM32.U60N4 480 V
4.7 A LXM32.U60N4 400 V
4.7 A LXM32.U45M2 230 V
4.5 A

Assets

CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000274_3D-CAD

Physical Attributes

Key Width : 12 mm
Motor Flange Size : 40 mm
Shaft Length : 25 mm

Complementary Attributes

Maximum Ambient Air Temperature For Operation : 60.0 °C
Maximum Mechanical Speed : 10000 rpm
Maximum Operational Altitude : 3000.0 m
Minimum Ambient Air Temperature For Operation : -20.0 °C
Minimum Operational Altitude : 0.0 m
Maximum In Rated Current : 1.02 A

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 2024-05-22
Device Type : Motion - drive & motor
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 15 year(s)
Manufacturing Carbon Footprint : 2.7449351351
Distribution Carbon Footprint : 0.0808937838
Installation Carbon Footprint : 0.0055622757
Use Carbon Footprint : 195.2821462945
End Of Life Carbon Footprint : 0.0590828108
Legacy WEEE Scope : In
WEEE Product Category : 5
Scope Perimeter : At least in Europe
EOLI Availability Display : No need of specific recycling operations
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant with Exemptions
ROHS EUR Conformity Date : 1905
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 5
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : N
WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
Centring Collar Diameter : 30 mm
Circle Diameter Of The Mounting Holes : 46 mm
Coefficient 1 1 : -3.6667E-06 N.m/rpm
Coefficient 1 2 : 0 N.m/rpm²
Coefficient 1 3 : 0 N.m/rpm3
Coefficient 1 4 : 0 N.m/rpm4
Coefficient 1 5 : 0 N.m/rpm5
Coefficient 1 6 : 0 N.m/rpm6
Coefficient 2 0 : 0.0188241649361797 N.m
Coefficient 2 1 : 1.18333333333333E-06 N.m/rpm
Continuous Stall Current : 1.12 A
Derating Altitude Scale : 80.0 m
Derating Altitude Start : 1000.0 m
Derating Temperature Scale : 20.0 °C
Derating Temperature Start : 40.0 °C
Feedback Type : multiturn SinCos Hiperface
Holding Brake : without
Maximum Operational Altitude : 3000.0 m
Minimum Ambient Air Temperature For Operation : -20.0 °C
Minimum Operational Altitude : 0.0 m
Motor Figures : 400.0 V
Motor Voltage Drop Coefficient : 1
Mounting Holes Diameter : 4.5 mm
Network Number Of Phases : 3
Number Of Motor Poles : 5.0
Number Of Motor Stacks : 1
Package Weight Lbs : 627.0 g
Peak Nominal Torque : 0.72 N.m
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : servo motor
Returnability : No
Rotor Inertia : 0.0232 kg.cm²
Saturation Coefficient : -0.0175957658702008
Second Shaft : without second shaft end
Shaft Diameter : 8 mm
Shaft End : keyed
Sizing Reference : BSH0401P
Sustainable Packaging : No
Temperature Copper Hot : 120 °C
Temperature Magnet Hot : 100 °C
Temperature Magnet RT : 20 °C
Total Lifecycle Carbon Footprint : 198 kg CO2 eq.
Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum In Rated Current : 1.02 A
Carbon Footprint Kg Co2 Eq Total Life Cycle : 198.1726202999
Relationship Type : Compatible relationship
Pep Code : ENVPEP111049EN
Pep Verification Date : 2020-08-01
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review
Product Weight In G : 627
Functional Unit Description : Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional Unit Quantity : 1
Functional Unit Unit : unit
Reference Lifetime In Y : 10
Energy Consumption On Product Lifetime In Kwh : 398.58
Nbr Of Units In Pkg : 1
Warranty In Months : 18
Energy Model Manufacturing A1 A3 : Energy model used: Germany
Energy Model Installation A5 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model Use B6 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model End Of Life C1 C4 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Components For Re Use Kg Total Life Cycle : 0
Components For Re Use Kg Manufacturing A1 A3 : 0
Components For Re Use Kg Distribution A4 : 0
Components For Re Use Kg Installation A5 : 0
Components For Re Use Kg Operational Energy Use B6 : 0
Components For Re Use Kg End Of Life C1 C4 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000221503
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0002045299
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000032
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000002
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000169681
Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000016
Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 2242.7182621864
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 24.2704459459
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 1.1365337838
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0714402568
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 2216.625120308
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.6147218919
Exported Energy Mj By Energy Vector Total Life Cycle : 0.0003074957
Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0000289044
Exported Energy Mj By Energy Vector Distribution A4 : 0
Exported Energy Mj By Energy Vector Installation A5 : 0.0002785914
Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
Hazardous Waste Disposed Of Kg Total Life Cycle : 10.4029955224
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 9.6876891892
Hazardous Waste Disposed Of Kg Distribution A4 : 0
Hazardous Waste Disposed Of Kg Installation A5 : 0.0000012788
Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.1018078922
Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.6134971622
Materials For Energy Recovery Kg Total Life Cycle : 0.0032771919
Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
Materials For Energy Recovery Kg Distribution A4 : 0
Materials For Energy Recovery Kg Installation A5 : 0
Materials For Energy Recovery Kg Operational Energy Use B6 : 0
Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0032771919
Materials For Recycling Kg Total Life Cycle : 0.5994420405
Materials For Recycling Kg Manufacturing A1 A3 : 0.0592283919
Materials For Recycling Kg Distribution A4 : 0
Materials For Recycling Kg Installation A5 : 0.0975547297
Materials For Recycling Kg Operational Energy Use B6 : 0
Materials For Recycling Kg End Of Life C1 C4 : 0.4426589189
Net Use Of Fresh Water M3 Total Life Cycle : 708.1244635213
Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0498010541
Net Use Of Fresh Water M3 Distribution A4 : 0.0000072399
Net Use Of Fresh Water M3 Installation A5 : 0.0000007842
Net Use Of Fresh Water M3 Operational Energy Use B6 : 708.0745909528
Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000634903
Non Hazardous Waste Disposed Of Kg Total Life Cycle : 730.6792431156
Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2.5835635135
Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0028742635
Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0028617081
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 728.0875842156
Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0023594149
Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000171002
Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000043752
Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000002
Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000127216
Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000032
Radioactive Waste Disposed Of Kg Total Life Cycle : 0.4880938469
Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0018203797
Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000020471
Radioactive Waste Disposed Of Kg Installation A5 : 0.0000002157
Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.486267565
Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000036394
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3458.4770292479
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 52.2304864865
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1.1423108108
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0720464595
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 3404.2670837344
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.7651017568
Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 3957.6572783344
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 55.4625405405
Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 1.1438513514
Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0722174595
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 3900.2127045236
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.7659644595
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 499.180535681
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.2323621622
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0015243649
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.000171208
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 495.9456207892
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0008571568
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.6026440541
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.6026440541
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 3457.8739076263
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 51.6273648649
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1.1423108108
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0720464595
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 3404.2670837344
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.7651017568
Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.9242121622
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.9242121622
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 497.2562464918
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.308072973
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0015243649
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.000171208
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 495.9456207892
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0008571568
Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Secondary Materials Kg Total Life Cycle : 0.1937383784
Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.1937383784
Use Of Secondary Materials Kg Distribution A4 : 0
Use Of Secondary Materials Kg Installation A5 : 0
Use Of Secondary Materials Kg Operational Energy Use B6 : 0
Use Of Secondary Materials Kg End Of Life C1 C4 : 0
Air Pollution M3 Total Life Cycle : 9197.2754363052
Air Pollution M3 Manufacturing A1 A3 : 783.1337837838
Air Pollution M3 Distribution A4 : 3.4412594595
Air Pollution M3 Installation A5 : 0.2400316216
Air Pollution M3 Operational Energy Use B6 : 8405.0192492782
Air Pollution M3 End Of Life C1 C4 : 5.4411121622
Water Pollution M3 Total Life Cycle : 8283.010470399
Water Pollution M3 Manufacturing A1 A3 : 204.6531081081
Water Pollution M3 Distribution A4 : 13.3033378378
Water Pollution M3 Installation A5 : 0.8355121622
Water Pollution M3 Operational Energy Use B6 : 8058.1857555342
Water Pollution M3 End Of Life C1 C4 : 6.0327567568
Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.8242821553
Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0456007452
Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0503528578
Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0091592838
Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0003693677
Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.000023115
Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.8145769971
Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0001533916
Global Warming Kg Equivalent Co2 Total Life Cycle : 198.1726202999
Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 2.7449351351
Global Warming Kg Equivalent Co2 Distribution A4 : 0.0808937838
Global Warming Kg Equivalent Co2 Installation A5 : 0.0055622757
Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 195.2821462945
Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.0590828108
Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0007963054
Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000263579
Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000017294
Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0447599134
Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000164391
Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0010404041
Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000850764
Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000063998
Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.0491829163
Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000380614

General Attributes

Product Or Component Type : servo motor

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=442575253&lang=en-us
Take Back : No
Recycled Metal Content At Cr Level : 0 %
China ROHS Regulation : X
Mercury Free : Yes
Carbon Footprint : 198.1726202999
Environmental Disclosure : ENVPEP111049EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Pep Code : ENVPEP111049EN
Pep Verification Date : 2020-08-01
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review

Specifications

Country of Origin : Germany

servo motor BSH, Lexium 32, 0.21N.m, 9000rpm, 40mm, keyed shaft, 16 Sincos Multi turn, without brake, IP65

AC SERVO MOTOR BSH - 0.21N.M -

characters left.
