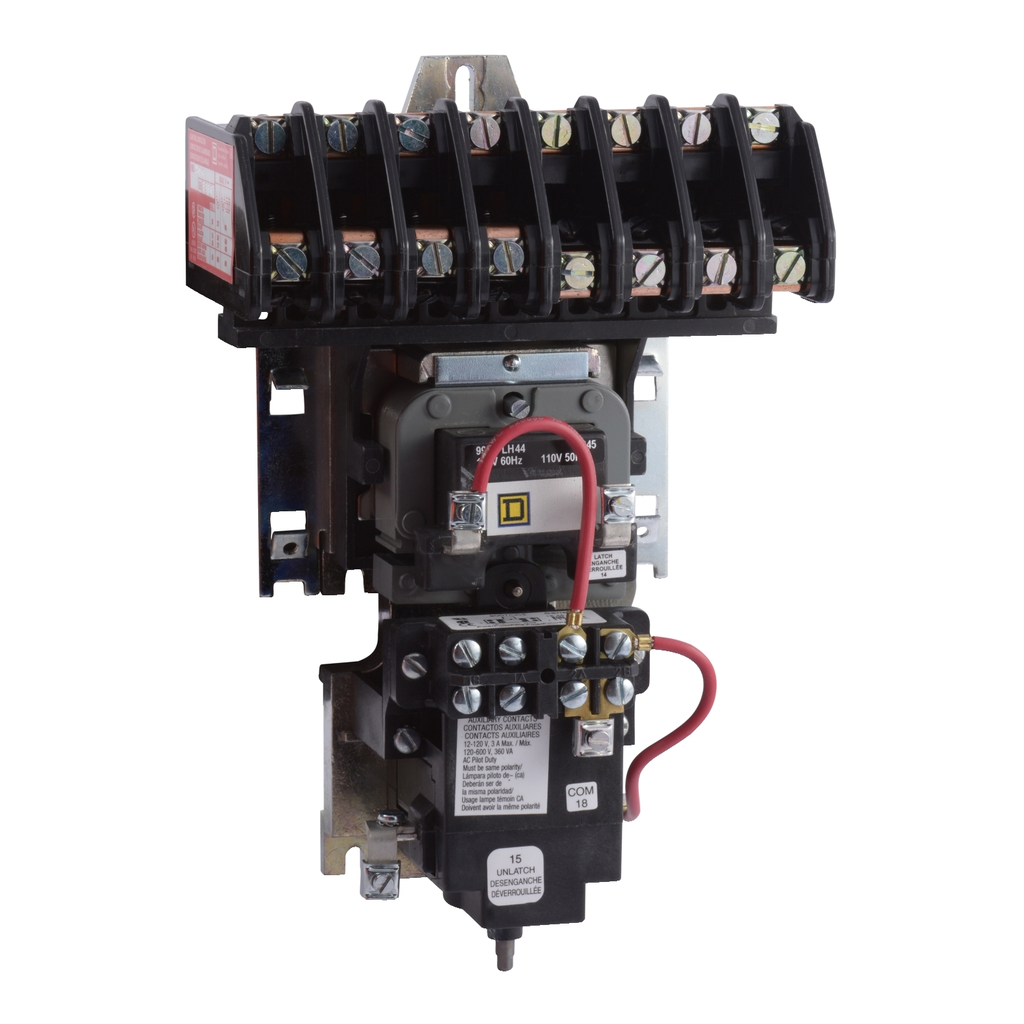

8903L/LX multipole lighting contactors are for lighting control applications. 8903L/LX lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from NO to NC. This 8 pole device has 4 NO 4 NC contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600VAC. This unit is supplied with 110/120VAC 50/60Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Coil and contacts are easily replaced. Contactor is an open style, but a variety of enclosure types are available. A wide variety of accessories are available for Type L/LX lighting contactors. 8903L/LX lighting contactors are UL Listed and CSA Certified.

• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 20-20 A tungsten, 20-20 A tungsten, 30-30 A fluorescent, 30-30 A fluorescent
• UC Control Circuit Voltage : 110 V AC 50 Hz, 110 V AC 50 Hz, 110 V AC 50 Hz, 120 V AC 60 Hz, 120 V AC 60 Hz, 120 V AC 60 Hz
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Inrush Power In VA : 180-180 VA 60 Hz, 180-180 VA 60 Hz, 25-25 VA 50 Hz, 25-25 VA 50 Hz, 170-170 VA 50/60 Hz, 170-170 VA 50/60 Hz
• Poles Description : 8P 4 NO + 4 NC, 8P 4 NO + 4 NC
• Carbon Footprint Of The Distribution Phase A4 : 1.7699436379951825, 2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 3 kg CO2 eq., 3.0049610661342263
• Carbon Footprint Of The Installation Phase A5 : 0.2897368657076023, 0.3 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 16 kg CO2 eq., 16.232052294182946
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 138 kg CO2 eq., 138.17819458769628
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• Additional Included Device : none
• Control Type : no control units
• Halogen Free Status : Halogen free plastic parts product
• Local Signalling : no indicator
• Package Weight Lbs : 2.132 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Mechanically Held Lighting Contactor
• Range Of Product : 8903LX
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 159 kg CO2 eq.
• Relationship Type : Spare part relationship
• Pep Code : ENVPEP1407018EN
• Pep Verification Date : 2025-10-15
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Compliant
• Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 159.47488845171625
• Environmental Disclosure : ENVPEP1407018EN
• Halogen Content Performance : Halogen free plastic parts product
• Nema Degree Of Protection : not rated (open device)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Pep Code : ENVPEP1407018EN
• Pep Verification Date : 2025-10-15
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : Mechanically Held Lighting Contactor
• Range Of Product : 8903LX
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Compliance : TAA
