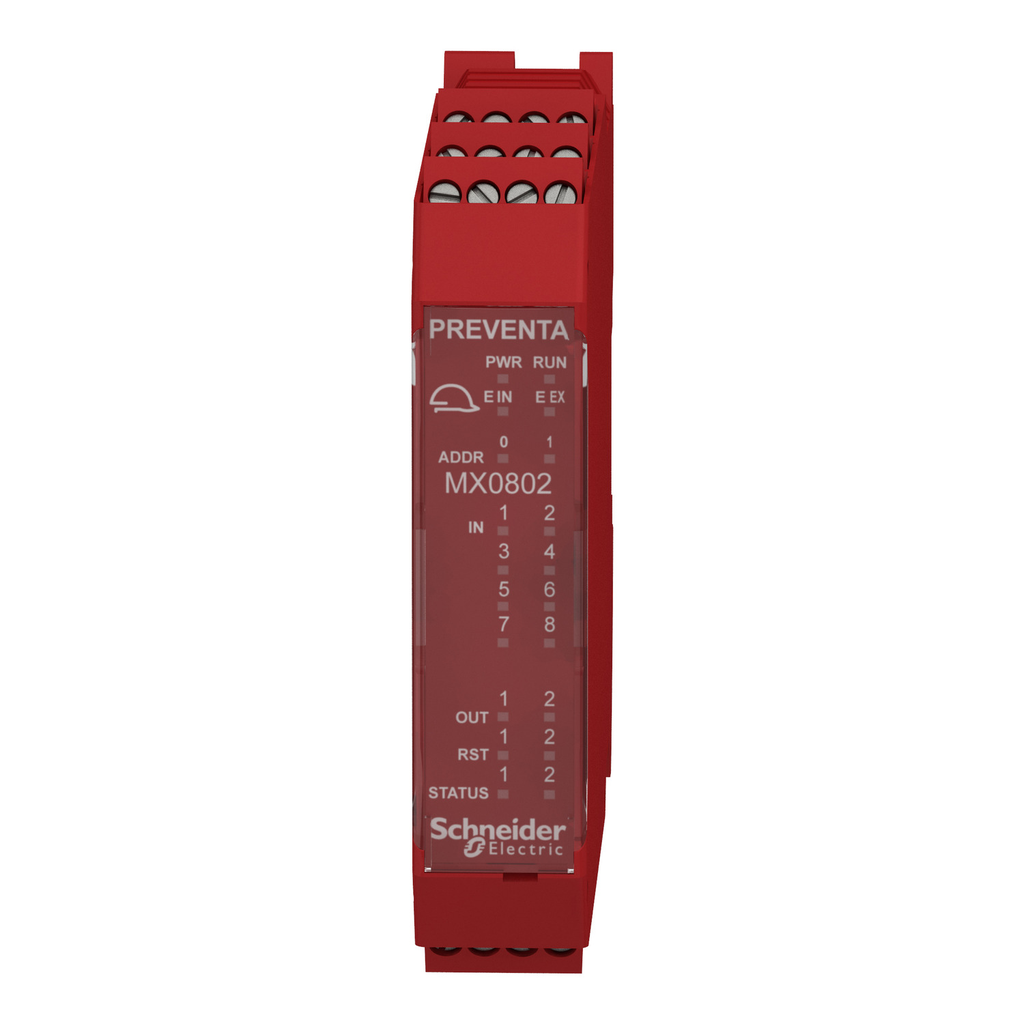

This Modicon MCM safe mixed I/O expansion module has 8 digital inputs, 2 start/restart interlock inputs, 2 output OSSD pairs, 4 test outputs and 2 status outputs and is fitted with captive screw clamp terminals. It is designed to monitor remotely your sa

• Safety Reliability Data
• DC > 99 %
• MTTFd < 100 years high
• PFHd = 5.72E-9 1/h
• Connections Terminals
• 2 captive screw clamp terminals, removable terminal block
• 1 captive screw clamp terminals, removable terminal block
• Mounting Support
• omega 35 mm DIN rail EN 50022
• Uimp Rated Impulse Withstand Voltage
• 4 kV IEC 61800-5-1
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Function Of Module
• monitoring safety detection discrete input
• monitoring safety dialogue discrete input
• monitoring safety actuators discrete output
• monitoring safety actuators discrete out
• Standards
• IEC 61800-5-1
• IEC 61508
• ISO 13849-1
• IEC 62061
• Ip Degree Of Protection
• IP20 enclosure)
• Discrete Input Voltage
• 24 V DC
• Vibration Resistance
• +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
• Safety Level
• can reach category 4 ISO 13849-1
• can reach PL = e ISO 13849-1
• can reach SIL 3 IEC 61508
• SILCL 3 IEC 62061
• Discrete Output Current
• 400 mA
• 100 mA
• Number Of Inputs
• 8 digital
• 2 digital external device monitoring
• Electromagnetic Compatibility
• electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2
• electrostatic discharge immunity test - test level: 6 kV (
• Number Of Outputs
• 4 test line control
• 2 safety outputs OSSD contactor/drive connection
• 2 configurable diagnostic connection
• 2 configur
• Us Rated Supply Voltage
• 24 V - 20...20 % DC
• Cable Cross Section
• 0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end
• 0.2-2.5 mm² - AWG 24...AWG
• Insulation
• 250 V AC between power supply and housing IEC 61800-5-1
• Shock Resistance
• 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
• Local Signalling
• 1 LED green PWR power ON
• 1 LED green RUN RUN (status)
• 1 LED red E IN internal error
• 1 LED re
• Product Certifications
• cULus
• TÜV
• RCM
• Discrete Output Voltage
• 24 V DC

• Complementary Attributes
• Integrated Connection Type : backplane expansion bus
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Etim 10 : EC001449
• Html Descr : 8 inputs 2 output pairs expansion module with screw term
• Manufacturer : Schneider Electric
• Baan Price : 1216.37
• Baan Currency : USD
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1847
• Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Device Short Name : XPSMCM
• Electrical Connection : screw terminal
• Load Type : resistive load
• Number Of Terminal Blocks : 6
• Overvoltage Category : II
• Package Weight Lbs : 251.000 g
• Power Consumption In W : 3 W
• Power Dissipation In W : 3 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : safe mixed I/O expansion module
• Quality Labels : CE
• Range Of Product : Preventa Safety automation
• Returnability : Yes
• Service Life : 20 year(s)
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationshiptype : Compatible relationship
• Accessories : XPSMCMCN0000SG
• General Attributes
• Product Or Component Type : safe mixed I/O expansion module
• Range Of Product : Preventa Safety automation
• ETIM
• ETIM 8 : EC001449
• ETIM 9 : EC001449
• Output Attributes
• Discrete Output Type : PNP
• Output Load : 60 Ohm
• Environment Attributes
• Take Back : No
• Reach Free Shvc : Yes
• China Rohs Regulation : X
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -10-55 °C
• Ambient Air Temperature For Storage : -20-85 °C
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Relative Humidity : 10-95 %
• Input Attributes
• Discrete Input Type : isolated
• Specifications
• Country of Origin : Italy
• Height : 3.9 in
• Width : 4.51 in
• Depth : 0.89 in
