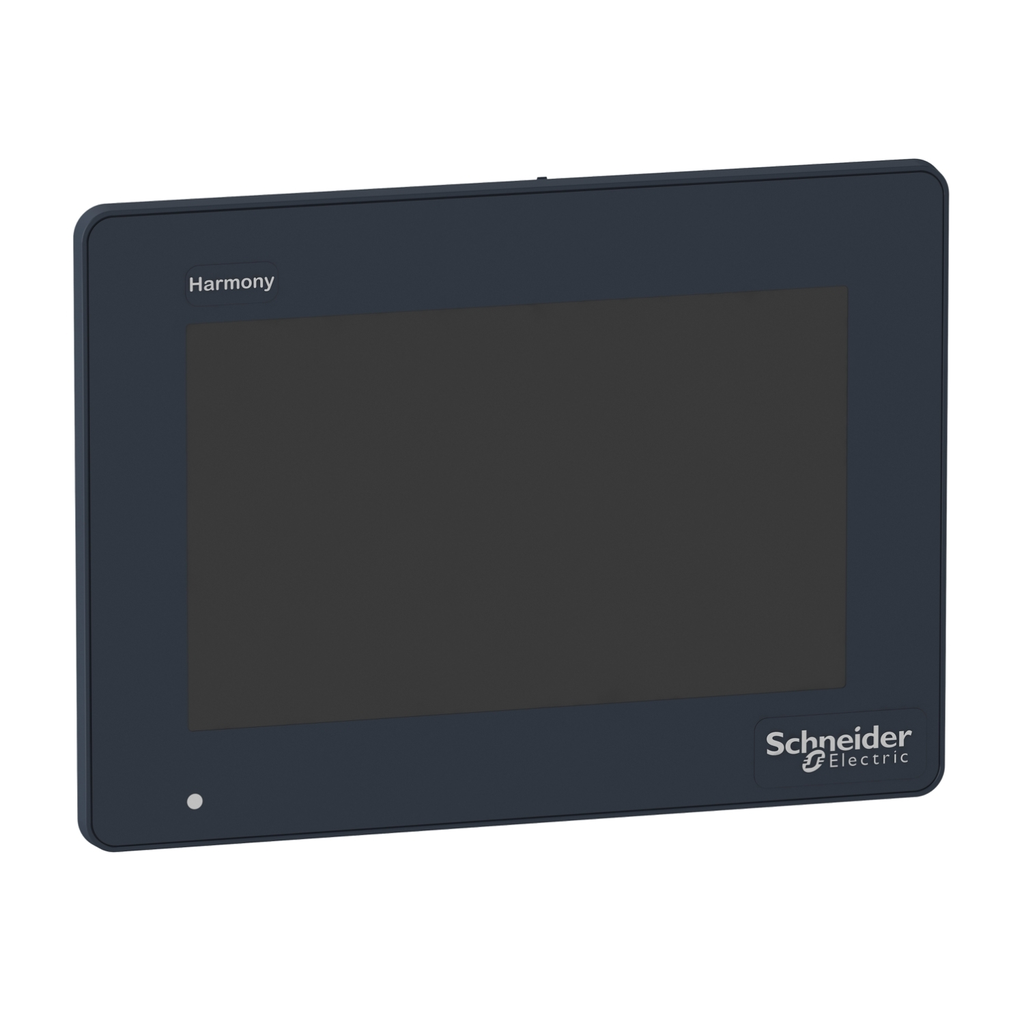

Advanced touchscreen panel, Harmony GTU, 7 W Touch Display WVGA, coated display

Name: Advanced touchscreen panel, Harmony GTU, 7 W Touch Display WVGA, coated display
Brand: SQUARE D
SKU: SQDHMIDT351FC
Price: 2200.42 USD
Availability: OutOfStock

HMIDT351 Conformal Coated

SQDHMIDT351FC HMIDT351FC 3606480841699

2200.42 / EA

http://schema.org/OutOfStock

Advanced touchscreen panel, Harmony GTU, 7 W Touch Display WVGA, coated display

Depth: 36 mm
Display Type: Colour TFT LCD

QTY

Features
Specifications

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Physical Attributes

Display Size : 7 inch
Display Color : 262144 colors

Conformance Attributes

Product Certifications : CE, UKCA, UKEX
Standards : UL 508

Complementary Attributes

Us Rated Supply Voltage : 12...24 V DC power supply

Important Information Attributes

Persona Type Ids : EU, OM, OM8, PB, SC, SI
Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation Id : COMMERCIAL, INDUSTRIAL
Market Segmentation : Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4 : 0.41508000000000006, 0.4 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.3063200000000001
Carbon Footprint Of The Installation Phase A5 : 0.42696, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3 : 70 kg CO2 eq., 69.73200000000001
Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 265 kg CO2 eq., 265.4373913043478
Local Data Status : Publishable
Local Publishable Date : 2026-01-12
Global Commercial Status : Commercialised
Return Indicator : N
Stocking Flag : Y
Stock Policy : 2
Device Type : HMI - Graphical display unit
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 7 year(s)
Weee Applicability : Finished product
Weee Scope : In
Legacy Weee Scope : In
Weee Product Category : 5
Scope Perimeter : At least in Europe
Eoli Availability Display : Yes
End Of Life Doc Ref : ENVEOLI1402017EN
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
Rohs Eur In Scope : No
Rohs Eur Status : Compliant By Exemption
Rohs Eur Conformity Date : 2514
Rohs Eur Full Compliance Status : Compliant By Exemption
China Rohs In Scope : Yes
China Rohs Label : 4
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Tier Id : 1
Tier : 1
Function Option Id : STANDARD
Function Option : Standard
Product Kit Identifier : N
Aspect Ratio : 4:3
Cut Out Dimensions : 190 (+ 1/- 0) x 135 (+ 1/- 0) mm
Display Resolution : 800 x 480 pixels WVGA
Display Type : colour TFT LCD
Electromagnetic Compatibility : electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen Free Status : Product contains halogen above thresholds
Inrush Current : 30 A
Pixel Resolution : 800 x 480
Power Consumption In W : 6.5 W
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : advanced touchscreen panel
Provided Equipment : 1 flash card
Range Of Product : Harmony GTU
Returnability : No
Shock Resistance : 147 m/s²IEC 61131-2
Software Version : v5.9.4
Supply Voltage Limits : 10.8-28.8 V
Sustainable Packaging : No
Terminal Type : touchscreen display
Total Lifecycle Carbon Footprint : 337 kg CO2 eq.
Touch Panel : single touch analogue resistive
Touchscreen Resolution : 1024 x 1024
Type Of Cooling : natural convection
Vibration Resistance : 3.5 mm constant amplitude 5-9 Hz) IEC 61131-2
Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Display Color : 262144 colors
Silicone Free : No
Warranty In Months : 18
Pep Code : ENVPEP1402017EN
Database Version : 2022-01
Pep Verification Date : 2023-12-18
Pcr Version : PEP-PCR-ed4-2021 09 06
Psr Version : PSR-0005-ed2-2016 03 29
Type Of Verification For The Pep : Independent internal review
Data Source : extrapolated product
Functional Unit Description : To provide 12" Wide TFT Smart Display during 10 years and maximum use rate at 11.5W, based on below function:& 10 - 12" Wide Touchscreen panel& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2
Functional Unit Quantity : 1
Functional Unit Unit : Unit
Product Weight In G2 : 1440
Reference Lifetime In Y2 : 10
Energy Consumption On Product Lifetime In Kwh : 569.4
Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; ID
Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US
Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US
Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In 2 : 56
Offer Owner Code : 190786
Height Nominal : 148.6 mm
Width Nominal : 203.6 mm
Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 2 : 69.444
Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D 2 : -6.9724
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 2 : 4.4412
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 2 : 62.58
Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D 2 : -102.268
Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 2 : 938.68
Ecotoxicity Fresh Water Ctue End Of Life C1 C4 2 : 148.764
Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D 2 : -431.24
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 2 : 83.096
Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 2 : 73.772
Materials For Recycling Kg Installation A5 2 : 0.236
Materials For Recycling Kg End Of Life C1 C4 2 : 0.666
Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D 2 : -16.1576
Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 2 : 1.0216
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2 : 4.9788
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 4.9788
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D 2 : -0.0752
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 2 : 969.44
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 2 : 62.584
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D 2 : -5.3464
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2 : 4.9788
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 4.9788
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D 2 : -0.0752
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 951.84
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 2 : 4.4412
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2 : 62.58
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2 : 4.5324
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 4.5324
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D 2 : -4.2192
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 8.0976

Environment Attributes Main

Ambient Air Temperature For Storage : -20-60 °C, -20-60 °C
Take Back : Nej
Halogene Performance : Product contains halogen above thresholds
Recycled Metal Content At Cr Level : 0 %
China Rohs Regulation : X
Mercury Free : Yes
Silicon Free : No
Carbon Footprint : 337.31775130434784
Ambient Air Temperature For Operation : 0-60 °C IEC 61131-2
Circularity Profile : ENVEOLI1402017EN
Environmental Disclosure : ENVPEP1402017EN
Eu Rohs Directive : Compliant By Exemption
F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen Content Performance : Product contains halogen above thresholds
Ip Degree Of Protection : front panel IP66
Nema Degree Of Protection : NEMA 4X front panel
Operating Altitude : 6561.68 ft (2000 m)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Relative Humidity : 10-90 % non-condensing
Pep Code : ENVPEP1402017EN
Pep Verification Date : 2023-12-18
Pcr Version : PEP-PCR-ed4-2021 09 06
Psr Version : PSR-0005-ed2-2016 03 29
Type Of Verification For The Pep : Independent internal review

General Attributes

Product Or Component Type : advanced touchscreen panel
Provided Equipment : 1 flash card
Range Of Product : Harmony GTU

ETIM

ETIM 8 : EC001412
ETIM 9 : EC001412

Specifications

Depth : 36 mm

Advanced touchscreen panel, Harmony GTU, 7 W Touch Display WVGA, coated display

HMIDT351 Conformal Coated
