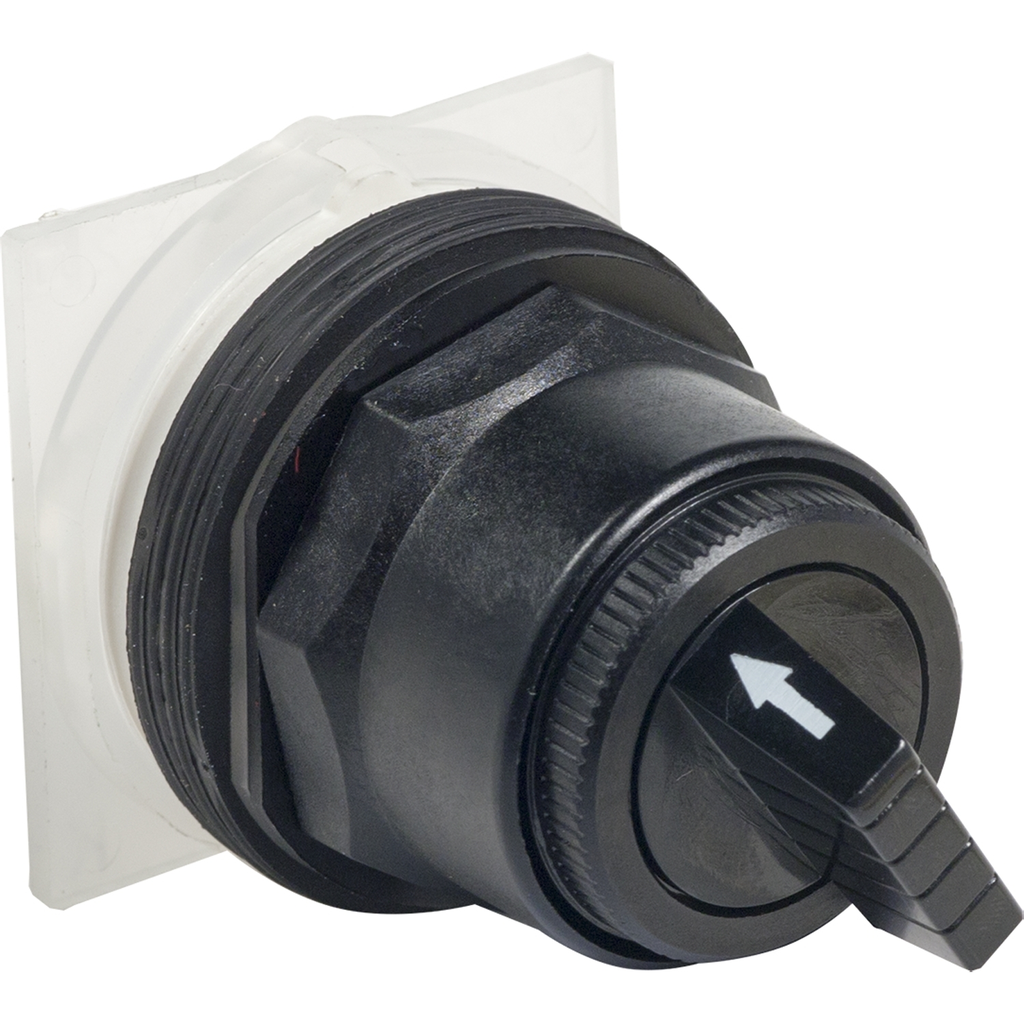

Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 2 positions, spring return right to left

SQD 9001SKS34B SELECTOR SWITCH

SQD9001SKS34B 9001SKS34B 785901043652
96.30 / EA
http://schema.org/OutOfStock
Mayer-DDS-Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 2 positions, spring return right to left-1
  • Bezel Material: Plastic
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
This selector switch 2 position provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
QTY
  • Product Description
  • Features
  • Specifications
This selector switch 2 position provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/4X/6/12/13
    • Electrical Shock Protection Class : class II conforming to IEC 61140
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP120820EN
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Cam Profile : 4
    • Mounting Diameter : 30 mm
    • Operator Profile : standard handle
    • Cap/Operator Or Lens Colour : black
    • Size : 30 mm
    • Device Presentation : basic element
    • Contacts Type And Composition : without contact block
    • Bezel Material : plastic
    • Operator Position Information : 2 positions
    • Type Of Operator : spring return
    • Return : right to left
  • Specifications
    • Country of Origin : Mexico
    • Range Of Product : Harmony 9001SK
    • Product Or Component Type : head for selector switch
    • Device Short Name : 9001SK
