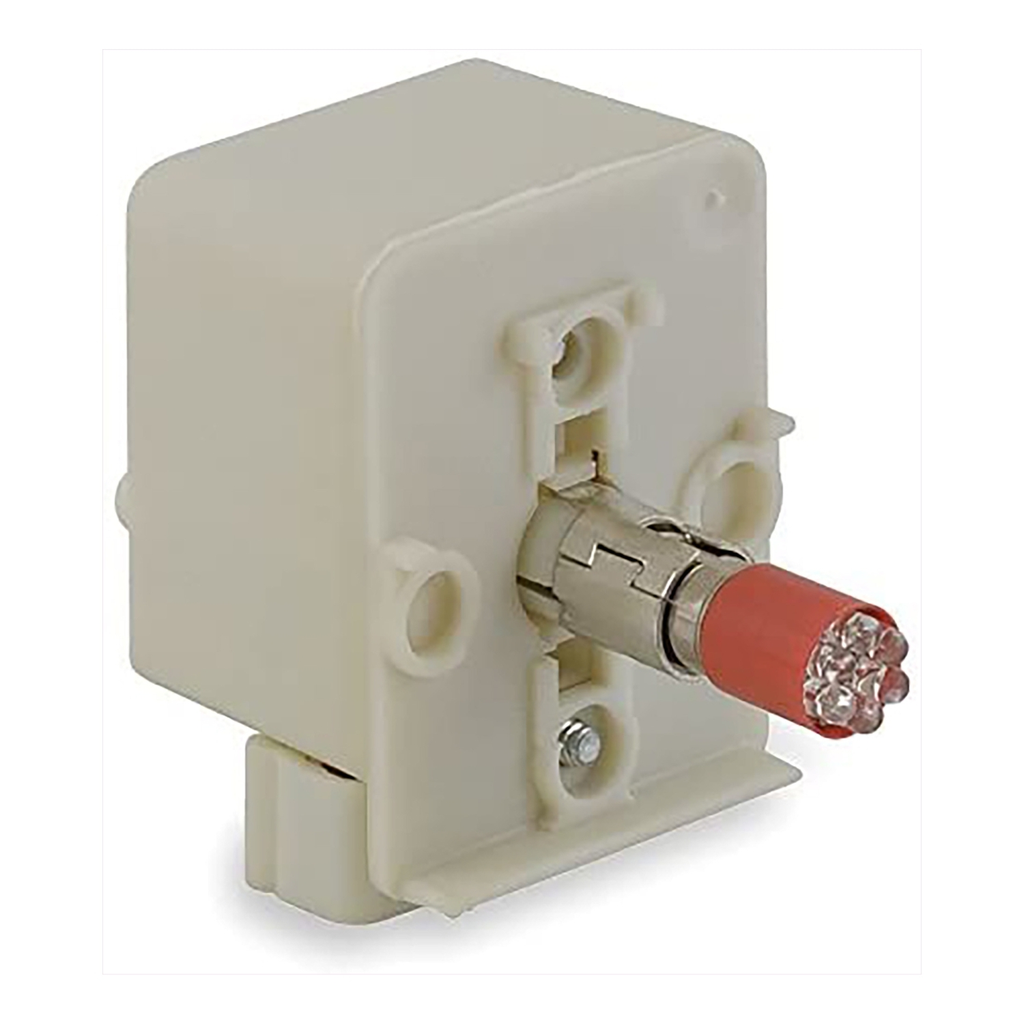

Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 24 to 28 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a red LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or red lens cap. These light modules are UL Listed and CSA certified.

• Features
• Improved security thanks to finger-safe contact blocks and light modules
• Robustness to withstand the harshest environments
• Easy, secure mounting system
• Automatic self-grounding operators without additional wiring
• A large metal set of accessories to customize your product
• Single screw Contact Block Fastening
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL Listed, CSA, NEMA
• Standards : UL 508, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C 4520, JIS C 852
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Product Or Component Type : light module, light block
• Range Of Product : Harmony 9001K, Harmony 9001SK
• Us Rated Supply Voltage2 : 24...28 V AC 50...60 Hz, 24...28 V DC
• Carbon Footprint Of The Distribution Phase A4 : 0.03927191429621943, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.1594941734381087
• Carbon Footprint Of The Installation Phase A5 : 0.0005357807567982101, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.4 kg CO2 eq., 0.3962036601455505
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Us Rated Supply Voltage5 : 24...28 V AC 50...60 Hz, 24...28 V DC
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Bulb Base : BA 9s
• Device Short Name : 9001K
• Electrical Shock Protection Class : class II conforming to IEC 61140
• Light Block Supply : direct via integral resistance 0.28 VA
• Light Source : LED (bulb included)
• Package Weight Lbs : 72.6 g
• Product Availability : Stock - Normally stocked in distribution facility
• Protective Treatment : TC
• Returnability : Yes
• Shock Resistance : 50 gn IEC 60068-2-27
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.6 kg CO2 eq.
• Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Medium Desc : Light module, light block, Harmony 9001K, Harmony 9001SK, Harmony 9001SK, 30mm, LED red, 24...28V
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2503027EN
• Database Version : 2024-01
• Pep Verification Date : 2025-03-26
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; High voltage; 2020; Mexico, MX
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• Ambient Air Temperature For Operation : -25-70 °C, -13-158 °F
• Ambient Air Temperature For Storage : -40-70 °C, -40-158 °F
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 0.5955055286366768
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• IP Degree Of Protection : IP10 IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503027EN
• Pep Verification Date : 2025-03-26
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3-2023 06 06
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : light module, light block
• Range Of Product : Harmony 9001K, Harmony 9001SK
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
