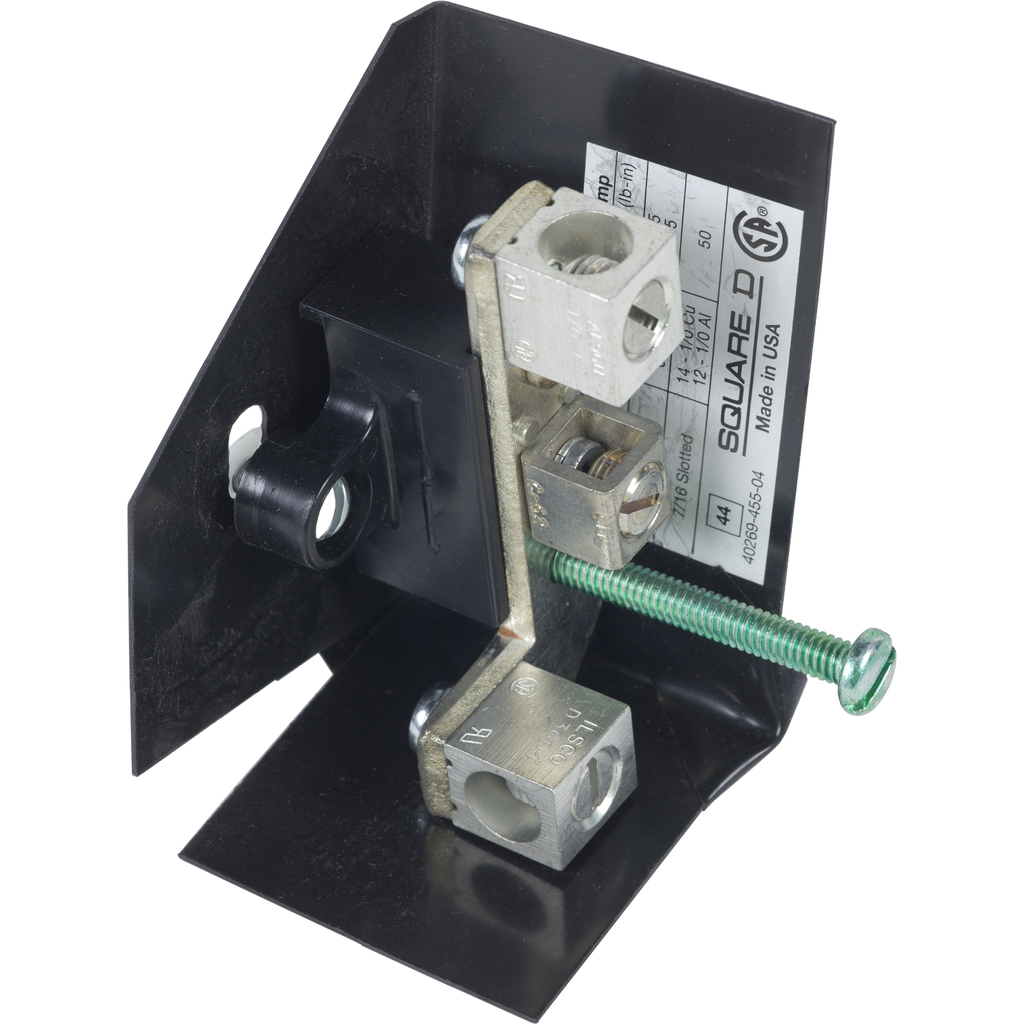

Safety switch accessory, solid neutral assembly, copper or aluminium, 100A rated maximum

HDSS NEUTRAL ASSY FOR 60 &100A

SQD100SNA 100SNA 785901195986
163.71 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch accessory, solid neutral assembly, copper or aluminium, 100A rated maximum-1
  • Warranty Length: 18 mth
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. These switches come on fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This safety switch accessory is a field-installed standard neutral kit for 60-100A rated heavy duty safety switches. Terminal data for this assembly is (2) 14–1/0 aluminum/copper or (2) 12–1/0 Al plus (1) 14–4 aluminum/copper. Safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
QTY
  • Product Description
  • Features
  • Specifications
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. These switches come on fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This safety switch accessory is a field-installed standard neutral kit for 60-100A rated heavy duty safety switches. Terminal data for this assembly is (2) 14–1/0 aluminum/copper or (2) 12–1/0 Al plus (1) 14–4 aluminum/copper. Safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Line Rated Current : 30 A, 60 A, 100 A
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • AWG Gauge : AWG 14...AWG 8 copper, AWG 6...AWG 4 copper, AWG 14...AWG 10 copper, AWG 12...AWG10 aluminium
    • Tightening Torque : 25 lb.in, AWG 14...AWG 8, copper, 45 lb.in, AWG 6...AWG 4, copper, 50 lb.in, AWG 14...AWG 10, copper, 50 lb.in, AWG 12...AWG10, aluminium
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 167.829 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : safety switch solid neutral assembly
    • Range Of Product : Square D
    • Returnability : No
    • Series Name : heavy duty
    • Sustainable Packaging : No
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
  • General Attributes
    • Product Or Component Type : safety switch solid neutral assembly
    • Range Of Product : Square D
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
