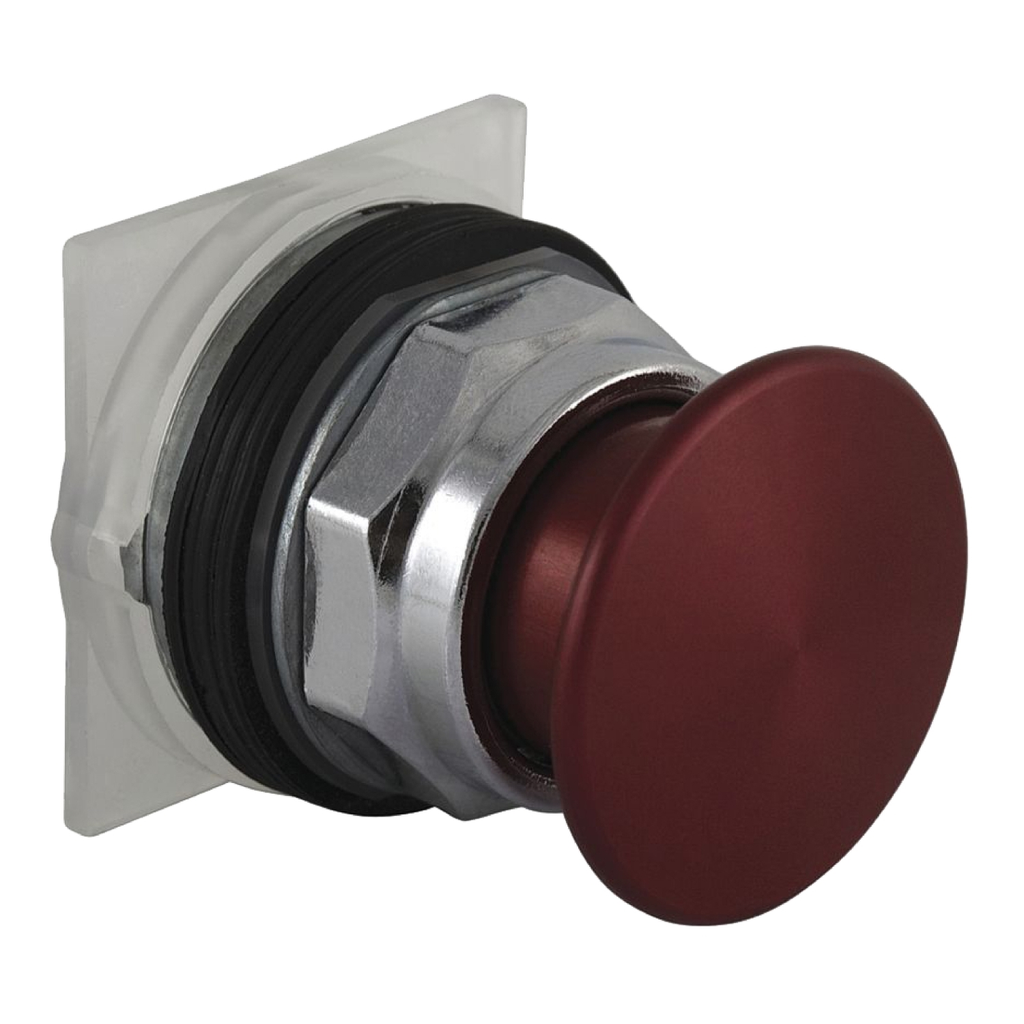

This 40mm mushroom shaped push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : UL 508 || NEMA
• Ambient Air Temperature For Operation : -25-70 °C
• Shock Resistance : 50 gn IEC 60068-2-27
• Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Ip Degree Of Protection : IP66 IEC 60529
• Standards : IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
• Ambient Air Temperature For Storage : -40-70 °C
• Overvoltage Category : class II conforming to IEC 61140
• Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
• Protective Treatment : TC
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Packaging Without Single Use Plastic : Yes
• Scip Number : ae0c4eb9-0bfb-40a4-851f-5c619fbe777d
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Take-Back : No
• Sustainable Packaging : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Operator Additional Information : screw-on metal with set screw
• Mounting Diameter : 30 mm
• Operator Profile : mushroom Ø 40 mm
• Shape Of Signaling Unit Head : round
• Cap/Operator Or Lens Colour : red
• Head Material : metal
• Net Weight : 0.141 kg
• Size : 30 mm
• Cad Overall Height : 45 mm
• Device Presentation : basic element
• Contacts Type And Composition : without contact block
• Bezel Material : metal
• Operator Position Information : 2 positions
• Mechanical Durability : 5000000 cycles
• Type Of Operator : push-pull
• Operating Position : any position
• Cad Overall Width : 45.5 mm
• Cad Overall Depth : 74 mm
• Specifications
• Country of Origin : United States
• Width : 45.5 mm
• Height : 45 mm
• Weight : 0.141 kg
• Range Of Product : Harmony 9001K
• Type Of Operator : push-pull
• Product Or Component Type : head for push-button
• Operator Profile : red mushroom Ø 40 mm, unmarked
• Product Compatibility : contact block 9001KA..
• Device Short Name : 9001K
