SQUARE D

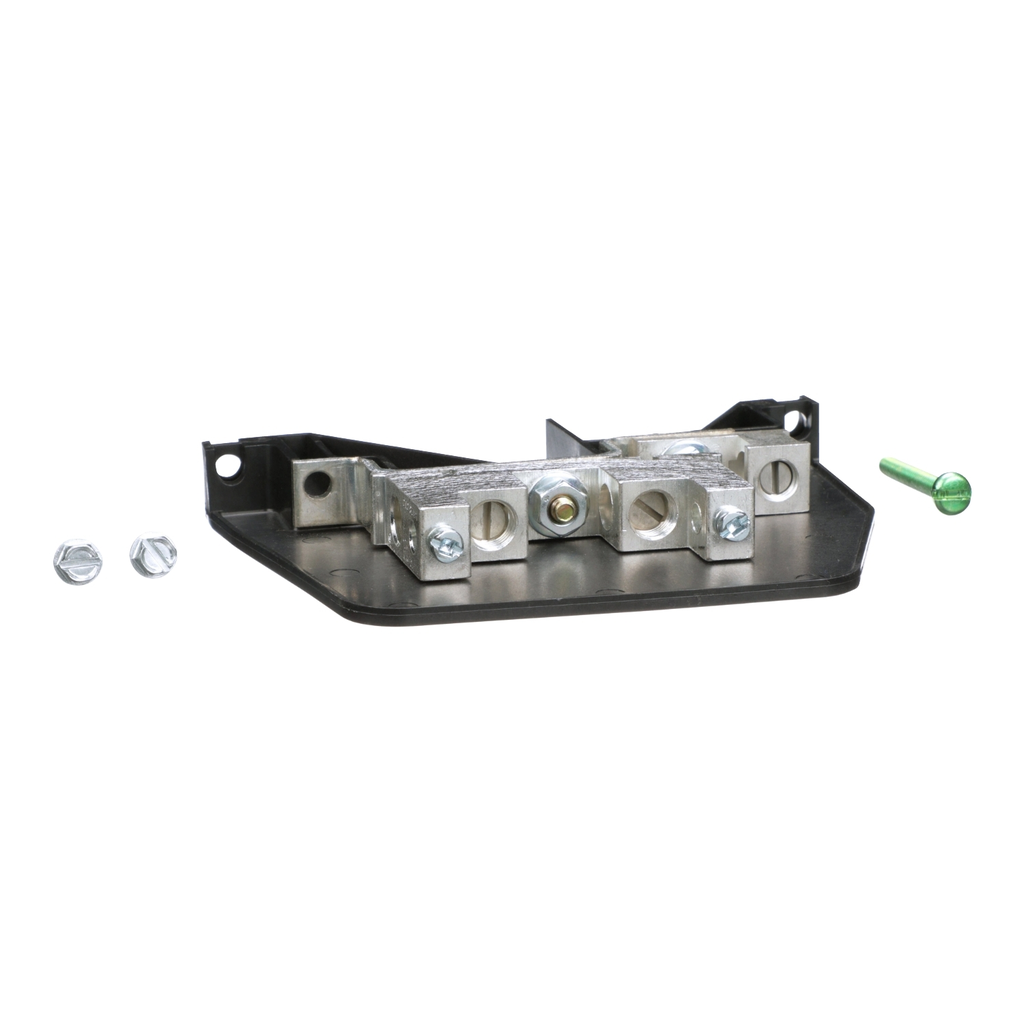

Safety switch accessory, solid neutral assembly, copper only, 30-100A rated maximum

Safety switch accessory, solid neutral assembly, copper only, 30-100A rated maximum

SQDSN0310C SN0310C 785901393450
133.74 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch accessory, solid neutral assembly, copper only, 30-100A rated maximum-1
  • Country of Origin: USA
  • Warranty Length: 18 mth
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. These switches come on fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This safety switch accessory is a field-installed standard neutral kit for 30-100A double throw safety switches. Terminal data for this assembly is (1) 14-1/0 copper. Safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
QTY
  • Product Description
  • Features
  • Specifications
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. These switches come on fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This safety switch accessory is a field-installed standard neutral kit for 30-100A double throw safety switches. Terminal data for this assembly is (1) 14-1/0 copper. Safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • OEM - Control Panelbuilder
    • Panel Builder
  • Line Rated Current
    • 30 A
    • 100 A
  • Persona Type Ids
    • LC
    • OM8
    • PB
  • Tightening Torque
    • 50 lb.in, AWG 3...AWG 1/0, copper
    • 45 lb.in, AWG 6...AWG 4, copper
    • 40 lb.in, AWG 8, copper
    • 35 lb.in, AWG 14...AWG 10, copper
  • AWG Gauge
    • AWG 14...AWG 1/0 copper
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Important Information Attributes
    • B2B Bullet Point 1 : Isolate power in daily activities and provide an effective way to interrupt power in an emergency
    • B2B Bullet Point 2 : Designed to satisfy individual requirements for all customers
    • B2B Bullet Point 3 : Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
    • B2B Bullet Point 4 : All feature a quick-make, quick-break operating mechanism, a dual cover interlock
    • B2B Bullet Point 5 : Designed to have a mechanical endurance three times greater than NEMA standards
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1918
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Package Weight Lbs : 498.952 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : safety switch solid neutral assembly
    • Range Of Product : Square D
    • Returnability : Yes
    • Series Name : heavy duty
    • Sustainable Packaging : No
    • Relationship Type : Compatible relationship
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : safety switch solid neutral assembly
    • Range Of Product : Square D
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=365873&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
