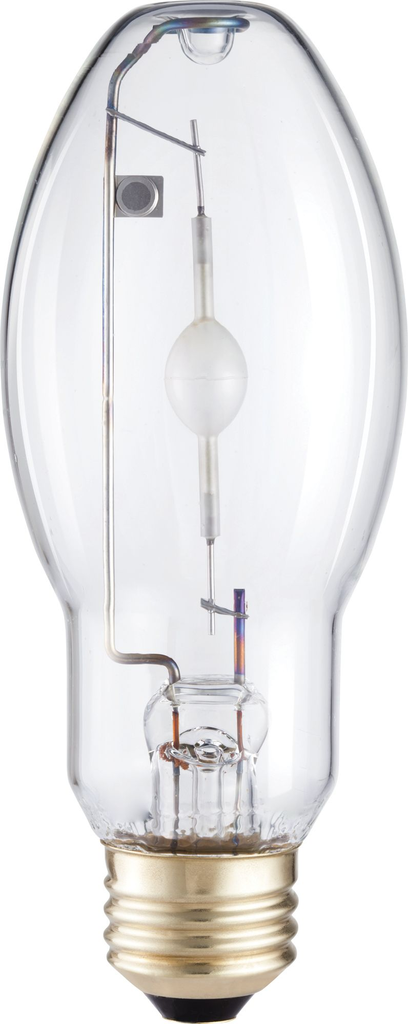

MasterColor Elite Ceramic Metal Halide ED-17 4200K Lamps provide excellent lumen maintenance and outstanding performance over time in the familiar ED-17 lamp shape.

• Benefits
• Excellent color - Up to 93 CRI (color rendering index)
• Color stability over life within +/- 200 K
• Lamp to lamp color consistency over life
• High lamp efficacy (up to 100 LPW)
• Elite 50W lamp provides 27% more initial lumens as compared to a standard MasterColor ED-17 50W lamp*
• Elite 50W lamp provides 50% more mean lumens as compared to a standard MasterColor ED-17 50W lamp+
• MasterColor Elite ED-17 4200K 50W Lamps provides 4779 initial lumnes compared to MasterColor ED-17 50W lamp at 3750 iniitial lumens.
• + MasterColor Elite ED-17 4200K 50W Lamps provides 3823 mean lumens compared to MasterColor ED-17 50W lamp at 2550 mean lumens.
• Warning And Safety
• WARNING: These lamps can cause serious skin burn and eye inflammation from short wave ultraviolet radiation if outer envelope ot the lamp is broken or puntured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precuations are used. Certain lamps that will automaticallly extinguish when the outer envelope is broken or punctured are commercially available." This lamp complies with FDA radiation performance standard 21 CFR subchapter J. (USA:21 CFR 1040.30 Canada: SOR/DORS/80-381)
• WARNING: The arc-tube of metal halide lamps are designed to operate under high pressure and at temperatures up to 1000ºC and can unexpectedly rupture due to internal or external factors such as a ballast failure or misapplication. If the arc-tube ruptures for any reason, the outer bulb may break and pieces of extremely hot glass might be discharged into the surrounding environment. If such a rupture were to happen, THERE IS A RISK OF PERSONAL INJURY, PROPERTY DAMAGE, BURNS AND FIRE.
• Certain lamps that will retain all the glass particles should inner arc tube rupture occur are commercially available from Philips Lighting Company.
• RELAMP FIXTURES AT OR BEFORE THE END OF RATED LIFE. Allowing lamps to operate until they fail is not advised and may increase the possibility of inner arc tube rupture.
• Lamp contains mercury. Manage in Accord with Disposal Laws. See: www.lamprecycle.org or 1-800-555-0050
• Features
• Application versatility
• Universal operating position
• Dimension, base and light center length are same as standard MasterColor ED-17 lamps
• Available in 50W, 70W and 100W Elite lamps.
• Applications
• Ideal for general lighting,downlighting,and flood lighting.

• Operating and Electrical
• Power (Rated) (Nom) : 70.4 W
• Lamp Current (Nom) : 0.91 A
• Re-Ignition Time (Min) (Max) : 8 min
• Ignition Time (Max) : 30 s
• Voltage (Max) : 110 V
• Voltage (Min) : 90 V
• Voltage (Nom) : 95 V
• Mechanical and Housing
• Bulb Finish : Clear
• Cap-Base Information : Brass [ Brass Cap]
• Bulb Material : Hard Glass
• Light Technical
• Color Code : 842 [ CCT of 4200K]
• Luminous Flux (Rated) (Min) : 6120 lm
• Luminous Flux (Rated) (Nom) : 6800 lm
• Color Designation : Cool White (CW)
• Lumen Maintenance - 40% Life : 80 %
• Lumen Maintenance - 10% Life : 90 %
• Design Mean Lumens : 5280 lm
• Chromaticity Coordinate X (Max) : 0.379
• Chromaticity Coordinate X (Min) : 0.361
• Chromaticity Coordinate X (Nom) : 0.37
• Chromaticity Coordinate Y (Max) : 0.366
• Chromaticity Coordinate Y (Min) : 0.354
• Chromaticity Coordinate Y (Nom) : 0.360
• Correlated Color Temperature (Nom) : 4200 K
• Luminous Efficacy (Rated) (Min) : 90 lm/W
• Luminous Efficacy (rated) (Nom) : 97 lm/W
• Color Rendering Index (Min) : 85
• Color Rendering Index (Nom) : 88
• Approval and Application
• Picogram Per Lumen Hour : 71 pg/lm.h
• Mercury (Hg) Content (Max) : 7.1 mg
• UV
• Pet (Niosh) (Nom) : 95 h/500lx
• Damage Factor D/fc (Nom) : 0.3
• Luminaire Design Requirements
• Bulb Temperature (Max) : 400 °C
• Cap-Base Temperature (Max) : 190 °C
• General Information
• Base : E26 [ Single Contact Medium Screw]
• Operating Position : Universal [ Universal]
• Main Application : General Lighting (G)
• Life to 50% Failures (Nom) : 20000 h
• ANSI Code HID : C98/E
• Features : ELITE
