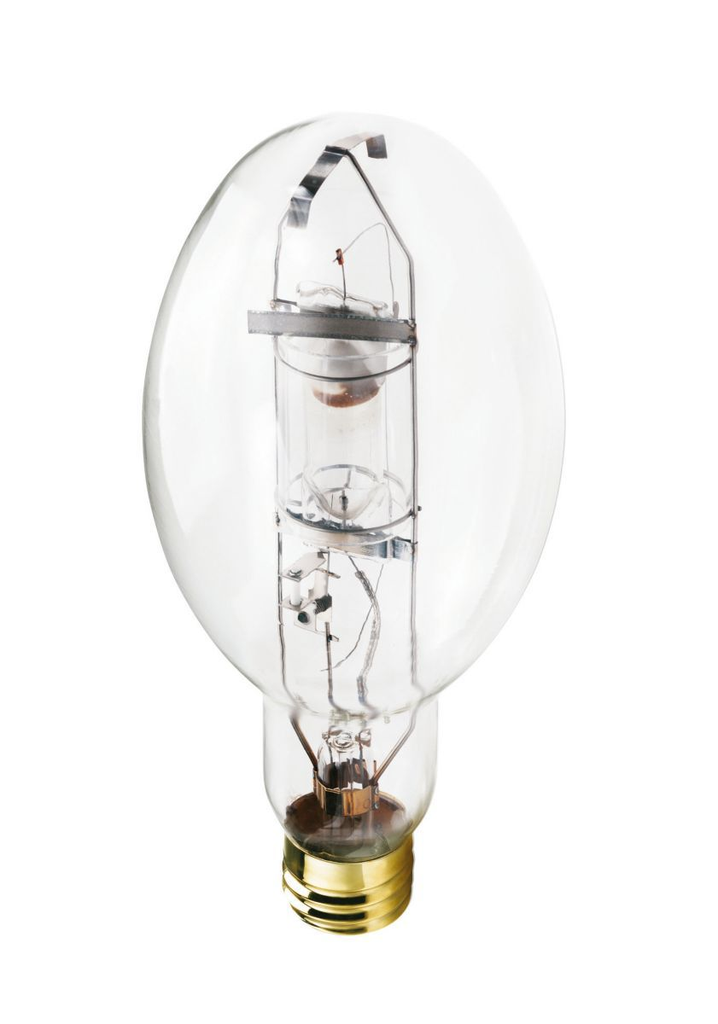

MP400/BU 6 PK

MP400/BU

SFY133322 133322 046677133320
50.98 / EA
http://schema.org/OutOfStock
Mayer-DDS-MP400/BU 6 PK-1
  • Amperage: 3.25 A
  • Color Rendering Index: 65 CRI
  • Correlated Color Temperature: 4000 K
  • Efficacy: 100 LPW
  • Finish: Clear
  • Lumens: 26600 lm, 40000 lm
  • Max. Voltage: 150 V
  • Voltage: 135 V
  • Weight: 0.001 kg
QTY
  • Features
  • Specifications
  • Features
    • Available in various bases and wattages.
    • Protective quartz shroud provides extra level of safety - shrouded arc tube for “O” open fixture rating.
    • No shut-off required- Ideal for 24-hours a day, 7-days a week operations (relamp fixtures at or before the end of rated life)
    • Extended eyelet mogul base will operate in both standard and exclusionary sockets.
    • Satisfies the 2005 NEC for use in open luminaires†
    • BT-56 base available in 1000 watts / ED-37 base available in 360 and 400 watts / ED 28 base available in 175 and 250 watts.
    • Relamp fixtures at or before end of rated average life. † The 2005 NEC states that luminaires that use a metal halide lamp shall be provided with either a containment barrier that encloses the lamp (historically referred to as an enclosed luminaire) or shall be provided with a means, typically a special lampholder, that will only accept ANSIType-O metal halide lamp. (Exception—this requirement will not apply to open luminaires with thick-glass parabolic reflector PAR lamps.) For more information regarding use ofType-O, S, and E metal halide systems, please refer to the NEMA white paper on this subject that is freely available at www.nema.org
  • Warnings
    • R "WARNING: These lamps can cause serious skin burn and eye inflammation from short wave ultraviolet radiation if outer envelope of the lamp is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available." This lamp complies with FDA radiation performance standard 21 CFR subchapter J. (USA:21 CFR 1040.30 Canada: SOR/DORS/80-381)
  • Applications
    • Ideal for manufacturing facilities, retail establishments and warehouses.
  • Product Data
    • Order product name : MP400/BU 6 PK
    • EAN/UPC - Product : 046677133320
    • Order code : 928601157903
    • Numerator - Quantity Per Pack : 1
    • Numerator - Packs per outer box : 6
    • Material Nr. (12NC) : 928601157903
    • Net Weight (Piece) : 0.001 kg
  • Operating and Electrical
    • Lamp Current (Nom) : 3.25 A
    • Ignition Supply Voltage (Min) : 280 V
    • Re-Ignition Time (Min) (Max) : 15 min
    • Ignition Time (Max) : 120 s
    • Voltage (Max) : 150 V
    • Voltage (Min) : 120 V
    • Voltage (Nom) : 135 V
  • Mechanical and Housing
    • Bulb Finish : Clear
    • Cap-Base Information : Nickel/Brass
    • Bulb Material : Hard Glass
  • Light Technical
    • Color Code : 640  [ CCT of 4000K]
    • Luminous Flux (Rated) (Nom) : 40000 lm
    • Color Designation : Cool White (CW)
    • Design Mean Lumens : 26600 lm
    • Chromaticity Coordinate X (Nom) : 385
    • Chromaticity Coordinate Y (Nom) : 390
    • Correlated Color Temperature (Nom) : 4000 K
    • Luminous Efficacy (rated) (Nom) : 100 lm/W
    • Color Rendering Index (Nom) : 65
  • Approval and Application
    • Energy Saving Product : Not Applicable
    • Picogram Per Lumen Hour : 76.9 pg/lm.h
    • Mercury (Hg) Content (Nom) : 57 mg
  • UV
    • Pet (Niosh) (Nom) : 1801.6 h/500lx
    • Damage Factor D/fc (Nom) : 0.21
  • Luminaire Design Requirements
    • Bulb Temperature (Max) : 400 °C
    • Cap-Base Temperature (Max) : 210 °C
  • General Information
    • Cap-Base : EX39  [ Exclusionary Mogul Screw]
    • Operating Position : H15  [ Hanging +/-15D or Base Up (BU)]
    • Main Application : General Lighting (G)
    • Life to 50% Failures (Nom) : 20000 h
    • ANSI Code HID : M59/O
