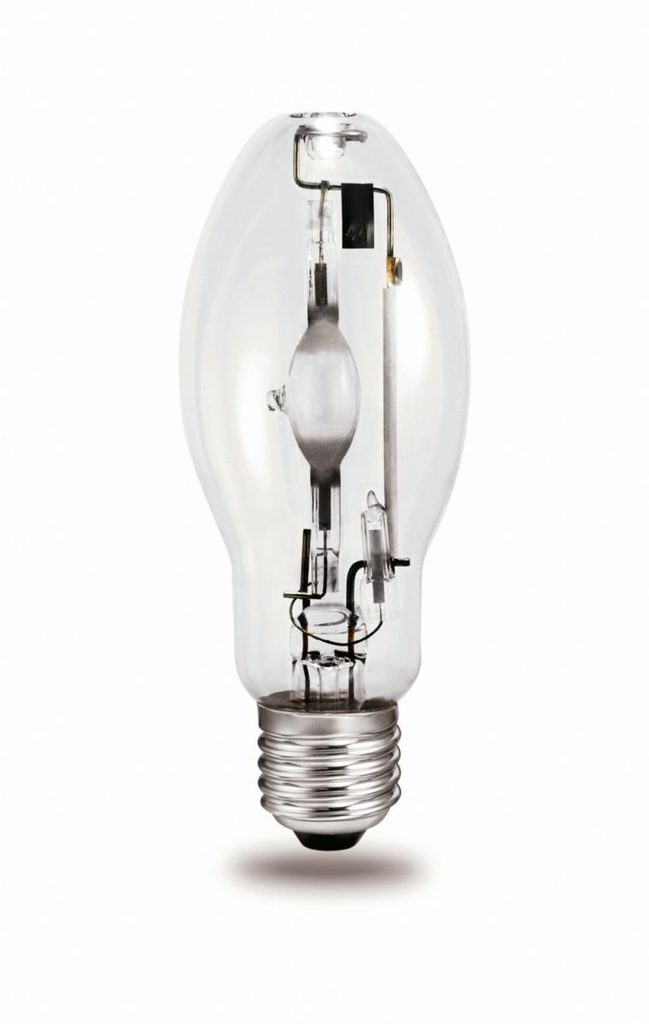

MH 150W/640 E26 CL 1SL/24

MH 150W/640 E26 CL

SFY137521 137521 046677137526
16.74 / EA
http://schema.org/OutOfStock
Mayer-DDS-MH 150W/640 E26 CL 1SL/24-1
  • Color Rendering Index: 65 CRI
  • Correlated Color Temperature: 4000 K
  • Dimmable (Y/N): No
  • Efficacy: 90 LPW
  • Finish: Clear
  • Lumens: 12150 lm, 13500 lm
  • Max. Voltage: 105 V
  • Voltage: 95 V
  • Weight: 0.074 kg
na  [ -]
QTY
  • Product Description
  • Features
  • Specifications
na  [ -]
  • Features
    • Available in various bases and wattages.
    • Protective quartz shroud provides extra level of safety - shrouded arc tube for “O” open fixture rating.
    • No shut-off required- Ideal for 24-hours a day, 7-days a week operations (relamp fixtures at or before the end of rated life)
    • Extended eyelet mogul base will operate in both standard and exclusionary sockets.
    • Satisfies the 2005 NEC for use in open luminaires†
    • BT-56 base available in 1000 watts / ED-37 base available in 360 and 400 watts / ED 28 base available in 175 and 250 watts.
    • Relamp fixtures at or before end of rated average life. † The 2005 NEC states that luminaires that use a metal halide lamp shall be provided with either a containment barrier that encloses the lamp (historically referred to as an enclosed luminaire) or shall be provided with a means, typically a special lampholder, that will only accept ANSIType-O metal halide lamp. (Exception—this requirement will not apply to open luminaires with thick-glass parabolic reflector PAR lamps.) For more information regarding use ofType-O, S, and E metal halide systems, please refer to the NEMA white paper on this subject that is freely available at www.nema.org
  • Warnings
    • R "WARNING: These lamps can cause serious skin burn and eye inflammation from short wave ultraviolet radiation if outer envelope of the lamp is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available." This lamp complies with FDA radiation performance standard 21 CFR subchapter J. (USA:21 CFR 1040.30 Canada: SOR/DORS/80-381)
    • Lamp contains mercury. Manage in Accord with Disposal Laws. See: www.lamprecycle.org or 1-800-555-0050
  • Applications
    • Ideal for manufacturing facilities, retail establishments and warehouses.
  • Product Data
    • Order product name : MH 150W/640 E26 CL 1SL/24
    • EAN/UPC - Product : 046677137526
    • Order code : 137521
    • Numerator - Quantity Per Pack : 1
    • Numerator - Packs per outer box : 24
    • Material Nr. (12NC) : 928486000191
    • Net Weight (Piece) : 0.074 kg
  • Operating and Electrical
    • Power (Rated) (Max) : W
    • Power (Rated) (Min) : W
    • Power (Rated) (Nom) : 150.0 W
    • Lamp Current Run-Up (Max) : 3 A
    • Lamp Current (EM) (Nom) : 1.8 A
    • Ignition Supply Voltage (Max) : 198 V
    • Ignition Supply Voltage (Min) : 198 V
    • Voltage (Max) : 105 V
    • Voltage (Min) : 85 V
    • Voltage (Nom) : 95 V
  • Mechanical and Housing
    • Bulb Finish : Clear (CL)
  • Light Technical
    • Color Code : 640  [ CCT of 4000K]
    • Luminous Flux (Rated) (Min) : 12150 lm
    • Luminous Flux (Rated) (Nom) : 13500 lm
    • Color Designation : Cool White (CW)
    • Lumen Maintenance 10000 h (Nom) : 58 %
    • Lumen Maintenance 2000 h (Nom) : 73 %
    • Lumen Maintenance 5000 h (Nom) : 64 %
    • Chromaticity Coordinate X (Nom) : 385
    • Chromaticity Coordinate Y (Nom) : 390
    • Correlated Color Temperature (Nom) : 4000 K
    • Luminous Efficacy (rated) (Nom) : 90 lm/W
    • Color Rendering Index (Nom) : 65
  • Approval and Application
    • Mercury (Hg) Content (Nom) : 11 mg
    • Energy Consumption kWh/1000 h : 165 kWh
  • Luminaire Design Requirements
    • Bulb Temperature (Max) : 450 °C
    • Cap-Base Temperature (Max) : 250 °C
  • Controls and Dimming
    • Dimmable : No
  • General Information
    • Base : E26  [ Single Contact Medium Screw]
    • Operating Position : Base Up  [ Base Up]
    • Life to 5% Failures (Nom) : 2000 h
    • Life to 50% Failures (Nom) : 15000 h
    • System Description : na  [ -]
