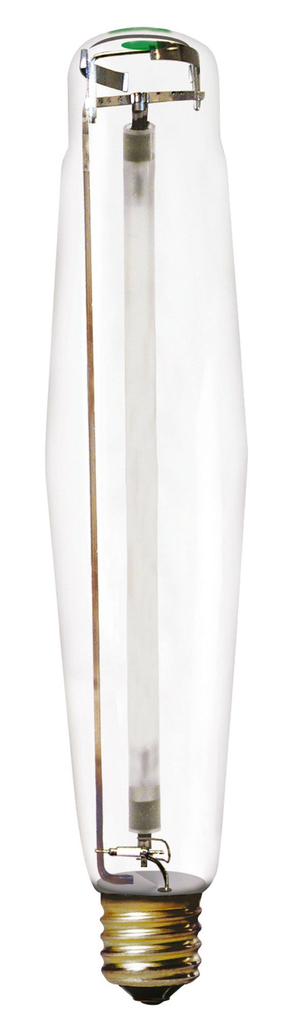

C1000S52/ALTO

C1000S52/ALTO

SFY368837 368837 046677368838
55.03 / EA
  • Applications: General, Street Lighting
  • Base: E39
  • Color Rendering Index: 21 CRI
  • Correlated Color Temperature: 2100 K
  • Max. Voltage: 275 V
  • Operating Position: Universal
  • Power Rating: 1003 W
  • Voltage: 250 V
These lamps pass the EPA's TCLP test for non-hazardous materials. Ideal for industrial applications, warehouses, post top applications and parking lots.
  • Features
  • Product Description
  • Specifications
  • Applications
    • Ideal for street and roadway lighting, parking lots and garages, warehouses and manufacturing facilities where lower maintenance costs are desired.
  • Low total cost of ownership.
  • Long life—up to 24,000 hours.
  • ALTO® Lamp Technology - Sustainable solution.
  • ED 18 Available in 200, 250 and 400 watt; ED-23 1/2 Available in 50, 70,100, and 150 watt
  • Benefits
    • Long Life - 24,000 hours Rated Average Life.
    • Low mercury - better for the environment.
    • High efficacy up to 140 LPW.
  • Warning And Safety
    • Lamp contains mercury. Manage in Accord with Disposal Laws. See: www.lamprecycle.org or 1-800-555-0050
These lamps pass the EPA's TCLP test for non-hazardous materials. Ideal for industrial applications, warehouses, post top applications and parking lots.
  • Mechanical and Housing
    • Cap-Base Information : Nic/Brass
    • Bulb Finish : Clear
    • Bulb Material : Hard Glass
  • General Information
    • Footnotes HID 1 : Electrically insulated support for bulb may be required, especially in horizontal and nearly horizontal operating positions. (359)
    • ANSI Code HID : S52
    • Base : E39 [ Single Contact Mogul Screw]
    • Main Application : General and Street Lighting
    • Features : ALTO® (ALTO)
    • Footnotes HID 2 : This lamp should be shielded from moisture to prevent breakage. (362)
    • Operating Position : Universal [ Universal]
  • Light Technical
    • Chromaticity Coordinate Y (Nom) : 420
    • Correlated Color Temperature (Nom) : 2100 K
    • Luminous Efficacy (rated) (Nom) : 135 lm/W
    • Design Mean Lumens : 126000 lm
    • Luminous Flux (Rated) (Min) : 121500 lm
    • Color Rendering Index (Nom) : 21
    • Photosynthetic Photon Flux (PPF) : 1550 µmol/s
    • Luminous Efficacy (Rated) (Min) : 121.5 lm/W
    • Luminous Flux (Rated) (Nom) : 135000 lm
    • Chromaticity Coordinate X (Nom) : 515
  • Luminaire Design Requirements
    • Bulb Temperature (Max) : 400 °C
    • Cap-Base Temperature (Max) : 210 °C
  • Operating and Electrical
    • Lamp Current (Nom) : 4.7 A
    • Voltage (Max) : 275 V
    • Voltage (Nom) : 250 V
    • Ignition Time (Max) : 5 s
    • Power (Rated) (Nom) : 1003 W
    • Re-Ignition Time (Min) (Max) : 3 min
    • Voltage (Min) : 210 V
    • Ignition Supply Voltage (Max) : 456 V
  • Approval and Application
    • Mercury (Hg) Content (Nom) : 32 mg
    • Picogram Per Lumen Hour : 11.3 pg/lm.h
