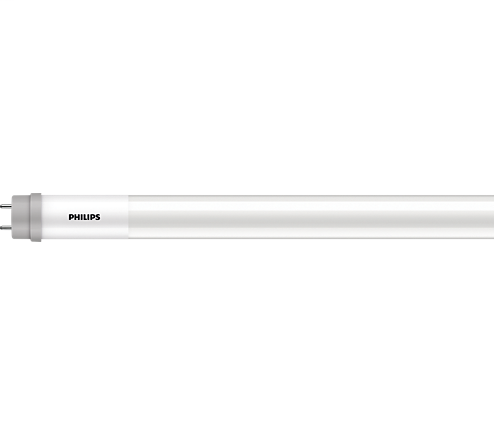

17T8 PRO LED/48-4000 BB G 1PK 10/1

16.5T8/COR/48-840/MF21/G 10/1

SFY471763 471763 046677471767
11.53 / EA
http://schema.org/OutOfStock
Mayer-DDS-17T8 PRO LED/48-4000 BB G 1PK 10/1-1
  • Average Rated Life: 50000 hr
  • Color Rendering Index: 80 CRI
  • Correlated Color Temperature: 4000 K
  • Dimmable (Y/N): No
  • Frequency: 50-60 Hz
  • IsSustainable: Yes
  • Length: 1200 mm
  • Lumens: 2100 lm
  • Voltage: 120-277 V
  • Weight: 0.215 kg
Our TLEDs are available in InstantFit (Type A / Type C) or MainsFit (Ballast bypass / Type B) versions. The InstantFit lamps work on a broad variety of ballasts and LED drivers. Only InstantFit has over 15,000 lamp & ballast combinations delivering even light output, energy savings and a long lifetime. Our MainsFit products feature a double-ended design, simplifying installation while a proprietary safety circuit minimizes a shock risk. Lamp sizes range from 2-foot to 8-foot and U-bend with a variety of lumen outputs.
QTY
  • Specifications
  • Product Data
    • Order product name : 17T8 PRO LED/48-4000 BB G 1PK 10/1
    • EAN/UPC - Product : 046677471767
    • Order code : 929001363304
    • Numerator - Quantity Per Pack : 1
    • Numerator - Packs per outer box : 10
    • Material Nr. (12NC) : 929001363304
    • Net Weight (Piece) : 0.215 kg
  • Operating and Electrical
    • Input Frequency : 50 to 60 Hz
    • Power (Rated) (Nom) : 17 W
    • Lamp Current (Nom) : 146 mA
    • Starting Time (Nom) : 1 s
    • Warm Up Time to 60% Light (Nom) : 1 s
    • Power Factor (Nom) : 0.9
    • Voltage (Nom) : 120-277 V
  • Mechanical and Housing
    • Product Length : 1200 mm
  • Light Technical
    • Color Code : 840  [ CCT of 4000K]
    • Luminous Flux (Nom) : 2100 lm
    • Luminous Flux (Rated) (Nom) : 2100 lm
    • Correlated Color Temperature (Nom) : 4000 K
    • Color Consistency : <6
    • Color Rendering Index (Nom) : 80
    • LLMF At End Of Nominal Lifetime (Nom) : 70 %
  • Approval and Application
    • Energy Saving Product : Yes
  • Controls and Dimming
    • Dimmable : No
  • Temperature
    • T-Ambient (Max) : 45 °C
    • T-Ambient (Min) : -20 °C
    • T-Storage (Max) : 65 °C
    • T-Storage (Min) : -40 °C
    • T-Case Maximum (Nom) : 55 °C
  • General Information
    • Cap-Base : G13  [ Medium Bi-Pin Fluorescent]
    • Nominal Lifetime (Nom) : 50000 h
    • Switching Cycle : 50000X
    • B50L70 : 50000 h
