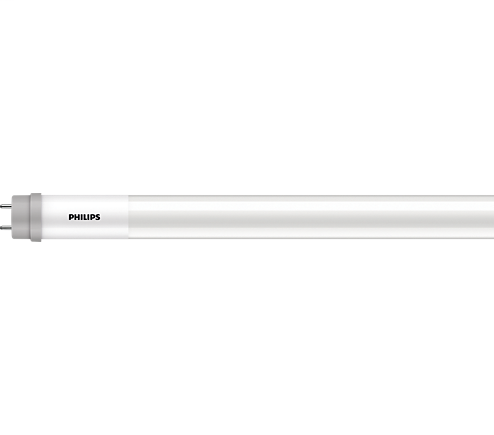

14T8PRO/48-840/BB18/G 10/1 FB

14T8/COR/48-840/MF18/G

SFY477331 477331 046677477332
9.46 / EA
http://schema.org/OutOfStock
Mayer-DDS-14T8PRO/48-840/BB18/G 10/1 FB-1
  • Average Rated Life: 50000 hr
  • Color Rendering Index: 80 CRI
  • Correlated Color Temperature: 4000 K
  • Dimmable (Y/N): No
  • Frequency: 50/60 Hz
  • IsSustainable: Yes
  • Length: 1200 mm
  • Lumens: 1800 lm
  • Voltage: 120-277 V
  • Weight: 0.210 kg
Our TLEDs are available in InstantFit (Type A / Type C) or MainsFit (Ballast bypass / Type B) versions. The InstantFit lamps work on a broad variety of ballasts and LED drivers. Only InstantFit has over 15,000 lamp & ballast combinations delivering even light output, energy savings and a long lifetime. Our MainsFit products feature a double-ended design, simplifying installation while a proprietary safety circuit minimizes a shock risk. Lamp sizes range from 2-foot to 8-foot and U-bend with a variety of lumen outputs.
QTY
  • Features
  • Specifications
  • Features
    • Reliable performance - color and lumen maintenance
    • Double-ended design installs in about half the time as single-ended type-B solutions
    • Reduces lighting complexity - integrated driver
    • Operates on both shunted and non-shunted sockets, which means no need to replace sockets
    • DLC, NSF and RoHS listed
    • Philips proprietary safety features
    • Available shatter-resistant polycarbonate construction
    • 5-year warranty and 50,000-hour life standard
  • Applications
    • Office and Retail
    • Industrial and warehouses
    • Parking lots and covered car parks
  • Product Data
    • Order product name : 14T8PRO/48-840/BB18/G 10/1 FB
    • EAN/UPC - Product : 046677477332
    • Order code : 929001845604
    • Numerator - Quantity Per Pack : 1
    • Numerator - Packs per outer box : 10
    • Material Nr. (12NC) : 929001845604
    • Net Weight (Piece) : 0.210 kg
  • Operating and Electrical
    • Input Frequency : 50 to 60 Hz
    • Power (Rated) (Nom) : 14 W
    • Lamp Current (Max) : 130 mA
    • Lamp Current (Min) : 47 mA
    • Starting Time (Nom) : 0.5 s
    • Warm Up Time to 60% Light (Nom) : 0.5 s
    • Power Factor (Nom) : 0.9
    • Voltage (Nom) : 120-277 V
  • Mechanical and Housing
    • Product Length : 1200 mm
  • Light Technical
    • Color Code : 840  [ CCT of 4000K]
    • Beam Angle (Nom) : 240 °
    • Luminous Flux (Nom) : 1800 lm
    • Luminous Flux (Rated) (Nom) : 1800 lm
    • Rated Beam Angle : 240 °
    • Correlated Color Temperature (Nom) : 4000 K
    • Color Consistency : <6
    • Color Rendering Index (Nom) : 80
    • LLMF At End Of Nominal Lifetime (Nom) : 70 %
  • Approval and Application
    • Energy Saving Product : Yes
    • Energy Certifications : DLC Standard
  • Controls and Dimming
    • Dimmable : No
  • Temperature
    • T-Ambient (Max) : 45 °C
    • T-Ambient (Min) : -20 °C
    • T-Storage (Max) : 65 °C
    • T-Storage (Min) : -40 °C
    • T-Case Maximum (Nom) : 70 °C
  • General Information
    • Cap-Base : G13  [ Medium Bi-Pin Fluorescent]
    • RoHS mark : RoHS mark
    • Nominal Lifetime (Nom) : 50000 h
    • Switching Cycle : 50000X
    • B50L70 : 50000 h
