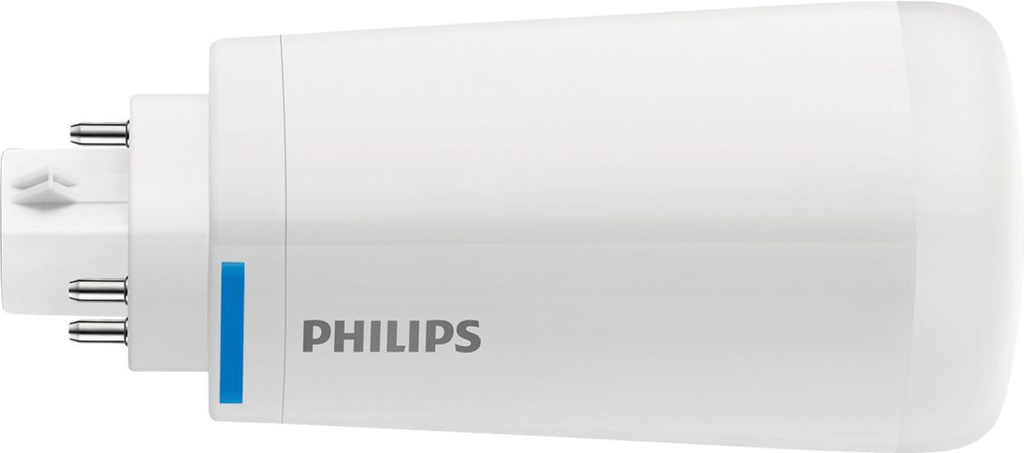

PHILIPS LAMPS

10.5PL-C/T/COR/26V-840/IF13/P/4P/DIM10/1

10.5PL-C/T LED/26V-4000 IF 4P

SFY458430 458430 046677458430
13.49 / EA
http://schema.org/OutOfStock
Mayer-DDS-10.5PL-C/T/COR/26V-840/IF13/P/4P/DIM10/1-1
  • Applications: Industrial
  • Base: GX24q
  • Beam Angle: 120 °
  • Color Coding: 841
  • Color Rendering Index: 82 CRI
  • Correlated Color Temperature: 4000 K
  • Dimmable (Y/N): Yes
  • Lamp Color: Cool White
  • Length: 4 in
  • Lumens: 1300 lm
  • Power Factor: 0.9
  • Power Rating: 10.5 W
  • Voltage: 120 V
Philips PLED 4-pin & 2-pin lamps are an affordable LED solution to replace compact flourescent lamps. The product provides a natural lighting effect for use in many lighting applications, and provides instant energy savings, making them an environmentally-friendly solution. Available as replacements for 13W, 26W and 32W compact fluorescent lamps.
QTY
  • Product Description
  • Features
  • Specifications
Philips PLED 4-pin & 2-pin lamps are an affordable LED solution to replace compact flourescent lamps. The product provides a natural lighting effect for use in many lighting applications, and provides instant energy savings, making them an environmentally-friendly solution. Available as replacements for 13W, 26W and 32W compact fluorescent lamps.
  • Applications
    • Retail & hospitality
    • Residential
    • Healthcare
  • Features
    • Excellent energy efficency
    • Horizontal lamps rotate to ensure the best possible lighting effect
    • Easy installation. Plug-and-play replacement of existing CFL-ni lamps
    • Conventional form factor fits into existing luminaires
  • Benefits
    • Reduced lighting costs
    • Excellent lighting uniformity and lumen maintenance
    • Unmatched compatiblity with existing ballasts
  • Operating and Electrical
    • Input Frequency : 20000-100000 Hz
    • Power (Rated) (Nom) : 10.5 W
    • Lamp Current (Max) : 550 mA
    • Lamp Current (Min) : 150 mA
    • Starting Time (Nom) : 0.5 s
    • Warm Up Time to 60% Light (Nom) : 0.5 s
    • UL Type : Type A - works on ballast
    • Power Factor (Nom) : 0.9
    • Voltage (Nom) : 120 V
  • Mechanical and Housing
    • Bulb Finish : Frosted
    • Bulb Material : Plastic
    • Product Length : 4 in
  • Light Technical
    • Color Code : 841 [ CCT of 4100K (841)]
    • Beam Angle (Nom) : 120 °
    • Initial lumen (Nom) : 1300 lm
    • Luminous Flux (Rated) (Nom) : 1300 lm
    • Color Designation : Cool White (CW)
    • Correlated Color Temperature (Nom) : 4000 K
    • Luminous Efficacy (rated) (Nom) : 123.00 lm/W
    • Color Consistency : <6
    • Color Rendering Index (Nom) : 82
    • LLMF At End Of Nominal Lifetime (Nom) : 70 %
  • Approval and Application
    • Energy Saving Product : Yes
    • Energy Certifications : DLC Standard
  • Controls and Dimming
    • Dimmable : Yes
  • Temperature
    • T-Ambient (Max) : 45 °C
    • T-Ambient (Min) : -20 °C
    • T-Storage (Max) : 65 °C
    • T-Storage (Min) : -40 °C
    • T-Case Maximum (Nom) : 60 °C
  • General Information
    • Base : GX24q
    • EU RoHS compliant : Yes
    • Main Application : Industrial
    • Nominal Lifetime (Nom) : 50000 h
    • Switching Cycle : 50000X
    • Technical Type : 10.5-26W
