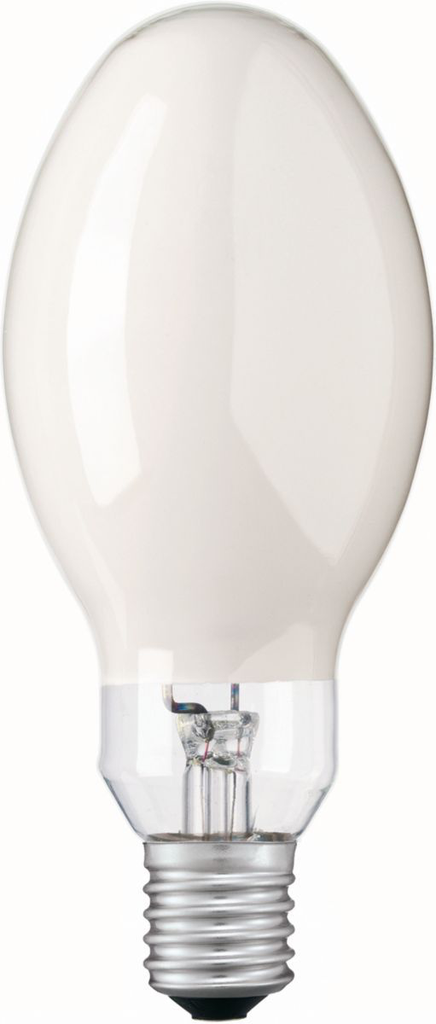

HPL-N 175W E39/41 HG CL.SLV/12

MV 175W MOG UNV

SFY319657 319657 046677319656
21.01 / EA
http://schema.org/OutOfStock
  • Correlated Color Temperature: 5900 K
  • Dimmable (Y/N): No
  • Efficacy: 43 LPW
  • Finish: Clear
  • Lumens: 6660 lm, 7400 lm
  • Max. Voltage: 140 V
  • Voltage: 130 V
  • Weight: 0.154 kg
QTY
  • Features
  • Specifications
  • Features
    • Assorted wattages and bulb types available to choose from.
    • Life = +24,000 hours.
    • CRI = Clear 20, Deluxe White 45.
    • Color Temperature = Cool.
    • Efficiency—50 Lumens per watt.
    • Available in 50, 75, 100, 175, 250, 400 and 1000 watts. Multiple choices of bulbs types available.
  • Applications
    • Ideal for landscape lighting, dusk to dawn fixtures, roadway, parking lots, floodlight, and security.
  • Warnings
    • R "WARNING: These lamps can cause serious skin burn and eye inflammation from short wave ultraviolet radiation if outer envelope ot the lamp is broken or puntured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precuations are used. Certain lamps that will automaticallly extinguish when the outer envelope is broken or punctured are commercially available." This lamp complies with FDA radiation performance standard 21 CFR subchapter J. (USA:21 CFR 1040.30 Canada: SOR/DORS/80-381)
  • Product Data
    • Order product name : HPL-N 175W E39/41 HG CL.SLV/12
    • EAN/UPC - Product : 046677319656
    • Order code : 928484900091
    • Numerator - Quantity Per Pack : 1
    • Numerator - Packs per outer box : 12
    • Material Nr. (12NC) : 928484900091
    • Net Weight (Piece) : 0.154 kg
  • Operating and Electrical
    • Power (Rated) (Nom) : 175.0 W
    • Lamp Current (EM) (Nom) : 1.5 A
    • Ignition Supply Voltage (Max) : 180 V
    • Voltage (Max) : 140 V
    • Voltage (Min) : 120 V
    • Voltage (Nom) : 130 V
  • Mechanical and Housing
    • Bulb Finish : Clear
    • Bulb Material : Hard Glass
  • Light Technical
    • Color Code : 556  [ CCT of 5600K]
    • Luminous Flux (Rated) (Min) : 6660 lm
    • Luminous Flux (Rated) (Nom) : 7400 lm
    • Color Designation : Cool White (CW)
    • Lumen Maintenance 10000 h (Min) : 60 %
    • Lumen Maintenance 10000 h (Nom) : 70 %
    • Lumen Maintenance 2000 h (Min) : 80 %
    • Lumen Maintenance 2000 h (Nom) : 88 %
    • Lumen Maintenance 5000 h (Min) : 70 %
    • Lumen Maintenance 5000 h (Nom) : 80 %
    • Chromaticity Coordinate X (Nom) : 323
    • Chromaticity Coordinate Y (Nom) : 384
    • Correlated Color Temperature (Nom) : 5900 K
    • Luminous Efficacy (rated) (Nom) : 43 lm/W
    • LLMF 2000 h Rated : 88 %
    • LLMF 4000 h Rated : 84 %
    • LLMF 6000 h Rated : 77 %
    • LLMF 8000 h Rated : 73 %
    • LLMF 12000 h Rated : 68 %
    • LLMF 16000 h Rated : 66 %
    • LLMF 20000 h Rated : 64 %
  • Approval and Application
    • Mercury (Hg) Content (Nom) : 34.5 mg
    • Energy Consumption kWh/1000 h : 193 kWh
  • Luminaire Design Requirements
    • Bulb Temperature (Max) : 400 °C
    • Cap-Base Temperature (Max) : 210 °C
  • Controls and Dimming
    • Dimmable : No
  • General Information
    • Cap-Base : E39  [ Single Contact Mogul Screw]
    • Operating Position : UNIVERSAL  [ Any or Universal (U)]
    • Life to 5% Failures (Nom) : 5000 h
    • Life to 20% Failures (Nom) : 10000 h
    • Life to 50% Failures (Nom) : 15000 h
    • LSF 2000 h Rated : 99 %
    • LSF 4000 h Rated : 97 %
    • LSF 6000 h Rated : 94 %
    • LSF 8000 h Rated : 92 %
    • LSF 12000 h Rated : 65 %
    • LSF 16000 h Rated : 45 %
