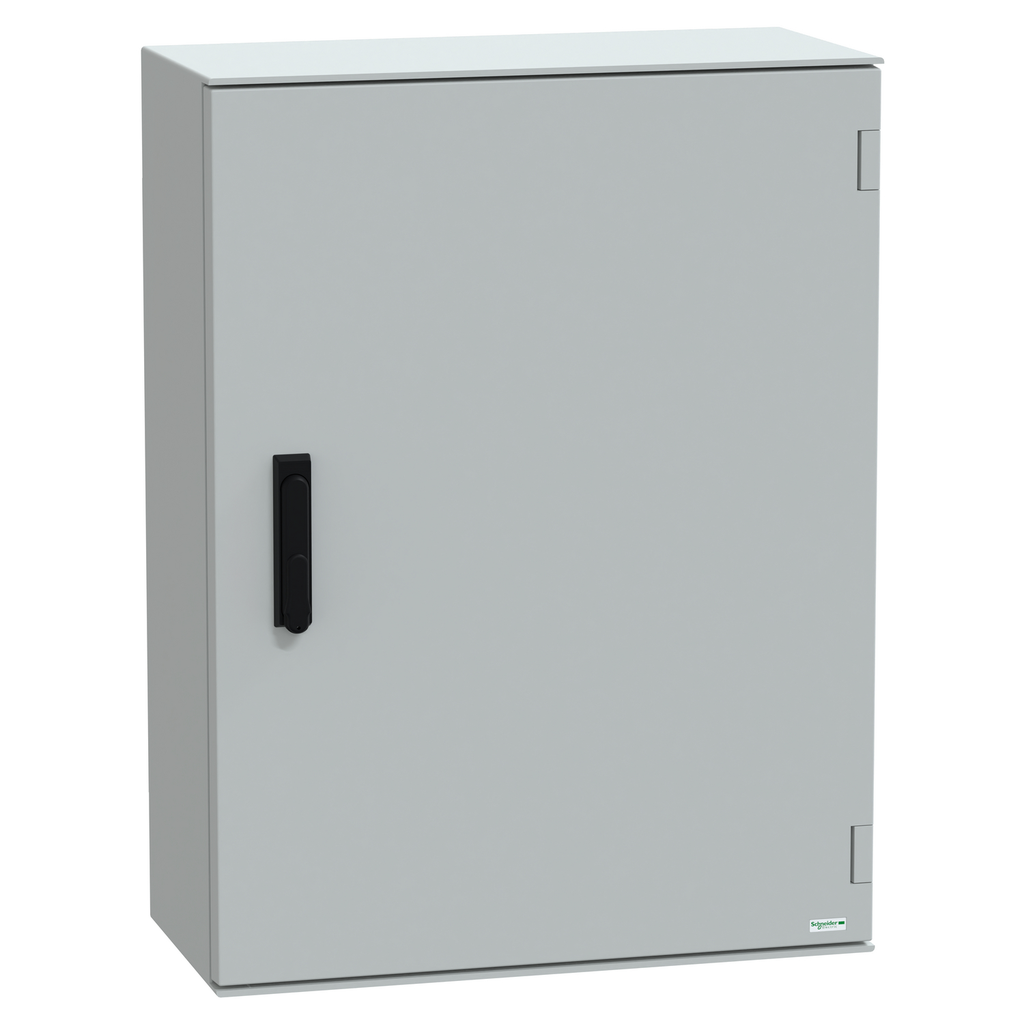

Thalassa PLM wall-mounting polyester enclosure monobloc. 847 x 636 x 300 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 points lock, handle with 1242E key lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.

• Physical Attributes
• Enclosure Nominal Height : 847 mm, 847 mm
• Enclosure Nominal Width : 636 mm, 636 mm
• Color : Gray RAL 7035)
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : 1 body, 1 door, 1 handle lock
• Carbon Footprint Of The Distribution Phase A4 : 35.735808305041296, 36 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 37 kg CO2 eq., 36.618993701019846
• Carbon Footprint Of The Installation Phase A5 : 4.297301350396785, 4 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 64 kg CO2 eq., 63.62936439048037
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2041
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Plastic Content : 37 %
• Device Application : multi-purpose
• Device Short Name : PLM
• Door Type : Solid
• Electrical Insulation Class : class II
• Enclosure Mounting : wall mounted
• Energy Efficiency Optimized : False
• Fire Resistance : 960 °C IEC 62208
• Lock Type : 3 points lock, handle with 1242E key lock
• Material : polyester reinforced with fibreglass
• Mounting Plate Description : without mounting plate
• Number Of Locks : 1
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : compact enclosure
• Range : PanelSeT
• Removable Parts : door by hinges
• Returnability : Yes
• Software Version : v6.1
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 140 kg CO2 eq.
• Warranty In Months : 18
• Material 5 Material : polyester reinforced with fibreglass
• Pep Code : ENVPEP2405006_V1
• Database Version : 2023-02
• Pep Verification Date : 2024-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Product Weight In G2 : 18000
• Reference Lifetime In Y2 : 20
• Energy Model Manufacturing A1 A3 2 : Spain, ES
• Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Offer Owner Code : 190789
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 140.2814677469383
• Ambient Air Temperature For Operation : -40-80 °C
• Environmental Disclosure : ENVPEP2405006_V1
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP66 IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2405006_V1
• Pep Verification Date : 2024-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : compact enclosure
• ETIM
• ETIM 8 : EC000261
• ETIM 9 : EC000261
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain
