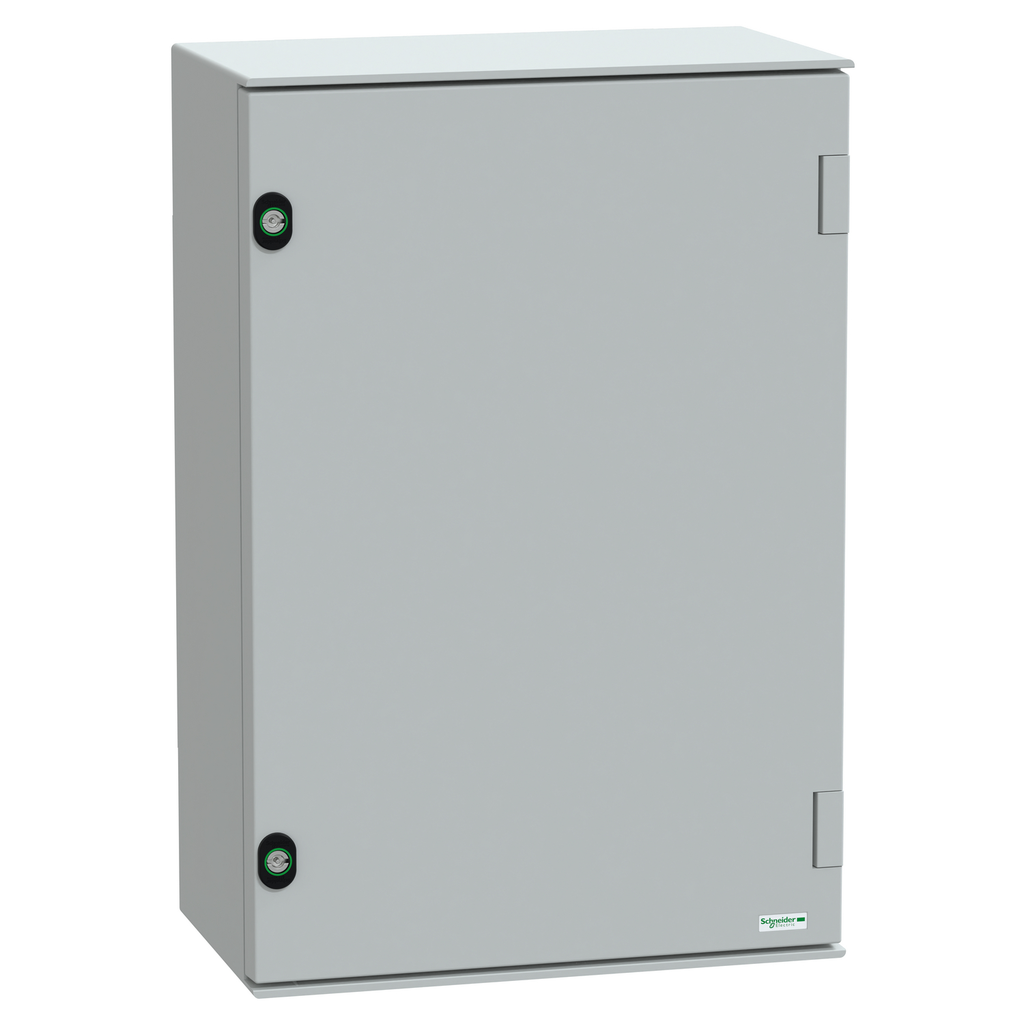

Thalassa PLM wall-mounting polyester enclosure monobloc. 647 x 436 x 250 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.

• Physical Attributes
• Color : Gray RAL 7035)
• Enclosure Nominal Height : 647 mm
• Enclosure Nominal Width : 436 mm
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : 1 body, 1 door, 2 lock
• Carbon Footprint Of The Distribution Phase A4 : 19.356896165230705, 19 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 20 kg CO2 eq., 19.83528825471908
• Carbon Footprint Of The Installation Phase A5 : 2.3277048981315924, 2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 34 kg CO2 eq., 34.4659057115102
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-12
• HTML Description : Wall-mounting enclosure polyester monobloc IP66 H647xW436xD250mm
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Average Percentage Of Recycled Plastic Content : 37 %
• Device Short Name : PLM
• Enclosure Mounting : wall mounted
• Energy Efficiency Optimized : False
• Fire Resistance : 960 °C IEC 62208
• Material : polyester reinforced with fibreglass
• Mounting Plate Description : without mounting plate
• Package Weight Lbs : 9.750 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : compact enclosure
• Range : PanelSeT
• Removable Parts : door by hinges
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 76 kg CO2 eq.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2405006EN
• Pep Verification Date : 2024-12-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Product Manager : JULIA DESLCAZO
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 75.98579502959159
• Environmental Disclosure : ENVPEP2405006EN
• IP Degree Of Protection : IP66 IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2405006EN
• Pep Verification Date : 2024-12-01
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : compact enclosure
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
