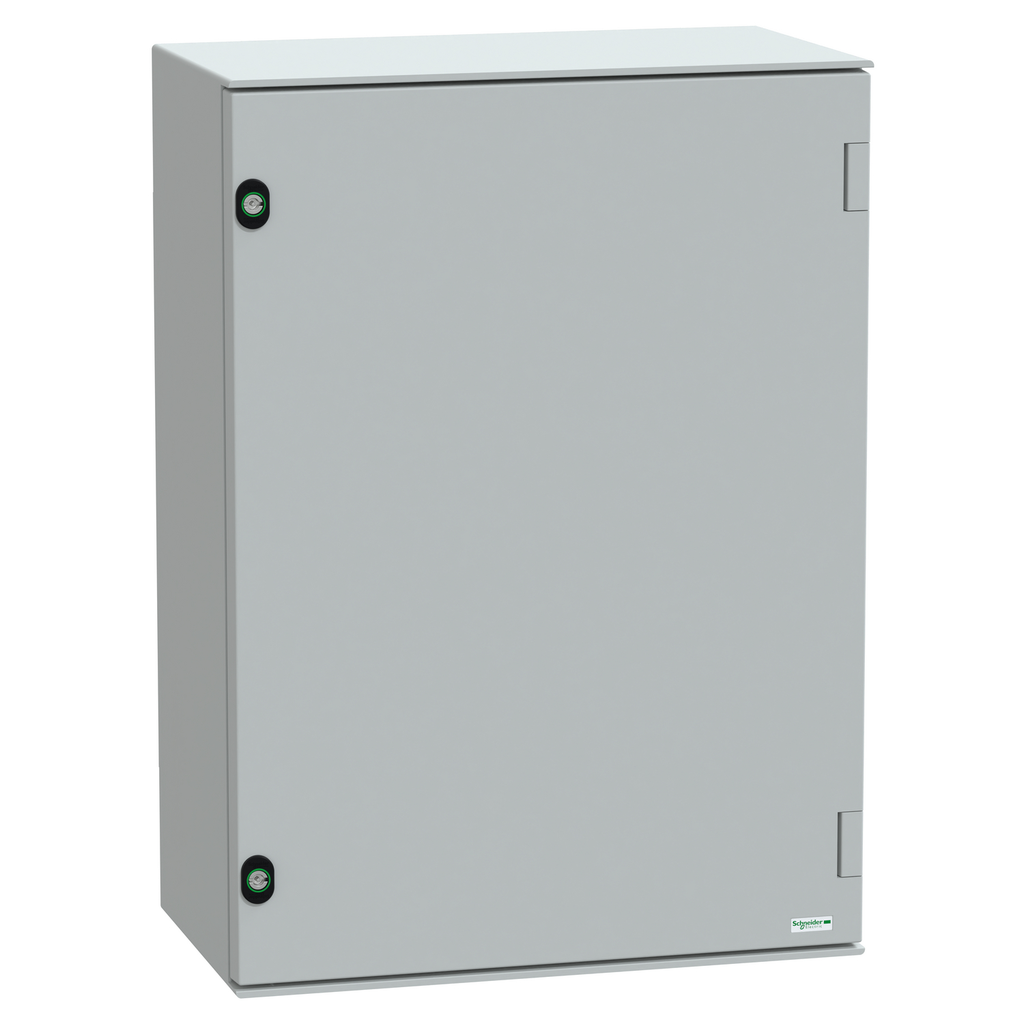

Thalassa PLM wall-mounting polyester enclosure monobloc. 747x 536x 300 mm. Built-in canopy, one piece moulded with notches in the rear. Mounting plate steel. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.

• Physical Attributes
• Enclosure Nominal Height : 747 mm, 747 mm
• Color : Gray RAL 7035)
• Enclosure Nominal Width : 536 mm
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : 1 body, 1 door, 1 mounting plate2 lock
• Device Composition 18 : 1 body, 1 door, 1 mounting plate, 2 lock
• Carbon Footprint Of The Distribution Phase [A4] : 35.89463411973037, 36 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 37 kg CO2 eq., 36.78174478413549
• Carbon Footprint Of The Installation Phase [A5] : 4.31640046750966, 4 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 64 kg CO2 eq., 63.91216156554918
• Carbon Footprint Of The Use Phase [B2 B3 B4 B6] : kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2041
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Plastic Content : 37 %
• Device Application : multi-purpose
• Device Short Name : PLM
• Door Type : Solid
• Electrical Insulation Class : class II
• Enclosure Mounting : wall mounted
• Energy Efficiency Optimized : False
• Fire Resistance : 960 °C IEC 62208
• Lock Type : 3 mm double-bar lock
• Material : polyester reinforced with fibreglass
• Mounting Plate Description : plain steel
• Number Of Locks : 2
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : compact enclosure
• Range : PanelSeT
• Removable Parts : door by hingesmounting plate by fixing element
• Returnability : No
• Software Version : v6.1
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 141 kg CO2 eq.
• Pep Code : ENVPEP2405006EN
• Database Version : 2023-02
• Pep Verification Date : 2024-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime In Y : 20
• Energy Model - Manufacturing [A1-a3] : Spain, ES
• Energy Model - Installation [A5] : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Certificate Agency : UL
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 18.080 kg
• Silicone-free : Yes
• Take-back : No
• Warranty (In Months) : 18
• Customs Code : 9403704031
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-80 °C, -40-80 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Silicon Free : Yes
• Carbon Footprint : 140.9049409369247
• Environmental Disclosure : ENVPEP2405006EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP66 IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2405006EN
• Pep Verification Date : 2024-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : compact enclosure
• ETIM
• ETIM 8 : EC000261
• ETIM 9 : EC000261
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Costa Rica, Spain
