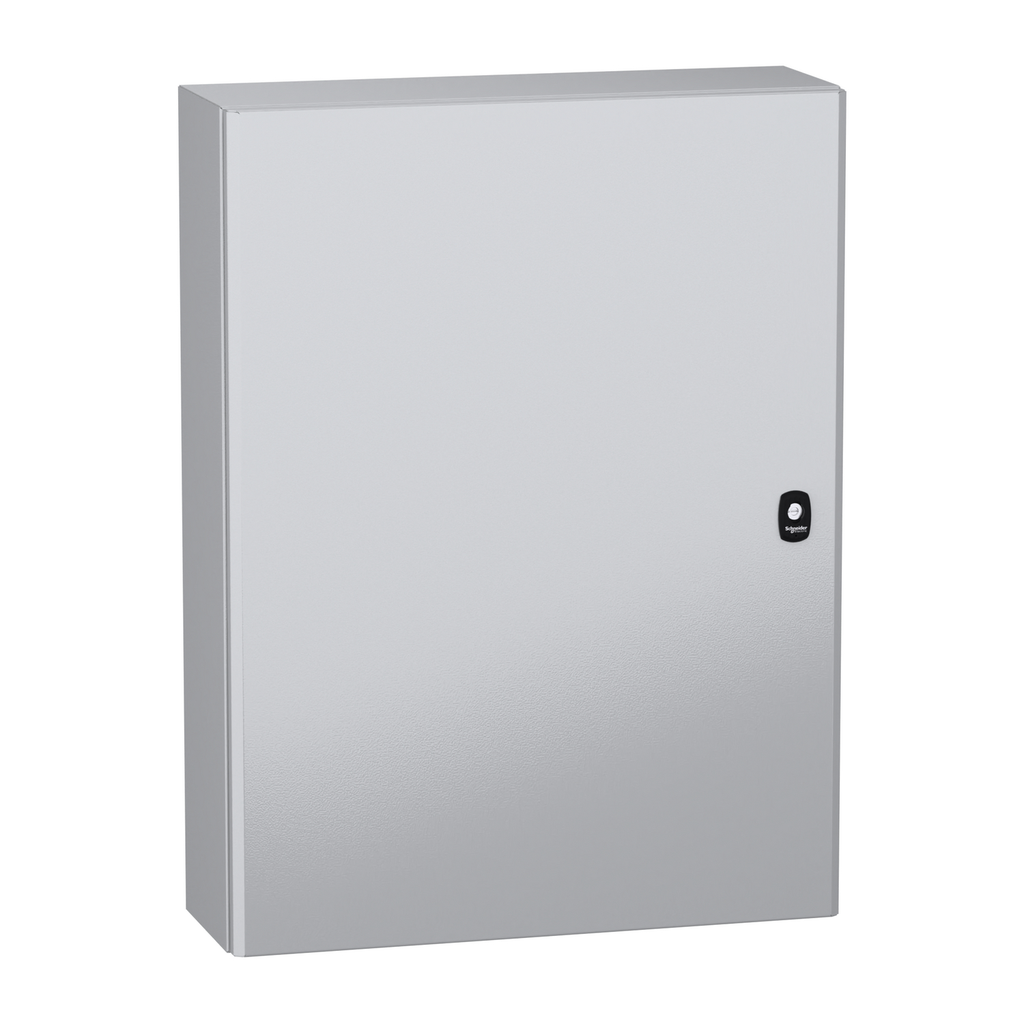

Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 800x600x200mm, IP66, IK10

Name: Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 800x600x200mm, IP66, IK10
Brand: SCHNEIDER ELECTRIC
SKU: SQDNSYS3DC8620
Price: 223.72 USD
Availability: OutOfStock

S3DC H800xW600xD200 plain door

SQDNSYS3DC8620 NSYS3DC8620 3606480314131

223.72 / EA

http://schema.org/OutOfStock

Mayer-DDS-Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 800x600x200mm, IP66, IK10-1

Country of Origin: France
Enclosure Height: 800 mm
Enclosure Width: 600 mm
Finish: Epoxy-Polyester Powder
Material: Steel
Warranty Length: 18 mth

QTY

Features
Specifications

https://download.schneider-electric.com/files?p_Doc_Ref=NSYS3DC8620_3D-CAD&p_File_name=NSYS3DC8620_3D-simplified.stp
https://download.schneider-electric.com/files?p_Doc_Ref=NSYS3DC8620_3D-CAD&p_File_name=NSYS3DC8620_2D-back.dwg
https://download.schne

IP Degree Of Protection

IP66 IEC 60529

Carbon Footprint Of The Installation Phase A5

3.9009374879084557
4 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

47 kg CO2 eq.
46.64591220489648

Standards

IEC 62208
UL
cUL

Carbon Footprint Of The Manufacturing Phase A1 To A3

97 kg CO2 eq.
96.67542175428703

Number Of Doors

front face 1

Removable Parts

door by hinges

Market Segmentation

Commercial
Industrial

Persona Type Names

Contractor
Original Equipment Manufacturer
OEM - Control Panelbuilder
Panel Builder
System Integrator

Device Composition

1 body
1 door
1 lock

Carbon Footprint Of The Use Phase B2 B3 B4 B6

0 kg CO2 eq.
0

Persona Type Ids

Variant Particularity

gutter-shaped front profile double sheet thickness
single piece body

Carbon Footprint Of The Distribution Phase A4

39.30938913554544
39 kg CO2 eq.

Door Opening Side

reversible 120 °)

Market Segmentation Id

COMMERCIAL
INDUSTRIAL

Color

Gray RAL 7035)

Physical Attributes

Enclosure Nominal Height : 800 mm
Enclosure Nominal Width : 600 mm

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 2025-09-23
Manufacturing Carbon Footprint : 96.675421754287
Distribution Carbon Footprint : 39.3093891355454
Installation Carbon Footprint : 3.90093748790846
Use Carbon Footprint : 0
End Of Life Carbon Footprint : 46.6459122048965
Legacy WEEE Scope : Out
Scope Perimeter : At least in Europe
EOLI Availability Display : No need of specific recycling operations
Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant
ROHS EUR Conformity Date : 1916
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : No
China ROHS Label : 1
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : No
Without Single Use Plastic : No
Return Indicator : Y
WD Status : 1 - GSC certified
Tier Id : 2
Tier : 2
Function Option Id : STANDARD
Function Option : Standard
Installation Accessory Type : wall-mounting
Material : steel
Package Weight Lbs : 19.800 kg
Product Availability : Stock - Normally stocked in distribution facility
Product Or Component Type : compact enclosure
Range : PanelSeT
Returnability : Yes
Surface Finish : epoxy-polyester powder
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 187 kg CO2 eq.
Type Of Gland Plate : without gland plate
Carbon Footprint Kg Co2 Eq Total Life Cycle : 186.53166058263741
Pep Code : ENVPEP100104EN
Pep Verification Date : 2024-08-01
PCR Version : PCR-4-ed4-EN-2021 09 06
PSR Version : PSR-0005-ed3.1-EN-2023 12 08
Type Of Verification For The Pep : Independent external review
Product Weight In G : 19800
Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the
Functional Unit Quantity : 1
Functional Unit Unit : Unit
Reference Lifetime In Y : 20
Energy Consumption On Product Lifetime In Kwh : 0
Energy Model Manufacturing A1 A3 : France, FR
Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Europe, EU-27
Acidification Ap Mole Of H Equiv Total Life Cycle : 0.7759396317348594
Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.4379691644461862
Acidification Ap Mole Of H Equiv Distribution A4 : 0.1614354223771812
Acidification Ap Mole Of H Equiv Installation A5 : 0.01140188254828439
Acidification Ap Mole Of H Equiv Maintenance B2 : 0
Acidification Ap Mole Of H Equiv Repair B3 : 0
Acidification Ap Mole Of H Equiv Replacement B4 : 0
Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.1651331623632076
Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.3782268392713682
Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 1.3693209739695005
Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 1.1734983006762592
Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.1848287066786169
Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.010993966614624474
Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.5911571679779883
Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 185.16233960137828
Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 95.50192345361079
Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 39.30938913554544
Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 3.7161087812298383
Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 46.63491823099223
Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -64.53357202522707
Climate Change Total Kg Co2 Eq Total Life Cycle : 186.53166058263741
Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 96.67542175428703
Climate Change Total Kg Co2 Eq Distribution A4 : 39.30938913554544
Climate Change Total Kg Co2 Eq Installation A5 : 3.9009374879084557
Climate Change Total Kg Co2 Eq Maintenance B2 : 0
Climate Change Total Kg Co2 Eq Repair B3 : 0
Climate Change Total Kg Co2 Eq Replacement B4 : 0
Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 46.64591220489648
Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -65.12472919320507
Components For Re Use Kg Total Life Cycle : 0
Components For Re Use Kg Manufacturing A1 A3 : 0
Components For Re Use Kg Distribution A4 : 0
Components For Re Use Kg Installation A5 : 0
Components For Re Use Kg Maintenance B2 : 0
Components For Re Use Kg Repair B3 : 0
Components For Re Use Kg Replacement B4 : 0
Components For Re Use Kg Operational Energy Use B6 : 0
Components For Re Use Kg End Of Life C1 C4 : 0
Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0003281367450753278
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.00032623777919333757
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000336276815545
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000009573002226231
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000179987309157248
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.019058378701420305
Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 7909.2732284401245
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 4080.016619763039
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 486.7695520578543
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 38.596185175509945
Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 3303.8908714437216
Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -1439.3700682250678
Ecotoxicity Fresh Water Ctue Total Life Cycle : 1495.8865407846436
Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1240.2981060426077
Ecotoxicity Fresh Water Ctue Distribution A4 : 160.3276381828257
Ecotoxicity Fresh Water Ctue Installation A5 : 44.04429180713991
Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
Ecotoxicity Fresh Water Ctue Repair B3 : 0
Ecotoxicity Fresh Water Ctue Replacement B4 : 0
Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 51.21650475207023
Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1115.5836902720678
Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000378763902357197
Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000239938837944992
Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000004444761287001
Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.0000000684788419567
Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000087529567346524
Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00003363815456963726
Exported Energy Mj By Energy Vector Total Life Cycle : 0.3376166622075567
Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0243284400981806
Exported Energy Mj By Energy Vector Distribution A4 : 0
Exported Energy Mj By Energy Vector Installation A5 : 0.15915001722080246
Exported Energy Mj By Energy Vector Maintenance B2 : 0
Exported Energy Mj By Energy Vector Repair B3 : 0
Exported Energy Mj By Energy Vector Replacement B4 : 0
Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.15413820488857363
Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0002860360344587722
Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00014962395632308562
Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000458088434900274
Freshwater Eutrophication Kg P Eq Installation A5 : 0.00008925704762443375
Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
Freshwater Eutrophication Kg P Eq Repair B3 : 0
Freshwater Eutrophication Kg P Eq Replacement B4 : 0
Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00004257414616225006
Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0001503436274694142
Hazardous Waste Disposed Of Kg Total Life Cycle : 3.431590657554551
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 3.3017938680020515
Hazardous Waste Disposed Of Kg Distribution A4 : 0.032412185389106854
Hazardous Waste Disposed Of Kg Installation A5 : 0.09712911976070837
Hazardous Waste Disposed Of Kg Maintenance B2 : 0
Hazardous Waste Disposed Of Kg Repair B3 : 0
Hazardous Waste Disposed Of Kg Replacement B4 : 0
Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0002554844026842772
Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1504.4357269447219
Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000277780334232911
Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000233255972843826
Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000057619844359
Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000044031103137515
Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000435638407211
Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0002213132815053488
Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000272399925824782
Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000163577435167698
Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000009086446654349
Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000001613837955645
Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000098122206047091
Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000036126451614293
Impacts Related To Land Use Soil Quality Total Life Cycle : 0.17892274036307754
Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.15658119782460858
Impacts Related To Land Use Soil Quality Distribution A4 : 0
Impacts Related To Land Use Soil Quality Installation A5 : 0.010650306916739235
Impacts Related To Land Use Soil Quality Maintenance B2 : 0
Impacts Related To Land Use Soil Quality Repair B3 : 0
Impacts Related To Land Use Soil Quality Replacement B4 : 0
Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.011691235621729705
Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -0.0372960865296486
Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 2.4840701046655624
Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 1.7916476073340983
Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.08673600165758742
Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.5952588888649638
Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.010427606808912734
Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -12.43244958125511
Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.20564347685421325
Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.09231888032723094
Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.07345832880872985
Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.004959095706155191
Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.03490717201209729
Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.04097552560674244
Materials For Energy Recovery Kg Total Life Cycle : 0
Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
Materials For Energy Recovery Kg Distribution A4 : 0
Materials For Energy Recovery Kg Installation A5 : 0
Materials For Energy Recovery Kg Maintenance B2 : 0
Materials For Energy Recovery Kg Repair B3 : 0
Materials For Energy Recovery Kg Replacement B4 : 0
Materials For Energy Recovery Kg Operational Energy Use B6 : 0
Materials For Energy Recovery Kg End Of Life C1 C4 : 0
Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
Materials For Recycling Kg Total Life Cycle : 17.923490715641613
Materials For Recycling Kg Manufacturing A1 A3 : 2.3396925973867457
Materials For Recycling Kg Distribution A4 : 0
Materials For Recycling Kg Installation A5 : 0
Materials For Recycling Kg Maintenance B2 : 0
Materials For Recycling Kg Repair B3 : 0
Materials For Recycling Kg Replacement B4 : 0
Materials For Recycling Kg Operational Energy Use B6 : 0
Materials For Recycling Kg End Of Life C1 C4 : 15.583798118254867
Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
Net Use Of Fresh Water M3 Total Life Cycle : 1.2309897840601383
Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.7843945894396763
Net Use Of Fresh Water M3 Distribution A4 : 0.046211429422035
Net Use Of Fresh Water M3 Installation A5 : 0.00700390103430621
Net Use Of Fresh Water M3 Maintenance B2 : 0
Net Use Of Fresh Water M3 Repair B3 : 0
Net Use Of Fresh Water M3 Replacement B4 : 0
Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.39337986416412074
Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.6064623482577087
Non Hazardous Waste Disposed Of Kg Total Life Cycle : 11.069265178616387
Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 8.777488412103025
Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.03981789638186147
Non Hazardous Waste Disposed Of Kg Installation A5 : 1.6670433432088745
Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
Non Hazardous Waste Disposed Of Kg Repair B3 : 0
Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.5849155269226258
Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -51.56331621467444
Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00003496099001690619
Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000038092745171739
Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00003452294709207109
Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000005046756442429
Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000664790869341
Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000907528874106462
Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.7057904977997524
Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.3031304237243214
Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.2656317379677093
Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.007907708513531383
Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.12912062759419046
Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.1552747487006949
Radioactive Waste Disposed Of Kg Total Life Cycle : 0.013393245864183327
Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0053062606665110175
Radioactive Waste Disposed Of Kg Distribution A4 : 0.007778029350592489
Radioactive Waste Disposed Of Kg Installation A5 : 0.00020603962590888135
Radioactive Waste Disposed Of Kg Maintenance B2 : 0
Radioactive Waste Disposed Of Kg Repair B3 : 0
Radioactive Waste Disposed Of Kg Replacement B4 : 0
Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00010291622117093958
Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.02328357514679276
Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 2.1941129185336505
Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.9822084733707168
Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.7968041827329871
Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.034497161569587376
Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.38060310086035903
Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.4579315777441851
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.6771995061614478
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.6771995061614478
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 7993.338580003611
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 4158.9397916789185
Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 486.7727344743802
Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 43.65818048527078
Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 3303.9678733650426
Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -1491.9052145739015
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 84.06535156348758
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 78.9231719158797
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0031824165258325173
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 5.06199530976085
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.07700192132120134
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -52.535146348833806
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.6771995061614478
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.6771995061614478
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7906.596028933962
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4077.3394202568766
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 486.7695520578543
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 38.596185175509945
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 3303.8908714437216
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1439.3700682250678
Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 75.3769232934553
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 75.3769232934553
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -53.849377910204076
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 8.6884282700323
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.546248622424416
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0031824165258325173
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 5.06199530976085
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.07700192132120134
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 1.3142315613702642
Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
Use Of Renewable Secondary Fuels Mj Repair B3 : 0
Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Secondary Materials Kg Total Life Cycle : 0
Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
Use Of Secondary Materials Kg Distribution A4 : 0
Use Of Secondary Materials Kg Installation A5 : 0
Use Of Secondary Materials Kg Maintenance B2 : 0
Use Of Secondary Materials Kg Repair B3 : 0
Use Of Secondary Materials Kg Replacement B4 : 0
Use Of Secondary Materials Kg Operational Energy Use B6 : 0
Use Of Secondary Materials Kg End Of Life C1 C4 : 0
Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
Water Use M3 Eq Total Life Cycle : 52.87005928718334
Water Use M3 Eq Manufacturing A1 A3 : 33.68888404515442
Water Use M3 Eq Distribution A4 : 1.9847808936764042
Water Use M3 Eq Installation A5 : 0.30072918250352987
Water Use M3 Eq Maintenance B2 : 0
Water Use M3 Eq Repair B3 : 0
Water Use M3 Eq Replacement B4 : 0
Water Use M3 Eq Operational Energy Use B6 : 0
Water Use M3 Eq End Of Life C1 C4 : 16.89566516584899
Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -26.04465255806305
Air Pollution M3 Total Life Cycle : 0
Air Pollution M3 Manufacturing A1 A3 : 0
Air Pollution M3 Distribution A4 : 0
Air Pollution M3 Installation A5 : 0
Air Pollution M3 Maintenance B2 : 0
Air Pollution M3 Repair B3 : 0
Air Pollution M3 Replacement B4 : 0
Air Pollution M3 Operational Energy Use B6 : 0
Air Pollution M3 End Of Life C1 C4 : 0
Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
Water Pollution M3 Total Life Cycle : 0
Water Pollution M3 Manufacturing A1 A3 : 0
Water Pollution M3 Distribution A4 : 0
Water Pollution M3 Installation A5 : 0
Water Pollution M3 Maintenance B2 : 0
Water Pollution M3 Repair B3 : 0
Water Pollution M3 Replacement B4 : 0
Water Pollution M3 Operational Energy Use B6 : 0
Water Pollution M3 End Of Life C1 C4 : 0
Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0

General Attributes

Product Or Component Type : compact enclosure

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=44783329&lang=en-us
Take Back : No
Reach Free SHVC : Yes
China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
Toxic Heavy Metal Free : Yes
Mercury Free : Yes
Carbon Footprint : 186.531660582637
Environmental Disclosure : ENVPEP100104EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : No
Packaging Without Single Use Plastic : No
Reach Free Of SVHC : Yes
Reach Regulation : Free of Substances of Very High Concern above the threshold
Pep Code : ENVPEP100104EN
Pep Verification Date : 2024-08-01
PCR Version : PCR-4-ed4-EN-2021 09 06
PSR Version : PSR-0005-ed3.1-EN-2023 12 08
Type Of Verification For The Pep : Independent external review

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months

Specifications

Country of Origin : France

Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 800x600x200mm, IP66, IK10

S3DC H800xW600xD200 plain door

characters left.
