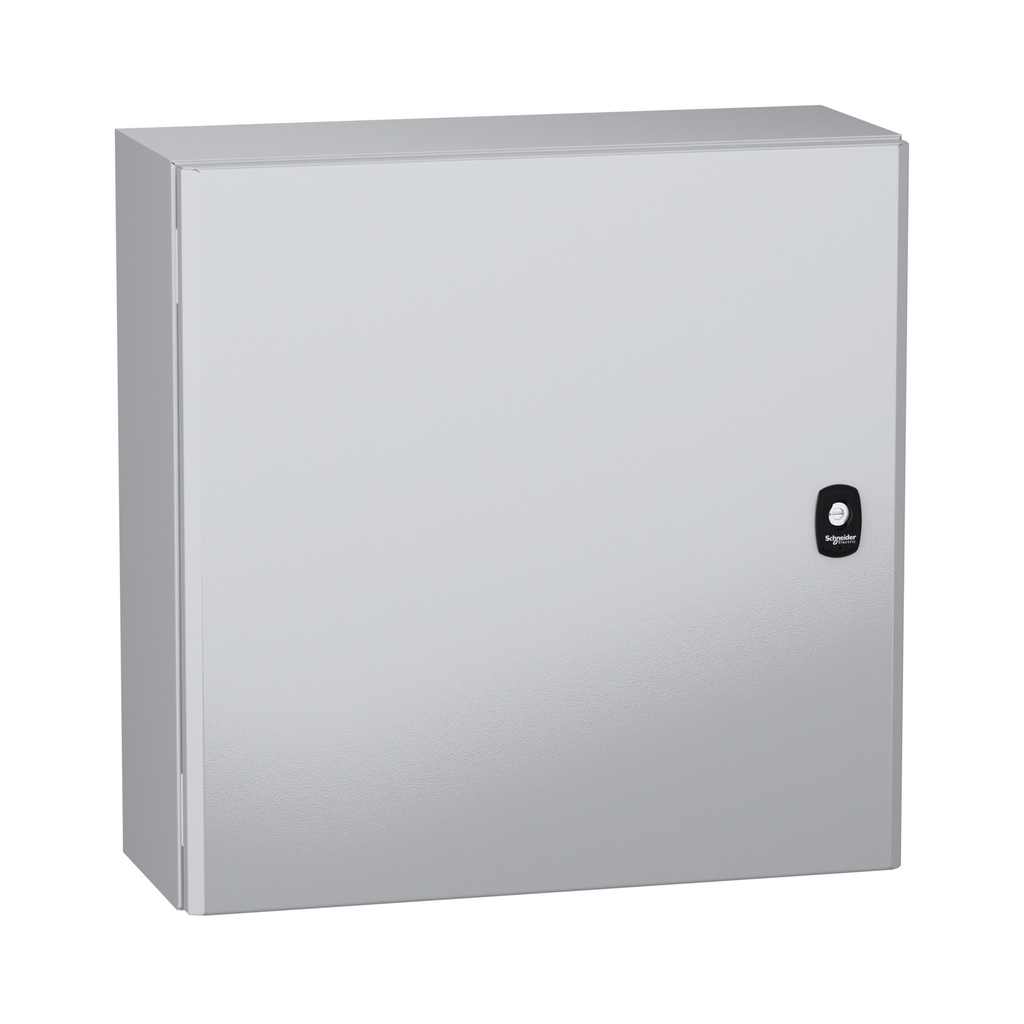

Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 500x500x200mm, IP66, IK10

S3DC H500xW500xD200 plain door

SQDNSYS3DC5520 NSYS3DC5520 3606480314056
162.24 / EA
http://schema.org/OutOfStock
Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 500x500x200mm, IP66, IK10
  • Country of Origin: France
  • Door Type: Solid
  • Enclosure Height: 500 mm
  • Enclosure Width: 500 mm
  • Finish: Epoxy-Polyester Powder
  • Lock Type: Screw Driver Insert Lock
  • Material: Steel
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Carbon Footprint Of The Installation Phase A5
    • 2.0489772663761587
    • 2 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 25 kg CO2 eq.
    • 24.50088317832947
  • Standards
    • IEC 62208
    • UL
    • cUL
  • Ip Degree Of Protection
    • IP66 IEC 60529
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 51 kg CO2 eq.
    • 50.77900940629219
  • Number Of Doors
    • front face 1
  • Removable Parts
    • door by hinges
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Device Composition
    • 1 body
    • 1 door
    • 1 lock
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Variant Particularity
    • single piece body
    • gutter-shaped front profile double sheet thickness
  • Carbon Footprint Of The Distribution Phase A4
    • 20.647355909579424
    • 21 kg CO2 eq.
  • Door Opening Side
    • reversible 120 °)
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Color
    • Gray RAL 7035)
  • Physical Attributes
    • Enclosure Nominal Height : 500 mm
    • Enclosure Nominal Width : 500 mm
  • Conformance Attributes
    • Product Certifications : UL
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-23
    • ETIM 10 : EC000747
    • Manufacturing Carbon Footprint : 50.7790094062922
    • Distribution Carbon Footprint : 20.6473559095794
    • Installation Carbon Footprint : 2.04897726637616
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 24.5008831783295
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1916
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Device Application : multi-purpose
    • Door Type : Solid
    • Energy Efficiency Optimized : False
    • Installation Accessory Type : wall-mounting
    • Lock Type : screw driver insert lock
    • Material : steel
    • Mounting Plate Description : without mounting plate
    • Package Weight Lbs : 10.400 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : compact enclosure
    • Range : PanelSeT
    • Returnability : Yes
    • Surface Finish : epoxy-polyester powder
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 98 kg CO2 eq.
    • Type Of Gland Plate : without gland plate
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 97.97622576057724
  • General Attributes
    • Product Or Component Type : compact enclosure
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=44783313&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 97.9762257605772
    • Environmental Disclosure : ENVPEP100104EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Nema Degree Of Protection : NEMA 4X/13
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
