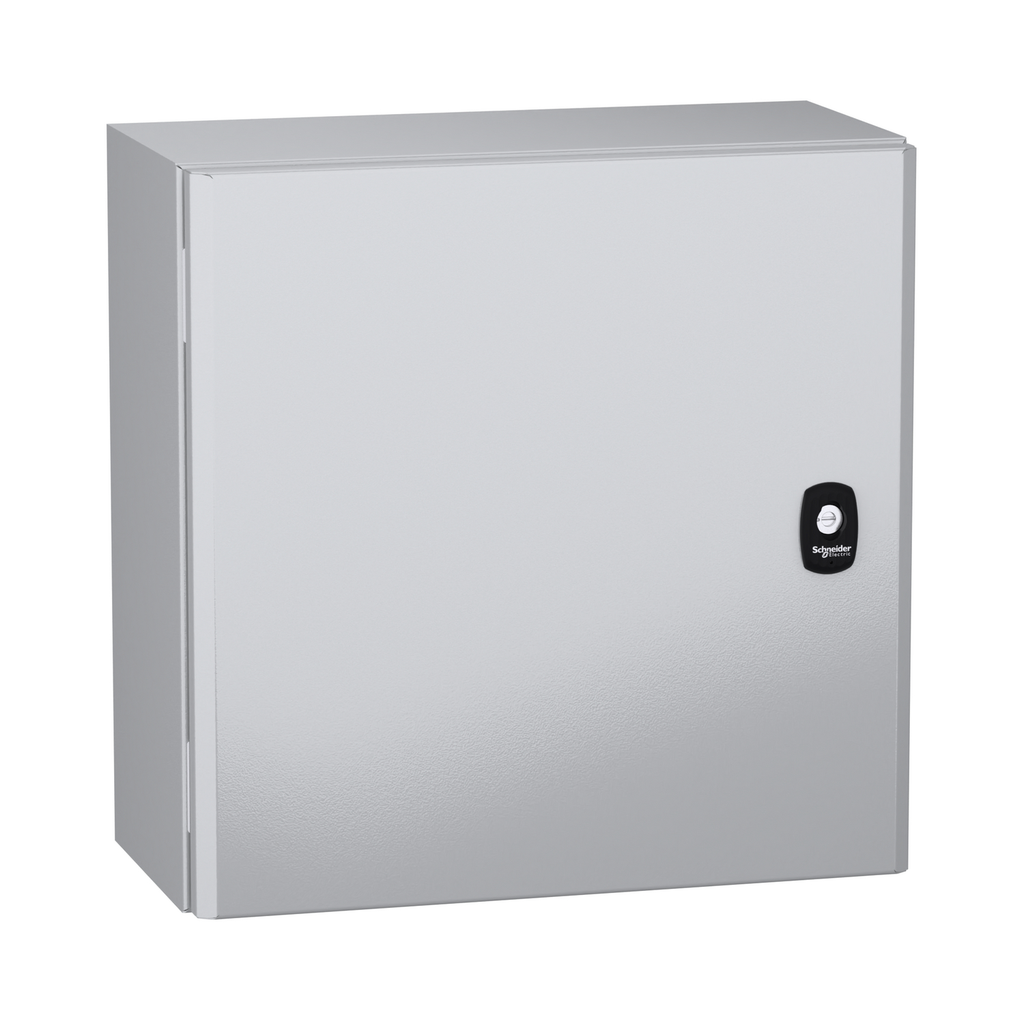

Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 400x400x200mm, IP66, IK10

Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 400x400x200mm, IP66, IK10

SQDNSYS3DC4420 NSYS3DC4420 3606480314025
133.09 / EA
http://schema.org/OutOfStock
Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 400x400x200mm, IP66, IK10
  • Country of Origin: France
  • Door Type: Solid
  • Enclosure Depth: 200 mm
  • Enclosure Height: 400 mm
  • Enclosure Width: 400 mm
  • Height: 400 mm
  • Lock Type: Screw Driver Insert Lock
  • Net Weight: 7.25 kg
  • Number of Doors: Front Face 1
  • Surface Finish: Epoxy-Polyester Powder
  • Warranty Length: 18 mth
  • Weight: 7.25 kg
  • Width: 400 mm
QTY
  • Specifications
  • Environment
    • Ik Degree Of Protection : IK10 IEC 62262
    • Nema Degree Of Protection : NEMA 4X/13
    • Ip Degree Of Protection : IP66 IEC 60529
  • Contractual warranty
    • Coverage : Core product
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP100104EN
    • Packaging Without Single Use Plastic : No
    • Scip Number : e893f0a0-d2cc-4011-9425-3873dde70142
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 68 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 68.30073430424855
  • Complementary
    • Product Certifications : UL
    • Accessibility For Operation : front
    • Removable Parts : door by hinges
    • Standards : IEC 62208 || UL || cUL
    • Variant Particularity : gutter-shaped front profile double sheet thickness || single piece body
    • Lock Type : screw driver insert lock
    • Net Weight : 7.25 kg
    • Door Opening Side : reversible 120 °)
    • Number Of Doors : front face 1
    • Material : steel
    • Surface Finish : epoxy-polyester powder
    • Color : Gray RAL 7035)
  • Specifications
    • Country of Origin : France
    • Width : 400 mm
    • Height : 400 mm
    • Weight : 7.25 kg
    • Type Of Gland Plate : without gland plate
    • Installation Accessory Type : wall-mounting
    • Product Or Component Type : compact enclosure
    • Product Name : PanelSeT S3DC
    • Device Composition : 1 body || 1 door || 1 lock
    • Enclosure Nominal Height : 400 mm
    • Range : PanelSeT
    • Door Type : Solid
    • Enclosure Nominal Depth : 200 mm
    • Device Application : multi-purpose
    • Enclosure Nominal Width : 400 mm
    • Mounting Plate Description : without mounting plate
