Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x800x400mm, IP66, IK10

Name: Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x800x400mm, IP66, IK10
Brand: SCHNEIDER ELECTRIC
SKU: SQDNSYS3DC10840
Price: 374.46 USD
Availability: OutOfStock

SQDNSYS3DC10840 NSYS3DC10840 3606480314223

374.46 / EA

http://schema.org/OutOfStock

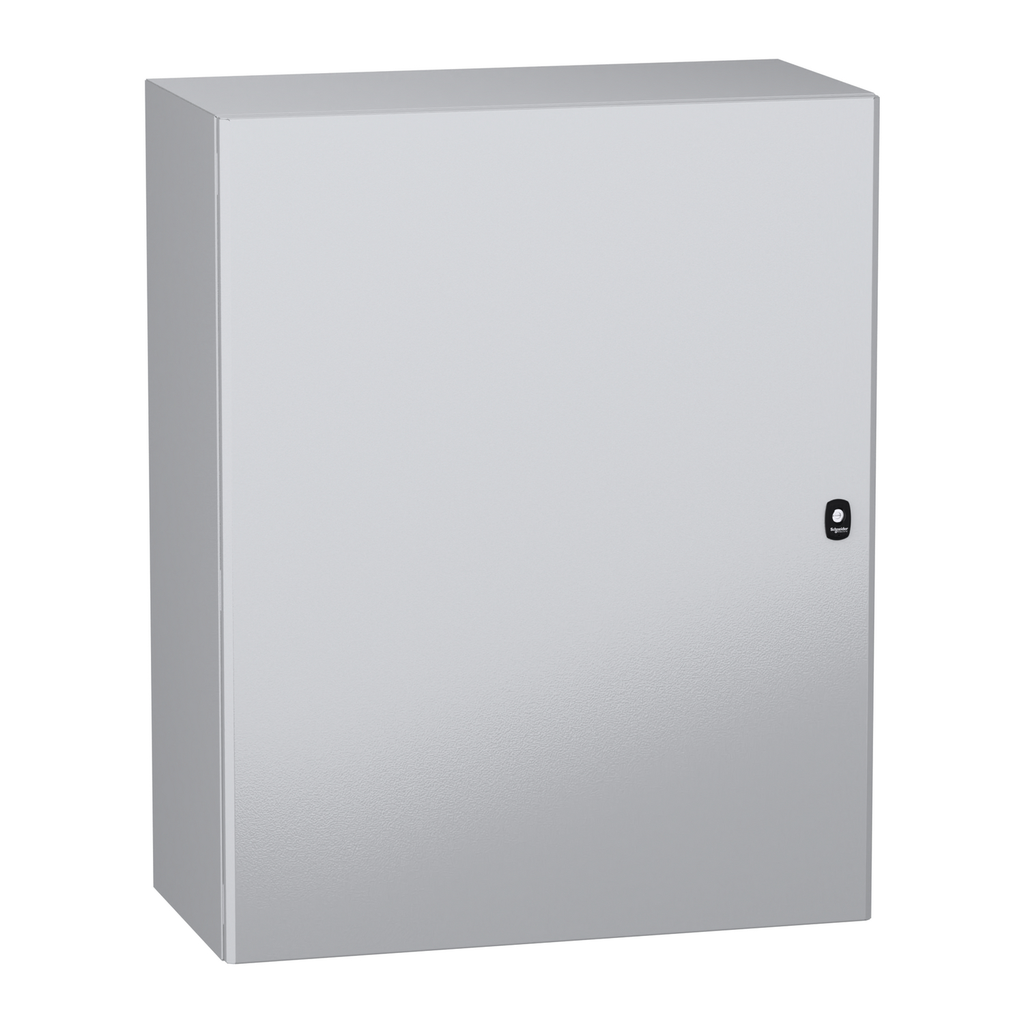

Mayer-DDS-Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x800x400mm, IP66, IK10-1

Door Type: Solid
Enclosure Height: 1000 mm
Enclosure Width: 800 mm
Finish: Epoxy-Polyester Powder
Lock Type: 3 Points Lock, Screw Driver Insert
Material: Steel
Number of Doors: Front Face 1
Warranty Length: 18 mth

QTY

Features
Specifications

Features

Steel wall-mounting enclosure designed for harsh environments.
Protection of internal components ensured by high impact resistance.
High resistance to dust and water penetration.
Reversible door that can be opened up to 120° for easy access.
Reinforced reusable packaging.

Physical Attributes

Color : Gray RAL 7035)
Enclosure Nominal Height : 1000 mm
Enclosure Nominal Width : 800 mm

Conformance Attributes

Standards : IEC 62208, UL, cUL
Product Certifications : UL

Important Information Attributes

Persona Type Ids : LC, OM, OM8, PB, SI
Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation Id : COMMERCIAL, INDUSTRIAL
Market Segmentation : Commercial, Industrial
Device Composition : 1 body, 1 door, 1 lock
Carbon Footprint Of The Distribution Phase A4 : 83.38355271176304, 83 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4 : 99 kg CO2 eq., 98.94587437402285
Carbon Footprint Of The Installation Phase A5 : 8.27471588344218, 8 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3 : 205 kg CO2 eq., 205.06907644848766
Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
Local Data Status : Publishable
Local Publishable Date : 2025-09-23
Legacy WEEE Scope : Out
Scope Perimeter : At least in Europe
EOLI Availability Display : No need of specific recycling operations
Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : No
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : No
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : Y
Function Option Id : STANDARD
Function Option : Standard
Device Application : multi-purpose
Door Opening Side : reversible 120 °)
Door Type : Solid
Energy Efficiency Optimized : False
Lock Type : 3 points lock, screw driver insert
Material : steel
Mounting Plate Description : without mounting plate
Number Of Doors : front face 1
Package Weight Lbs : 42.000 kg
Product Availability : Stock - Normally stocked in distribution facility
Product Or Component Type : compact enclosure
Range : PanelSeT
Removable Parts : door by hinges
Returnability : Yes
Surface Finish : epoxy-polyester powder
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 396 kg CO2 eq.
Type Of Gland Plate : without gland plate
Medium Desc : Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x800x400mm, IP66, IK10
Stocking Flag : N
Product Kit Identifier : N
Pep Code : ENVPEP1001004EN
Database Version : 2023-02
Pep Verification Date : 2024-08-01
Pcr Version : PCR-4-ed4-EN-2021 09 06
Psr Version : PSR-0005-ed3.1-EN-2023 12 08
Type Of Verification For The Pep : Independent external review
Data Source : extrapolated product
Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit : Unit
Energy Model Manufacturing A1 A3 2 : France, FR
Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
Global Commercial Status : Commercialised
Product Name : PanelSeT S3DC

Environment Attributes Main

Take Back : No, Nej
China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption Information : Yes
Reach Free SHVC : Yes
Recycled Metal Content At Cr Level : 0 %
Toxic Heavy Metal Free : Yes
Mercury Free : Yes
Carbon Footprint : 395.6732194177157
Environmental Disclosure : ENVPEP1001004EN
IP Degree Of Protection : IP66 IEC 60529
Nema Degree Of Protection : NEMA 4X/13
Packaging Made With Recycled Cardboard : No
Packaging Without Single Use Plastic : No
Reach Free Of SVHC : Yes
Reach Regulation : Free of Substances of Very High Concern above the threshold
Pep Code : ENVPEP1001004EN
Pep Verification Date : 2024-08-01
Pcr Version : PCR-4-ed4-EN-2021 09 06
Psr Version : PSR-0005-ed3.1-EN-2023 12 08
Type Of Verification For The Pep : Independent external review

General Attributes

Product Or Component Type : compact enclosure

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months
