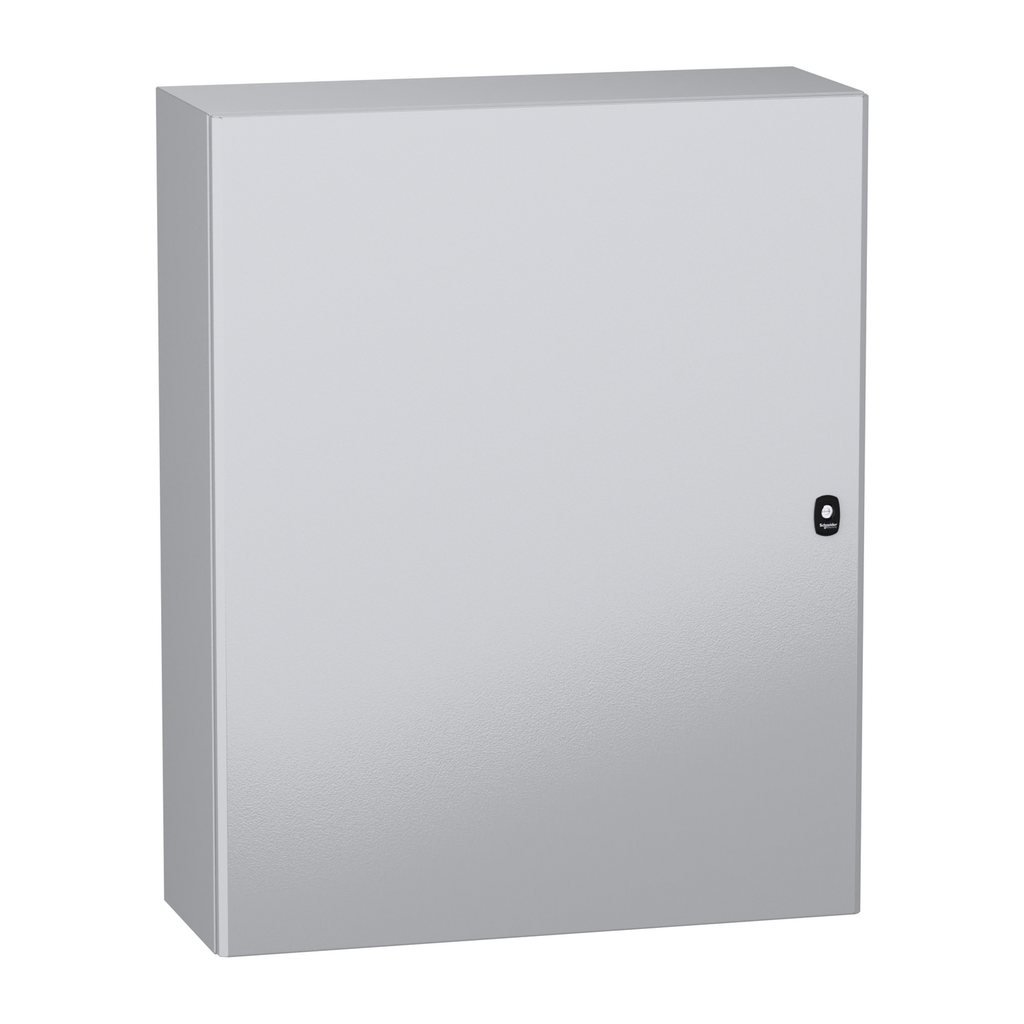

Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x800x300mm, IP66, IK10

Name: Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x800x300mm, IP66, IK10
Brand: Mayer Electric Supply
SKU: SQDNSYS3DC10830
Price: 367.11 USD
Availability: OutOfStock

S3DC H1000xW800xD300 plain doo

SQDNSYS3DC10830 NSYS3DC10830 3606480314216

367.11 / EA

http://schema.org/OutOfStock

Mayer-DDS-Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x800x300mm, IP66, IK10-1

Country of Origin: France
Enclosure Height: 1000 mm
Enclosure Width: 800 mm
Finish: Epoxy-Polyester Powder
Material: Steel
Warranty Length: 18 mth

QTY

Features
Specifications

https://download.schneider-electric.com/files?p_Doc_Ref=NSYS3DC10830_3D-CAD&p_File_name=NSYS3DC10830_3D-simplified.stp
https://download.schneider-electric.com/files?p_Doc_Ref=NSYS3DC10830_3D-CAD&p_File_name=NSYS3DC10830_2D-back.dwg
https://download.s

IP Degree Of Protection

IP66 IEC 60529

Carbon Footprint Of The Installation Phase A5

6.737982933660061
7 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

81 kg CO2 eq.
80.57021199027575

Standards

IEC 62208
UL
cUL

Carbon Footprint Of The Manufacturing Phase A1 To A3

167 kg CO2 eq.
166.98481939376853

Number Of Doors

front face 1

Removable Parts

door by hinges

Market Segmentation

Commercial
Industrial

Persona Type Names

Contractor
Original Equipment Manufacturer
OEM - Control Panelbuilder
Panel Builder
System Integrator

Device Composition

1 body
1 door
1 lock

Carbon Footprint Of The Use Phase B2 B3 B4 B6

0 kg CO2 eq.
0

Persona Type Ids

Variant Particularity

single piece body
gutter-shaped front profile double sheet thickness

Carbon Footprint Of The Distribution Phase A4

67.89803577957848
68 kg CO2 eq.

Door Opening Side

reversible 120 °)

Market Segmentation Id

COMMERCIAL
INDUSTRIAL

Color

Gray RAL 7035)

Physical Attributes

Enclosure Nominal Height : 1000 mm
Enclosure Nominal Width : 800 mm

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 9/23/2025
Manufacturing Carbon Footprint : 166.9848194
Distribution Carbon Footprint : 67.89803578
Installation Carbon Footprint : 6.737982934
Use Carbon Footprint : 0
End Of Life Carbon Footprint : 80.57021199
Legacy WEEE Scope : Out
Scope Perimeter : At least in Europe
EOLI Availability Display : No need of specific recycling operations
Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant
ROHS EUR Conformity Date : 1916
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : No
China ROHS Label : 1
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : No
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : Y
WD Status : 1 - GSC certified
Tier Id : 2
Tier : 2
Function Option Id : STANDARD
Function Option : Standard
Installation Accessory Type : wall-mounting
Material : steel
Package Weight Lbs : 34.200 kg
Product Availability : Stock - Normally stocked in distribution facility
Product Or Component Type : compact enclosure
Range : PanelSeT
Returnability : Yes
Surface Finish : epoxy-polyester powder
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 322 kg CO2 eq.
Type Of Gland Plate : without gland plate
Carbon Footprint Kg Co2 Eq Total Life Cycle : 322.1910501
Pep Code : ENVPEP100104EN
Pep Verification Date : 8/1/2024
PCR Version : PCR-4-ed4-EN-2021 09 06
PSR Version : PSR-0005-ed3.1-EN-2023 12 08
Type Of Verification For The Pep : Independent external review
Product Weight In G : 34200
Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the
Functional Unit Quantity : 1
Functional Unit Unit : Unit
Reference Lifetime In Y : 20
Energy Consumption On Product Lifetime In Kwh : 0
Energy Model Manufacturing A1 A3 : France, FR
Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Europe, EU-27
Acidification Ap Mole Of H Equiv Total Life Cycle : 1.340259364
Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.756492193
Acidification Ap Mole Of H Equiv Distribution A4 : 0.278843002
Acidification Ap Mole Of H Equiv Installation A5 : 0.019694161
Acidification Ap Mole Of H Equiv Maintenance B2 : 0
Acidification Ap Mole Of H Equiv Repair B3 : 0
Acidification Ap Mole Of H Equiv Replacement B4 : 0
Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.285230008
Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.653300904
Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 2.365190773
Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 2.02695161
Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.319249584
Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.018989579
Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -1.021089654
Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 319.8258593
Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 164.9578678
Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 67.89803578
Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 6.418733349
Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 80.5512224
Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -111.467079
Climate Change Total Kg Co2 Eq Total Life Cycle : 322.1910501
Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 166.9848194
Climate Change Total Kg Co2 Eq Distribution A4 : 67.89803578
Climate Change Total Kg Co2 Eq Installation A5 : 6.737982934
Climate Change Total Kg Co2 Eq Maintenance B2 : 0
Climate Change Total Kg Co2 Eq Repair B3 : 0
Climate Change Total Kg Co2 Eq Replacement B4 : 0
Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 80.57021199
Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -112.4881686
Components For Re Use Kg Total Life Cycle : 0
Components For Re Use Kg Manufacturing A1 A3 : 0
Components For Re Use Kg Distribution A4 : 0
Components For Re Use Kg Installation A5 : 0
Components For Re Use Kg Maintenance B2 : 0
Components For Re Use Kg Repair B3 : 0
Components For Re Use Kg Replacement B4 : 0
Components For Re Use Kg Operational Energy Use B6 : 0
Components For Re Use Kg End Of Life C1 C4 : 0
Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000566782
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000563502
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 5.80842E-09
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 1.65352E-07
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 3.10887E-06
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.032919018
Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 13661.47194
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 7047.301434
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 840.7837717
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 66.66613803
Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 5706.720596
Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -2486.184663
Ecotoxicity Fresh Water Ctue Total Life Cycle : 2583.804025
Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 2142.333092
Ecotoxicity Fresh Water Ctue Distribution A4 : 276.9295569
Ecotoxicity Fresh Water Ctue Installation A5 : 76.07650403
Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
Ecotoxicity Fresh Water Ctue Repair B3 : 0
Ecotoxicity Fresh Water Ctue Replacement B4 : 0
Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 88.46487184
Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1926.917283
Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 6.54229E-06
Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 4.1444E-06
Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 7.67731E-07
Emission Of Fine Particles Incidence Of Diseases Installation A5 : 1.18282E-07
Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 1.51187E-06
Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -5.81023E-05
Exported Energy Mj By Energy Vector Total Life Cycle : 0.583156053
Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.042021851
Exported Energy Mj By Energy Vector Distribution A4 : 0
Exported Energy Mj By Energy Vector Installation A5 : 0.274895484
Exported Energy Mj By Energy Vector Maintenance B2 : 0
Exported Energy Mj By Energy Vector Repair B3 : 0
Exported Energy Mj By Energy Vector Replacement B4 : 0
Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.266238718
Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.000494062
Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.000258441
Freshwater Eutrophication Kg P Eq Distribution A4 : 7.91244E-06
Freshwater Eutrophication Kg P Eq Installation A5 : 0.000154171
Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
Freshwater Eutrophication Kg P Eq Repair B3 : 0
Freshwater Eutrophication Kg P Eq Replacement B4 : 0
Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 7.35372E-05
Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.000259684
Hazardous Waste Disposed Of Kg Total Life Cycle : 5.927292954
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 5.703098499
Hazardous Waste Disposed Of Kg Distribution A4 : 0.055984684
Hazardous Waste Disposed Of Kg Installation A5 : 0.16776848
Hazardous Waste Disposed Of Kg Maintenance B2 : 0
Hazardous Waste Disposed Of Kg Repair B3 : 0
Hazardous Waste Disposed Of Kg Replacement B4 : 0
Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.000441291
Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -2598.570801
Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 4.79802E-06
Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 4.02897E-06
Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 9.95252E-10
Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 7.60537E-07
Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 7.52466E-09
Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.000382268
Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 4.70509E-06
Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 2.82543E-06
Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 1.56948E-07
Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 2.78754E-08
Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.69484E-06
Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -6.24002E-06
Impacts Related To Land Use Soil Quality Total Life Cycle : 0.30904837
Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.270458433
Impacts Related To Land Use Soil Quality Distribution A4 : 0
Impacts Related To Land Use Soil Quality Installation A5 : 0.018395985
Impacts Related To Land Use Soil Quality Maintenance B2 : 0
Impacts Related To Land Use Soil Quality Repair B3 : 0
Impacts Related To Land Use Soil Quality Replacement B4 : 0
Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.020193952
Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -0.064420513
Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 4.290666544
Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 3.094664049
Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.14981673
Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 1.028174444
Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.018011321
Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -21.47423109
Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.355202369
Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.159459884
Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.126882568
Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.008565711
Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.060294206
Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.070775908
Materials For Energy Recovery Kg Total Life Cycle : 0
Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
Materials For Energy Recovery Kg Distribution A4 : 0
Materials For Energy Recovery Kg Installation A5 : 0
Materials For Energy Recovery Kg Maintenance B2 : 0
Materials For Energy Recovery Kg Repair B3 : 0
Materials For Energy Recovery Kg Replacement B4 : 0
Materials For Energy Recovery Kg Operational Energy Use B6 : 0
Materials For Energy Recovery Kg End Of Life C1 C4 : 0
Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
Materials For Recycling Kg Total Life Cycle : 30.95875669
Materials For Recycling Kg Manufacturing A1 A3 : 4.041287214
Materials For Recycling Kg Distribution A4 : 0
Materials For Recycling Kg Installation A5 : 0
Materials For Recycling Kg Maintenance B2 : 0
Materials For Recycling Kg Repair B3 : 0
Materials For Recycling Kg Replacement B4 : 0
Materials For Recycling Kg Operational Energy Use B6 : 0
Materials For Recycling Kg End Of Life C1 C4 : 26.91746948
Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
Net Use Of Fresh Water M3 Total Life Cycle : 2.126255082
Net Use Of Fresh Water M3 Manufacturing A1 A3 : 1.354863382
Net Use Of Fresh Water M3 Distribution A4 : 0.079819742
Net Use Of Fresh Water M3 Installation A5 : 0.012097647
Net Use Of Fresh Water M3 Maintenance B2 : 0
Net Use Of Fresh Water M3 Repair B3 : 0
Net Use Of Fresh Water M3 Replacement B4 : 0
Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.679474311
Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -1.047525874
Non Hazardous Waste Disposed Of Kg Total Life Cycle : 19.11963985
Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 15.16111635
Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.068776366
Non Hazardous Waste Disposed Of Kg Installation A5 : 2.879438502
Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
Non Hazardous Waste Disposed Of Kg Repair B3 : 0
Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.010308637
Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -89.06390983
Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 6.03872E-05
Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 6.57966E-07
Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 5.96305E-05
Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 8.71712E-08
Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 1.14828E-08
Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -1.56755E-05
Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 1.219092678
Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.523588914
Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.458818456
Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.013658769
Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.223026539
Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.268201839
Radioactive Waste Disposed Of Kg Total Life Cycle : 0.023133788
Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.009165359
Radioactive Waste Disposed Of Kg Distribution A4 : 0.013434778
Radioactive Waste Disposed Of Kg Installation A5 : 0.000355887
Radioactive Waste Disposed Of Kg Maintenance B2 : 0
Radioactive Waste Disposed Of Kg Repair B3 : 0
Radioactive Waste Disposed Of Kg Replacement B4 : 0
Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.000177764
Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.040217084
Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 3.789831405
Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 1.696541909
Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 1.376298134
Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.059586006
Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.657405356
Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.790972725
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.624253692
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.624253692
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 13806.67573
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 7183.623277
Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 840.7892686
Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 75.40958447
Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 5706.853599
Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -2576.927189
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 145.2037891
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 136.3218424
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.005496901
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 8.743446444
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.133003319
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -90.74252551
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.624253692
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.624253692
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 13656.84769
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7042.67718
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 840.7837717
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 66.66613803
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 5706.720596
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -2486.184663
Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 130.1965039
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 130.1965039
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -93.01256184
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 15.00728519
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.12533853
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.005496901
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 8.743446444
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.133003319
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 2.270036333
Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
Use Of Renewable Secondary Fuels Mj Repair B3 : 0
Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Secondary Materials Kg Total Life Cycle : 0
Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
Use Of Secondary Materials Kg Distribution A4 : 0
Use Of Secondary Materials Kg Installation A5 : 0
Use Of Secondary Materials Kg Maintenance B2 : 0
Use Of Secondary Materials Kg Repair B3 : 0
Use Of Secondary Materials Kg Replacement B4 : 0
Use Of Secondary Materials Kg Operational Energy Use B6 : 0
Use Of Secondary Materials Kg End Of Life C1 C4 : 0
Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
Water Use M3 Eq Total Life Cycle : 91.3210115
Water Use M3 Eq Manufacturing A1 A3 : 58.18989062
Water Use M3 Eq Distribution A4 : 3.428257907
Water Use M3 Eq Installation A5 : 0.519441315
Water Use M3 Eq Maintenance B2 : 0
Water Use M3 Eq Repair B3 : 0
Water Use M3 Eq Replacement B4 : 0
Water Use M3 Eq Operational Energy Use B6 : 0
Water Use M3 Eq End Of Life C1 C4 : 29.18342165
Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -44.98621805
Air Pollution M3 Total Life Cycle : 0
Air Pollution M3 Manufacturing A1 A3 : 0
Air Pollution M3 Distribution A4 : 0
Air Pollution M3 Installation A5 : 0
Air Pollution M3 Maintenance B2 : 0
Air Pollution M3 Repair B3 : 0
Air Pollution M3 Replacement B4 : 0
Air Pollution M3 Operational Energy Use B6 : 0
Air Pollution M3 End Of Life C1 C4 : 0
Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
Water Pollution M3 Total Life Cycle : 0
Water Pollution M3 Manufacturing A1 A3 : 0
Water Pollution M3 Distribution A4 : 0
Water Pollution M3 Installation A5 : 0
Water Pollution M3 Maintenance B2 : 0
Water Pollution M3 Repair B3 : 0
Water Pollution M3 Replacement B4 : 0
Water Pollution M3 Operational Energy Use B6 : 0
Water Pollution M3 End Of Life C1 C4 : 0
Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
Warranty In Months : 18

General Attributes

Product Or Component Type : compact enclosure

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=44783287&lang=en-us
Take Back : No
Reach Free SHVC : Yes
Recycled Metal Content At Cr Level : 0%
China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
Toxic Heavy Metal Free : Yes
Mercury Free : Yes
Carbon Footprint : 322.1910501
Environmental Disclosure : ENVPEP100104EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : No
Packaging Without Single Use Plastic : No
Reach Free Of SVHC : Yes
Reach Regulation : Free of Substances of Very High Concern above the threshold
Pep Code : ENVPEP100104EN
Pep Verification Date : 8/1/2024
PCR Version : PCR-4-ed4-EN-2021 09 06
PSR Version : PSR-0005-ed3.1-EN-2023 12 08
Type Of Verification For The Pep : Independent external review

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months

Specifications

Country of Origin : France

Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x800x300mm, IP66, IK10

S3DC H1000xW800xD300 plain doo

characters left.
