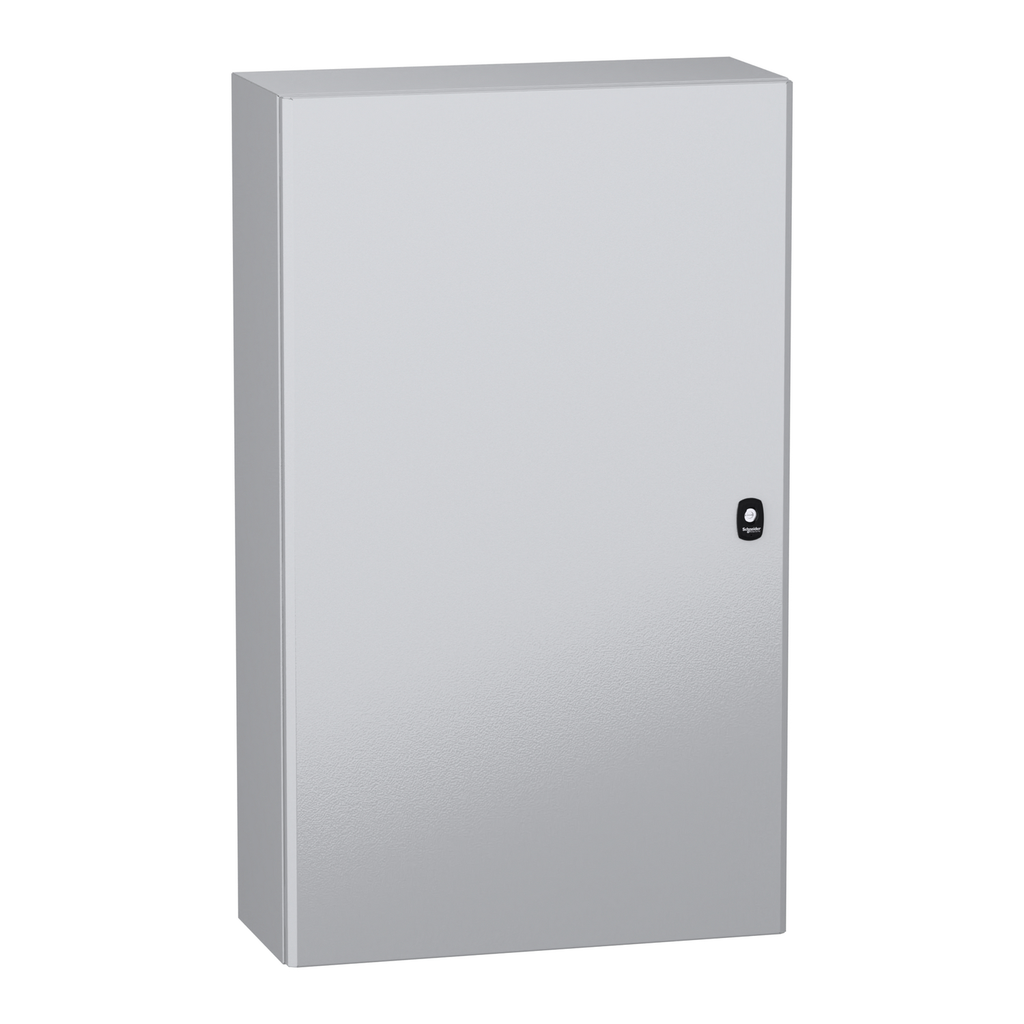

Wall mounted steel enclosure, Spacial S3DC, plain door, without plain chasis, 1000x600x250mm, IP66, IK10

S3DC H1000xW600xD250 plain doo

SQDNSYS3DC10625 NSYS3DC10625 3606480314193
316.66 / EA
http://schema.org/OutOfStock
Mayer-DDS-Wall mounted steel enclosure, Spacial S3DC, plain door, without plain chasis, 1000x600x250mm, IP66, IK10-1
  • Certifications: UL
  • Material: Steel
  • Net Weight: 25.5 kg
  • Standard: IEC 62208
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Environment
    • Ik Degree Of Protection : IK10 IEC 62262
    • Nema Degree Of Protection : NEMA 4X/13
    • Ip Degree Of Protection : IP66 IEC 60529
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP100104EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Complementary
    • Product Certifications : UL
    • Accessibility For Operation : front
    • Removable Parts : door by hinges
    • Standards : IEC 62208
    • Material : steel
    • Variant Particularity : gutter-shaped front profile double sheet thickness || single piece body
    • Surface Finish : epoxy-polyester powder
    • Color : Gray RAL 7035)
    • Lock Type : 3 points lock, screw driver insert
    • Net Weight : 25.5 kg
    • Door Opening Side : reversible 120 °)
    • Number Of Doors : front face 1
  • Specifications
    • Type Of Gland Plate : without gland plate
    • Installation Accessory Type : wall-mounting
    • Product Or Component Type : compact enclosure
    • Product Name : Spacial S3DC
    • Device Composition : 1 body || 1 door || 1 lock
    • Enclosure Nominal Height : 1000 mm
    • Door Type : Solid
    • Enclosure Nominal Depth : 250 mm
    • Device Application : multi-purpose
    • Enclosure Nominal Width : 600 mm
    • Mounting Plate Description : without mounting plate
    • Range : Spacial
