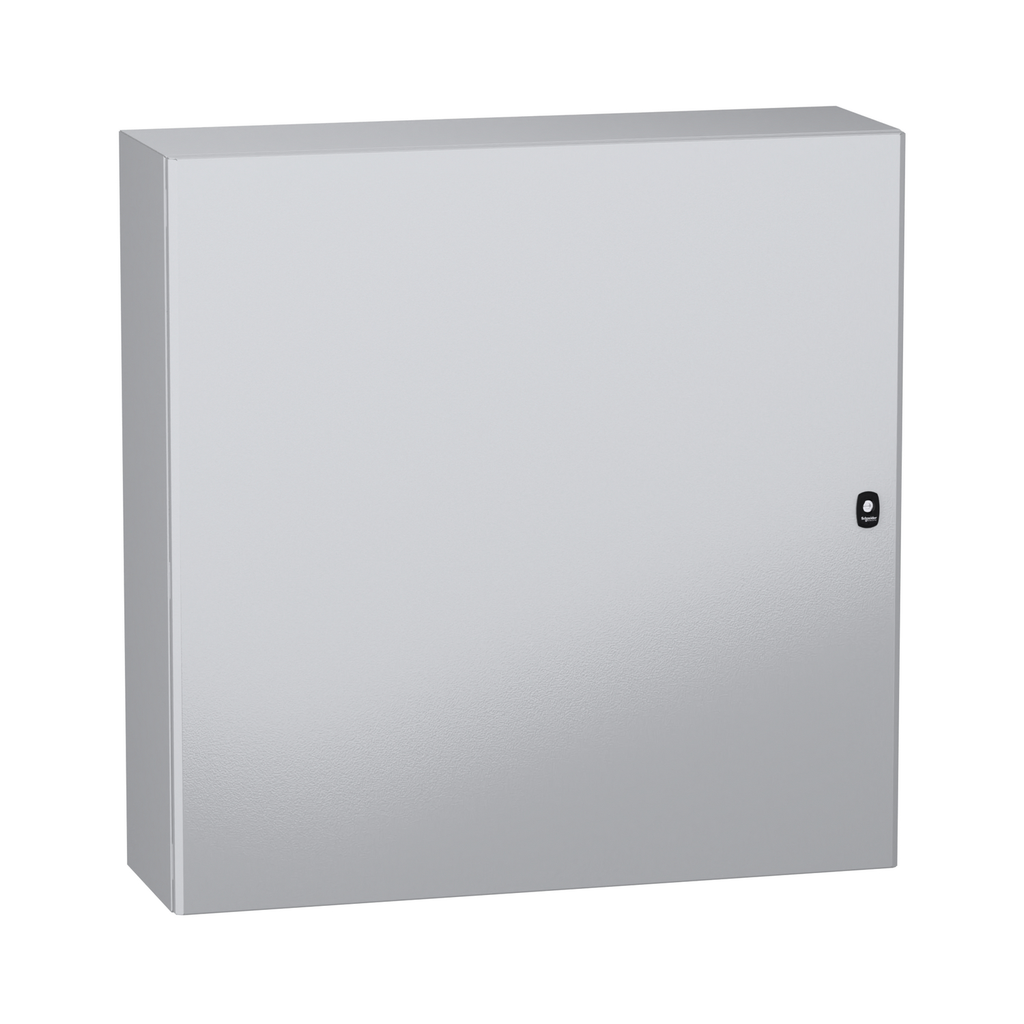

Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x1000x300mm, IP66, IK10

Name: Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x1000x300mm, IP66, IK10
Brand: SCHNEIDER ELECTRIC
SKU: SQDNSYS3DC101030
Price: 614.93 USD
Availability: OutOfStock

S3DC H1000xW1000xD300 plain do

SQDNSYS3DC101030 NSYS3DC101030 3606480314230

614.93 / EA

http://schema.org/OutOfStock

Mayer-DDS-Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x1000x300mm, IP66, IK10-1

Country of Origin: France
Enclosure Height: 1000 mm
Enclosure Width: 1000 mm
Finish: Epoxy-Polyester Powder
Material: Steel
Warranty Length: 18 mth

QTY

Features
Specifications

https://download.schneider-electric.com/files?p_Doc_Ref=NSYS3DC101030_3D-CAD&p_File_name=NSYS3DC101030_3D-simplified.stp
https://download.schneider-electric.com/files?p_Doc_Ref=NSYS3DC101030_3D-CAD&p_File_name=NSYS3DC101030_2D-back.dwg
https://downlo

IP Degree Of Protection

IP66 IEC 60529

Carbon Footprint Of The Installation Phase A5

8.865767017973765
9 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

106 kg CO2 eq.
106.01343682931021

Standards

IEC 62208
UL
cUL

Carbon Footprint Of The Manufacturing Phase A1 To A3

220 kg CO2 eq.
219.71686762337967

Number Of Doors

front face 1

Removable Parts

door by hinges

Market Segmentation

Commercial
Industrial

Persona Type Names

Contractor
Original Equipment Manufacturer
OEM - Control Panelbuilder
Panel Builder
System Integrator

Device Composition

1 body
1 door
1 lock

Carbon Footprint Of The Use Phase B2 B3 B4 B6

0 kg CO2 eq.
0

Persona Type Ids

Variant Particularity

gutter-shaped front profile double sheet thickness
single piece body

Carbon Footprint Of The Distribution Phase A4

89.33952076260327
89 kg CO2 eq.

Door Opening Side

reversible 120 °)

Market Segmentation Id

COMMERCIAL
INDUSTRIAL

Color

Gray RAL 7035)

Physical Attributes

Enclosure Nominal Height : 1000 mm
Enclosure Nominal Width : 1000 mm

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 9/23/2025
Manufacturing Carbon Footprint : 219.7168676
Distribution Carbon Footprint : 89.33952076
Installation Carbon Footprint : 8.865767018
Use Carbon Footprint : 0
End Of Life Carbon Footprint : 106.0134368
Legacy WEEE Scope : Out
Scope Perimeter : At least in Europe
EOLI Availability Display : No need of specific recycling operations
Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant
ROHS EUR Conformity Date : 1916
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : No
China ROHS Label : 1
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : No
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : Y
WD Status : 1 - GSC certified
Tier Id : 2
Tier : 2
Function Option Id : STANDARD
Function Option : Standard
Installation Accessory Type : wall-mounting
Material : steel
Package Weight Lbs : 45.000 kg
Product Availability : Stock - Normally stocked in distribution facility
Product Or Component Type : compact enclosure
Range : PanelSeT
Returnability : Yes
Surface Finish : epoxy-polyester powder
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 424 kg CO2 eq.
Type Of Gland Plate : without gland plate
Carbon Footprint Kg Co2 Eq Total Life Cycle : 423.9355922
Pep Code : ENVPEP100104EN
Pep Verification Date : 8/1/2024
PCR Version : PCR-4-ed4-EN-2021 09 06
PSR Version : PSR-0005-ed3.1-EN-2023 12 08
Type Of Verification For The Pep : Independent external review
Product Weight In G : 45000
Functional Unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the
Functional Unit Quantity : 1
Functional Unit Unit : Unit
Reference Lifetime In Y : 20
Energy Consumption On Product Lifetime In Kwh : 0
Energy Model Manufacturing A1 A3 : France, FR
Energy Model Installation A5 : Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model Use B6 : Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 : Electricity Mix; Low voltage; 2018; Europe, EU-27
Acidification Ap Mole Of H Equiv Total Life Cycle : 1.763499163
Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.995384465
Acidification Ap Mole Of H Equiv Distribution A4 : 0.366898687
Acidification Ap Mole Of H Equiv Installation A5 : 0.025913369
Acidification Ap Mole Of H Equiv Maintenance B2 : 0
Acidification Ap Mole Of H Equiv Repair B3 : 0
Acidification Ap Mole Of H Equiv Replacement B4 : 0
Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.375302642
Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.859606453
Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 3.112093123
Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 2.667041592
Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.420065242
Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.024986288
Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -1.343539018
Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 420.8234991
Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 217.049826
Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 89.33952076
Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 8.445701776
Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 105.9884505
Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -146.6672091
Climate Change Total Kg Co2 Eq Total Life Cycle : 423.9355922
Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 219.7168676
Climate Change Total Kg Co2 Eq Distribution A4 : 89.33952076
Climate Change Total Kg Co2 Eq Installation A5 : 8.865767018
Climate Change Total Kg Co2 Eq Maintenance B2 : 0
Climate Change Total Kg Co2 Eq Repair B3 : 0
Climate Change Total Kg Co2 Eq Replacement B4 : 0
Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 106.0134368
Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -148.0107482
Components For Re Use Kg Total Life Cycle : 0
Components For Re Use Kg Manufacturing A1 A3 : 0
Components For Re Use Kg Distribution A4 : 0
Components For Re Use Kg Installation A5 : 0
Components For Re Use Kg Maintenance B2 : 0
Components For Re Use Kg Repair B3 : 0
Components For Re Use Kg Replacement B4 : 0
Components For Re Use Kg Operational Energy Use B6 : 0
Components For Re Use Kg End Of Life C1 C4 : 0
Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000745765
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000741449
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 7.64265E-09
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 2.17568E-07
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 4.09062E-06
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.043314497
Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 17975.62097
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 9272.765045
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 1106.294436
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 87.71860267
Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 7508.84289
Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -3271.29561
Ecotoxicity Fresh Water Ctue Total Life Cycle : 3399.742138
Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 2818.859332
Ecotoxicity Fresh Water Ctue Distribution A4 : 364.3809959
Ecotoxicity Fresh Water Ctue Installation A5 : 100.1006632
Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
Ecotoxicity Fresh Water Ctue Repair B3 : 0
Ecotoxicity Fresh Water Ctue Replacement B4 : 0
Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 116.4011472
Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -2535.417478
Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 8.60827E-06
Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 5.45316E-06
Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 1.01017E-06
Emission Of Fine Particles Incidence Of Diseases Installation A5 : 1.55634E-07
Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 1.98931E-06
Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -7.64504E-05
Exported Energy Mj By Energy Vector Total Life Cycle : 0.767310596
Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.055291909
Exported Energy Mj By Energy Vector Distribution A4 : 0
Exported Energy Mj By Energy Vector Installation A5 : 0.361704585
Exported Energy Mj By Energy Vector Maintenance B2 : 0
Exported Energy Mj By Energy Vector Repair B3 : 0
Exported Energy Mj By Energy Vector Replacement B4 : 0
Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0.350314102
Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.000650082
Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.000340054
Freshwater Eutrophication Kg P Eq Distribution A4 : 1.04111E-05
Freshwater Eutrophication Kg P Eq Installation A5 : 0.000202857
Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
Freshwater Eutrophication Kg P Eq Repair B3 : 0
Freshwater Eutrophication Kg P Eq Replacement B4 : 0
Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 9.67594E-05
Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00034169
Hazardous Waste Disposed Of Kg Total Life Cycle : 7.799069676
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 7.504076973
Hazardous Waste Disposed Of Kg Distribution A4 : 0.073664058
Hazardous Waste Disposed Of Kg Installation A5 : 0.220747999
Hazardous Waste Disposed Of Kg Maintenance B2 : 0
Hazardous Waste Disposed Of Kg Repair B3 : 0
Hazardous Waste Disposed Of Kg Replacement B4 : 0
Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.000580646
Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -3419.172107
Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 6.31319E-06
Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 5.30127E-06
Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 1.30954E-09
Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 1.00071E-06
Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 9.90087E-09
Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.000502985
Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 6.19091E-06
Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 3.71767E-06
Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 2.0651E-07
Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 3.66781E-08
Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 2.23005E-06
Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -8.21056E-06
Impacts Related To Land Use Soil Quality Total Life Cycle : 0.406642592
Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.355866359
Impacts Related To Land Use Soil Quality Distribution A4 : 0
Impacts Related To Land Use Soil Quality Installation A5 : 0.024205243
Impacts Related To Land Use Soil Quality Maintenance B2 : 0
Impacts Related To Land Use Soil Quality Repair B3 : 0
Impacts Related To Land Use Soil Quality Replacement B4 : 0
Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.02657099
Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -0.084763833
Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 5.645613874
Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 4.07192638
Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.197127276
Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 1.352861111
Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.023699106
Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -28.25556723
Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.467371538
Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.209815637
Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.166950747
Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.011270672
Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.079334482
Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.093126195
Materials For Energy Recovery Kg Total Life Cycle : 0
Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
Materials For Energy Recovery Kg Distribution A4 : 0
Materials For Energy Recovery Kg Installation A5 : 0
Materials For Energy Recovery Kg Maintenance B2 : 0
Materials For Energy Recovery Kg Repair B3 : 0
Materials For Energy Recovery Kg Replacement B4 : 0
Materials For Energy Recovery Kg Operational Energy Use B6 : 0
Materials For Energy Recovery Kg End Of Life C1 C4 : 0
Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
Materials For Recycling Kg Total Life Cycle : 40.73520617
Materials For Recycling Kg Manufacturing A1 A3 : 5.317483176
Materials For Recycling Kg Distribution A4 : 0
Materials For Recycling Kg Installation A5 : 0
Materials For Recycling Kg Maintenance B2 : 0
Materials For Recycling Kg Repair B3 : 0
Materials For Recycling Kg Replacement B4 : 0
Materials For Recycling Kg Operational Energy Use B6 : 0
Materials For Recycling Kg End Of Life C1 C4 : 35.417723
Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
Net Use Of Fresh Water M3 Total Life Cycle : 2.797704055
Net Use Of Fresh Water M3 Manufacturing A1 A3 : 1.782714976
Net Use Of Fresh Water M3 Distribution A4 : 0.105025976
Net Use Of Fresh Water M3 Installation A5 : 0.015917957
Net Use Of Fresh Water M3 Maintenance B2 : 0
Net Use Of Fresh Water M3 Repair B3 : 0
Net Use Of Fresh Water M3 Replacement B4 : 0
Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.894045146
Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -1.378323519
Non Hazardous Waste Disposed Of Kg Total Life Cycle : 25.15742086
Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 19.9488373
Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.090495219
Non Hazardous Waste Disposed Of Kg Installation A5 : 3.788734871
Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
Non Hazardous Waste Disposed Of Kg Repair B3 : 0
Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.32935347
Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -117.189355
Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 7.94568E-05
Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 8.65744E-07
Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 7.84612E-05
Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 1.14699E-07
Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 1.51089E-08
Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -2.06257E-05
Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 1.604069313
Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.688932781
Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.603708495
Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.017972065
Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.293455972
Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.352897156
Radioactive Waste Disposed Of Kg Total Life Cycle : 0.030439195
Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.012059683
Radioactive Waste Disposed Of Kg Distribution A4 : 0.017677339
Radioactive Waste Disposed Of Kg Installation A5 : 0.000468272
Radioactive Waste Disposed Of Kg Maintenance B2 : 0
Radioactive Waste Disposed Of Kg Repair B3 : 0
Radioactive Waste Disposed Of Kg Replacement B4 : 0
Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.000233901
Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.052917216
Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 4.986620269
Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 2.232291985
Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 1.810918597
Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.07840264
Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.865007047
Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -1.040753586
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 6.084544332
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.084544332
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 18166.67859
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 9452.13589
Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 1106.301669
Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 99.22313747
Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 7509.017894
Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -3390.693669
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 191.0576172
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 179.3708453
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.007232765
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 11.50453479
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.175004367
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -119.3980599
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 6.084544332
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.084544332
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 17969.53643
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 9266.680501
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 1106.294436
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 87.71860267
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 7508.84289
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -3271.29561
Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 171.3111893
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 171.3111893
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -122.3849498
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 19.74642789
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 8.05965596
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.007232765
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 11.50453479
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.175004367
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 2.986889912
Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
Use Of Renewable Secondary Fuels Mj Repair B3 : 0
Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
Use Of Secondary Materials Kg Total Life Cycle : 0
Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
Use Of Secondary Materials Kg Distribution A4 : 0
Use Of Secondary Materials Kg Installation A5 : 0
Use Of Secondary Materials Kg Maintenance B2 : 0
Use Of Secondary Materials Kg Repair B3 : 0
Use Of Secondary Materials Kg Replacement B4 : 0
Use Of Secondary Materials Kg Operational Energy Use B6 : 0
Use Of Secondary Materials Kg End Of Life C1 C4 : 0
Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
Water Use M3 Eq Total Life Cycle : 120.1592257
Water Use M3 Eq Manufacturing A1 A3 : 76.56564556
Water Use M3 Eq Distribution A4 : 4.510865667
Water Use M3 Eq Installation A5 : 0.683475415
Water Use M3 Eq Maintenance B2 : 0
Water Use M3 Eq Repair B3 : 0
Water Use M3 Eq Replacement B4 : 0
Water Use M3 Eq Operational Energy Use B6 : 0
Water Use M3 Eq End Of Life C1 C4 : 38.39923901
Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -59.19239218
Air Pollution M3 Total Life Cycle : 0
Air Pollution M3 Manufacturing A1 A3 : 0
Air Pollution M3 Distribution A4 : 0
Air Pollution M3 Installation A5 : 0
Air Pollution M3 Maintenance B2 : 0
Air Pollution M3 Repair B3 : 0
Air Pollution M3 Replacement B4 : 0
Air Pollution M3 Operational Energy Use B6 : 0
Air Pollution M3 End Of Life C1 C4 : 0
Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
Water Pollution M3 Total Life Cycle : 0
Water Pollution M3 Manufacturing A1 A3 : 0
Water Pollution M3 Distribution A4 : 0
Water Pollution M3 Installation A5 : 0
Water Pollution M3 Maintenance B2 : 0
Water Pollution M3 Repair B3 : 0
Water Pollution M3 Replacement B4 : 0
Water Pollution M3 Operational Energy Use B6 : 0
Water Pollution M3 End Of Life C1 C4 : 0
Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
Warranty In Months : 18

General Attributes

Product Or Component Type : compact enclosure

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=44783281&lang=en-us
Take Back : No
Reach Free SHVC : Yes
Recycled Metal Content At Cr Level : 0%
China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
Toxic Heavy Metal Free : Yes
Mercury Free : Yes
Carbon Footprint : 423.9355922
Environmental Disclosure : ENVPEP100104EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : No
Packaging Without Single Use Plastic : No
Reach Free Of SVHC : Yes
Reach Regulation : Free of Substances of Very High Concern above the threshold
Pep Code : ENVPEP100104EN
Pep Verification Date : 8/1/2024
PCR Version : PCR-4-ed4-EN-2021 09 06
PSR Version : PSR-0005-ed3.1-EN-2023 12 08
Type Of Verification For The Pep : Independent external review

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months

Specifications

Country of Origin : France

Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x1000x300mm, IP66, IK10

S3DC H1000xW1000xD300 plain do

characters left.
