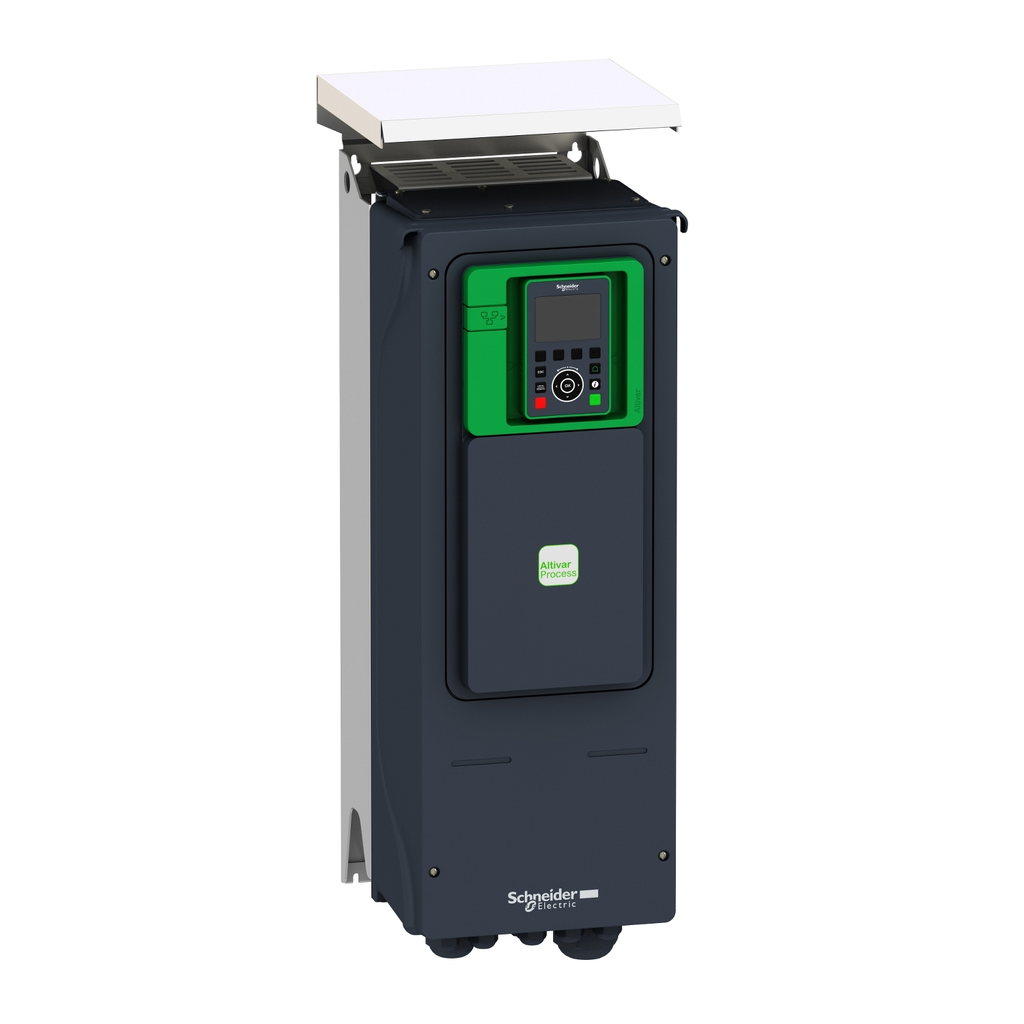

variable speed drive, Altivar Process ATV900, ATV950, 18.5kW, 25hp, 380 to 480V, IP55, UL type 12

Name: variable speed drive, Altivar Process ATV900, ATV950, 18.5kW, 25hp, 380 to 480V, IP55, UL type 12
Brand: SCHNEIDER ELECTRIC
SKU: SQDATV950D18N4U
Price: 5049.46 USD
Availability: OutOfStock

ATV950 No Switch UL Type12 25H

SQDATV950D18N4U ATV950D18N4U 3606481284303

5049.46 / EA

http://schema.org/OutOfStock

Mayer-DDS-variable speed drive, Altivar Process ATV900, ATV950, 18.5kW, 25hp, 380 to 480V, IP55, UL type 12-1

Country of Origin: China
IsSustainable: Yes

QTY

Features
Specifications

Environmental Class During Storage

class 1C3 according to EN 60721-3-1
class 1S2 according to EN 60721-3-1

US Rated Supply Voltage

380...480 V - 15...10 %

Exchange Mode

half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP

Type Of Polarization

no impedance Modbus serial

Analogue Input Type

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits
AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits

Continuous Output Current

39.2 A 4 kHz normal duty
31.7 A 4 kHz heavy duty

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Analogue Output Type

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits
software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

Carbon Footprint Of The Installation Phase A5

7 kg CO2 eq.
7.4109270998

Carbon Footprint Of The End Of Life Phase C1 To C4

5.6326465927
6 kg CO2 eq.

Encoder Protocol

1 Vpp
EnDat 2.2
resolver
RS 422
SSI 24V
SSI 5V
TTL/HTL

Discrete Input Type

DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm
DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm

Carbon Footprint Of The Manufacturing Phase A1 To A3

223 kg CO2 eq.
222.6584786054

Method Of Access

slave Modbus TCP

Line Current

33.4 A 380 V normal duty)
27.7 A 380 V heavy duty)
28.9 A 480 V normal duty)
24.4 A 480 V heavy duty)

Motor Slip Compensation

automatic whatever the load
can be suppressed
not available in permanent magnet motor law
adjustable

Variant

standard version
with braking chopper

Maximum Switching Current

relay output R1 resistive, cos phi = 1 3 A 250 V AC
relay output R1 resistive, cos phi = 1 3 A 30 V DC
relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC
relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC
relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC

Relay Output Type

configurable relay logic R1 fault relay NO/NC 100000 cycles
configurable relay logic R2 sequence relay NO 1000000 cycles
configurable relay logic R3 sequence relay NO 1000000 cycles

Input Compatibility

DI1...DI8 discrete input level 1 PLC IEC 61131-2
DI7, DI8 pulse input level 1 PLC IEC 65A-68
STOA, STOB discrete input level 1 PLC IEC 61131-2

Protection Type

thermal protection motor
safe torque off motor
motor phase break motor
thermal protection drive
safe torque off drive
overheating drive
overcurrent between output phases and earth drive
overload of output voltage drive
short-circuit protection drive
motor phase break drive
overvoltages on the DC bus drive
line supply overvoltage drive
line supply undervoltage drive
line supply phase loss drive
overspeed drive
break on the control circuit drive

Sampling Duration

2 ms +/- 0.5 ms DI1...DI8) - discrete input
5 ms +/- 1 ms DI7, DI8) - pulse input
1 ms +/- 1 ms AI1, AI2, AI3) - analog input
5 ms +/- 1 ms AQ1, AQ2) - analog output

Linearity Error

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
AQ1, AQ2 +/- 0.2 % analog output

Environmental Class During Operation

class 3C3 according to IEC 60721-3-3
class 3S3 according to IEC 60721-3-3

Persona Type Names

End User
Original Equipment Manufacturer
OEM - Control Panelbuilder
System Integrator

Motor Power KW

18.5 kW normal duty
15.0 kW heavy duty

Refresh Time

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Carbon Footprint Of The Use Phase B2 B3 B4 B6

18 111 kg CO2 eq.
18111.4681307913

Electromagnetic Compatibility

electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6

Apparent Power

24 kVA 480 V normal duty)
20.3 kVA 480 V heavy duty)

Persona Type Ids

Environmental Class During Transport

class 2C3 according to EN 60721-3-2
class 2S1 according to EN 60721-3-2

Number Of Addresses

1-247 Modbus serial

Maximum THDI

<48 % from 80...100 % of load IEC 61000-3-12

Carbon Footprint Of The Distribution Phase A4

4.109318542
4 kg CO2 eq.

Synchronous Motor Control Profile

permanent magnet motor
synchronous reluctance motor

Minimum Switching Current

relay output R1, R2, R3 5 mA 24 V DC

Operating Altitude

<= 3280.84 ft (1000 m) without derating
1000...4800 m with current derating 1 % per 100 m

Noise Level

53.7 dB 86/188/EEC

Asynchronous Motor Control Profile

optimized torque mode
variable torque standard
constant torque standard

Discrete Output Type

logic output DQ+ 0-1 kHz <= 30 V DC 100 mA
programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA
logic output DQ- 0-1 kHz <= 30 V DC 100 mA

Maximum Transient Current

47 A 60 s normal duty)
47.6 A 60 s heavy duty)

Transmission Rate

10/100 Mbit/s Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial

Ambient Air Temperature For Operation

-15-40 °C (without derating)
40-50 °C (with derating factor)

UE Rated Operational Voltage

380...480 V 18.5 kW normal duty
380...480 V 15.0 kW heavy duty

Data Format

8 bits, configurable odd, even or no parity Modbus serial

Switching Frequency

2...16 kHz adjustable
4...16 kHz with derating factor

Assets

CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001068_3D-CAD

Complementary Attributes

Brake Chopper Integrated : true
Maximum Associated Fuse Rating : 63.0 A
Maximum Input Current Per Phase : 33.4 A
Maximum Output Voltage : 480.0 V
Maximum Acceleration Under Shock Impact During Operation : 150 m/s² at 11 ms
Maximum Acceleration Under Shock Load During Storage : 150 m/s² at 11 ms
Maximum Acceleration Under Shock Load During Transport : 150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation : 10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load During Storage : 10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load During Transport : 10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load During Storage : 1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load During Transport : 1.5 mm at 2...13 Hz

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 2025-07-09
Device Type : Variable speed drive - VSD Compacts
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 10 year(s)
Manufacturing Carbon Footprint : 222.6584786054
Distribution Carbon Footprint : 4.109318542
Installation Carbon Footprint : 7.4109270998
Use Carbon Footprint : 18111.4681307913
End Of Life Carbon Footprint : 5.6326465927
Legacy WEEE Scope : In
WEEE Product Category : 4
Scope Perimeter : At least in Europe
EOLI Availability Display : Yes
End Of Life Doc Ref : ENVEOLI1406001EN
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant with Exemptions
ROHS EUR Conformity Date : 1921
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 5
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : Y
WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier Id : 2
Tier : 2
Function Option Id : ADVANCED
Function Option : Advanced
Market Segmentation Id : INDUSTRIAL
Market Segmentation : Industrial
1 Phase Low Current Possible : false
4 Quadrant Operation Possible : true
Application In Domestic And Commercial Area Permitted : false
Assembly Style : enclosed
Base Load Current At High Overload : 31.7 A
Base Load Current At Low Overload : 39.2 A
Braking To Standstill : by DC injection
Computer Port : true
Design Of Frequency Changer : U converter
Housing Material : plastic
Isolation : between power and control terminals
Maximum Associated Fuse Rating : 63.0 A
Maximum Input Current Per Phase : 33.4 A
Nominal Switching Frequency : 4 kHz
Number Of Hw Interfaces Industrial Ethernet : 2
Number Of Hw Interfaces Other : 0
Number Of Hw Interfaces Parallel : 0
Number Of Hw Interfaces Profinet : 0
Number Of Hw Interfaces Serial Rs232 : 0
Number Of Hw Interfaces Serial Rs422 : 0
Number Of Hw Interfaces Serial Rs485 : 1
Number Of Hw Interfaces Serial Tty : 0
Number Of Hw Interfaces Usb : 0
Number Of Output Phases : 3
Operating Element Present : true
Optical Interface Present : false
Package Weight Lbs : 25 kg
Phase : 3 phase
Power Loss Per Device Current Dependent : 616.0 W
Power Loss Static Current Independent : 23.0 W
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : variable speed drive
Product Specific Application : process for industrial
Range Of Product : Altivar Process ATV900
Relative Symmetric Mains Voltage Tolerance : 10 %
Relative Symmetric Network Frequency Tolerance : 5 %
Returnability : Yes
Supporting Protocol For As Interface Safety At Work : false
Supporting Protocol For Asi : false
Supporting Protocol For Bacnet : false
Supporting Protocol For Can : true
Supporting Protocol For Data Highway : false
Supporting Protocol For Devicenet : false
Supporting Protocol For Devicenet Safety : false
Supporting Protocol For Ethernet Ip : true
Supporting Protocol For Foundation Fieldbus : false
Supporting Protocol For Interbus : false
Supporting Protocol For Knx : false
Supporting Protocol For Lon : false
Supporting Protocol For Modbus : true
Supporting Protocol For Other Bus Systems : false
Supporting Protocol For Profibus : true
Supporting Protocol For Profinet Cba : true
Supporting Protocol For Profinet Io : true
Supporting Protocol For Profisafe : false
Supporting Protocol For Safetybus P : false
Supporting Protocol For Sercos : false
Supporting Protocol For Suconet : false
Supporting Protocol For TCP IP : true
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 18 351 kg CO2 eq.
Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
With Safety Function Safe Programmable Logic : false
EMC Limit Value Complied : true
Number Of Inputs Bidirectional Not Potential Free : 0
Number Of Inputs Potential Free : 0
Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
With Safety Function Safe Brake Management Sbc Sbt : true
With Safety Function Safe Direction SDI : false
With Safety Function Safe Operating Stop Sos : false
With Safety Function Safe Position Sp : false
With Safety Function Safe Speed Monitor Ssm : false
With Safety Function Safe Stop 1 SS1 : true
With Safety Function Safe Torque Off Sto : true
With Safety Function Safely Limited Position Slp : false
With Safety Function Safely Limited Speed Sls : true
With Sft Fct Safe Stop 2 Ss2 : false
Carbon Footprint Kg Co2 Eq Total Life Cycle : 18351.2795016313
Relationship Type : cross-selling relationship
Application In Industrial Area Permitted : true
Supporting Protocol For Interbus Safety : false
Pep Code : ENVPEP1406001EN
Pep Verification Date : 2021-11-01
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent external review
Product Weight In G : 31850
Functional Unit Description : To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine s operating point for 22 kW electric motors for fluid management and industrial applications in IP55/UL type 1 conditions, at 380V to 480V rated 3-phase voltage supply, with disconnect switch. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
Functional Unit Quantity : 1
Functional Unit Unit : Unit
Reference Lifetime In Y : 10
Energy Consumption On Product Lifetime In Kwh : 30675.943
Nbr Of Units In Pkg : 1
Warranty In Months : 18
Energy Model Manufacturing A1 A3 : Energy model used: China
Energy Model Installation A5 : Electricity Mix; AC; < 1kV; EU-27
Energy Model Use B6 : Electricity Mix; AC; < 1kV; EU-27
Energy Model End Of Life C1 C4 : Electricity Mix; AC; < 1kV; EU-27
Components For Re Use Kg Total Life Cycle : 0
Components For Re Use Kg Manufacturing A1 A3 : 0
Components For Re Use Kg Distribution A4 : 0
Components For Re Use Kg Installation A5 : 0
Components For Re Use Kg Operational Energy Use B6 : 0
Components For Re Use Kg End Of Life C1 C4 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0380257509
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0372003962
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000001644
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000502
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0008250572
Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000829
Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 189320.9092869062
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 2656.3470681458
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 57.7325673534
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 9.5603565769
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 186566.5575674133
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 30.7117274168
Exported Energy Mj By Energy Vector Total Life Cycle : 4.6182345483
Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.3970459588
Exported Energy Mj By Energy Vector Distribution A4 : 0
Exported Energy Mj By Energy Vector Installation A5 : 4.2211885895
Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
Hazardous Waste Disposed Of Kg Total Life Cycle : 760.2401142393
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 729.8851030111
Hazardous Waste Disposed Of Kg Distribution A4 : 0
Hazardous Waste Disposed Of Kg Installation A5 : 0.0027925277
Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 30.3522187005
Materials For Energy Recovery Kg Total Life Cycle : 0.8854730933
Materials For Energy Recovery Kg Manufacturing A1 A3 : 0.0000000346
Materials For Energy Recovery Kg Distribution A4 : 0
Materials For Energy Recovery Kg Installation A5 : 0
Materials For Energy Recovery Kg Operational Energy Use B6 : 0
Materials For Energy Recovery Kg End Of Life C1 C4 : 0.8854730586
Materials For Recycling Kg Total Life Cycle : 25.2313312203
Materials For Recycling Kg Manufacturing A1 A3 : 2.2675832013
Materials For Recycling Kg Distribution A4 : 0
Materials For Recycling Kg Installation A5 : 4.8451267829
Materials For Recycling Kg Operational Energy Use B6 : 0
Materials For Recycling Kg End Of Life C1 C4 : 18.1186212361
Net Use Of Fresh Water M3 Total Life Cycle : 67.6944874945
Net Use Of Fresh Water M3 Manufacturing A1 A3 : 20.4477020602
Net Use Of Fresh Water M3 Distribution A4 : 0.0003677702
Net Use Of Fresh Water M3 Installation A5 : 0.0019809033
Net Use Of Fresh Water M3 Operational Energy Use B6 : 47.2400641458
Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0043726149
Non Hazardous Waste Disposed Of Kg Total Life Cycle : 67855.3608335964
Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 101.9583201268
Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.1460079239
Non Hazardous Waste Disposed Of Kg Installation A5 : 5.9387955626
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 67747.2030380338
Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.1146719493
Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0044213655
Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000213192
Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000083
Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000165
Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0043997529
Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000002686
Radioactive Waste Disposed Of Kg Total Life Cycle : 55.2999217733
Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0747572108
Radioactive Waste Disposed Of Kg Distribution A4 : 0.0001039897
Radioactive Waste Disposed Of Kg Installation A5 : 0.0002060325
Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 55.2246474778
Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0002070626
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 345275.2158027758
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4499.8335974643
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 58.0261489699
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 10.1374247227
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 340668.3257631561
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 38.8928684628
Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 371801.6324065033
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 4762.3058637084
Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 58.10340729
Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 10.3145007924
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 366931.9755919232
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 38.9330427892
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 26517.4611856642
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 262.3898573693
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.077433439
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.1769318542
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 26254.7769740952
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0399889065
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 293.8082408875
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 293.8082408875
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 344981.428164107
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4206.0459587956
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 58.0261489699
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 10.1374247227
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 340668.3257631561
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 38.8928684628
Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 191.5491283677
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 191.5491283677
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 26325.9161777403
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 70.8448494453
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.077433439
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.1769318542
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 26254.7769740952
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0399889065
Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Secondary Materials Kg Total Life Cycle : 4.4984944532
Use Of Secondary Materials Kg Manufacturing A1 A3 : 4.4984944532
Use Of Secondary Materials Kg Distribution A4 : 0
Use Of Secondary Materials Kg Installation A5 : 0
Use Of Secondary Materials Kg Operational Energy Use B6 : 0
Use Of Secondary Materials Kg End Of Life C1 C4 : 0
Air Pollution M3 Total Life Cycle : 807477.2537830927
Air Pollution M3 Manufacturing A1 A3 : 30100.8716323296
Air Pollution M3 Distribution A4 : 174.8098256735
Air Pollution M3 Installation A5 : 181.6703645008
Air Pollution M3 Operational Energy Use B6 : 776749.4154312703
Air Pollution M3 End Of Life C1 C4 : 270.4865293185
Water Pollution M3 Total Life Cycle : 787344.6165245571
Water Pollution M3 Manufacturing A1 A3 : 25562.2028526149
Water Pollution M3 Distribution A4 : 675.7733755943
Water Pollution M3 Installation A5 : 106.2559429477
Water Pollution M3 Operational Energy Use B6 : 759969.8613740024
Water Pollution M3 End Of Life C1 C4 : 1030.5229793978
Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 138.2705297614
Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 6.5629673842
Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 5.5456302594
Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 1.2720839937
Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0187624406
Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0045529873
Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 136.9672999516
Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0078303883
Global Warming Kg Equivalent Co2 Total Life Cycle : 18351.2795016313
Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 222.6584786054
Global Warming Kg Equivalent Co2 Distribution A4 : 4.109318542
Global Warming Kg Equivalent Co2 Installation A5 : 7.4109270998
Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 18111.4681307913
Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 5.6326465927
Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.085577496
Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0013389382
Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0017226545
Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 6.4735361813
Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0007921141
Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.402526149
Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0043216244
Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0021794057
Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 5.134129475
Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0024736054

General Attributes

Phase : 3 phase
Product Or Component Type : variable speed drive
Range Of Product : Altivar Process ATV900

Output Attributes

Maximum Output Voltage : 480.0 V
Relay Output Number : 3

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=473954458&lang=en-us
Take Back : No
Recycled Metal Content At Cr Level : 0 %
China ROHS Regulation : X
Mercury Free : Yes
Carbon Footprint : 18351.2795016313
Ambient Air Transport Temperature : -40-70 °C
Circularity Profile : ENVEOLI1406001EN
Environmental Disclosure : ENVPEP1406001EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
Pep Code : ENVPEP1406001EN
Pep Verification Date : 2021-11-01
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent external review

Input Attributes

Number Of Input Phases : 3

Specifications

Country of Origin : China

variable speed drive, Altivar Process ATV900, ATV950, 18.5kW, 25hp, 380 to 480V, IP55, UL type 12

ATV950 No Switch UL Type12 25H

characters left.
