Unity M1E processor - RS232/485 - Ethernet - USB - I/O bus - global data

UNITY M1EGD WITH ETHERNET GLOB

SQD171CBU98091 171CBU98091 3595864171401
1846.66 / EA
http://schema.org/OutOfStock

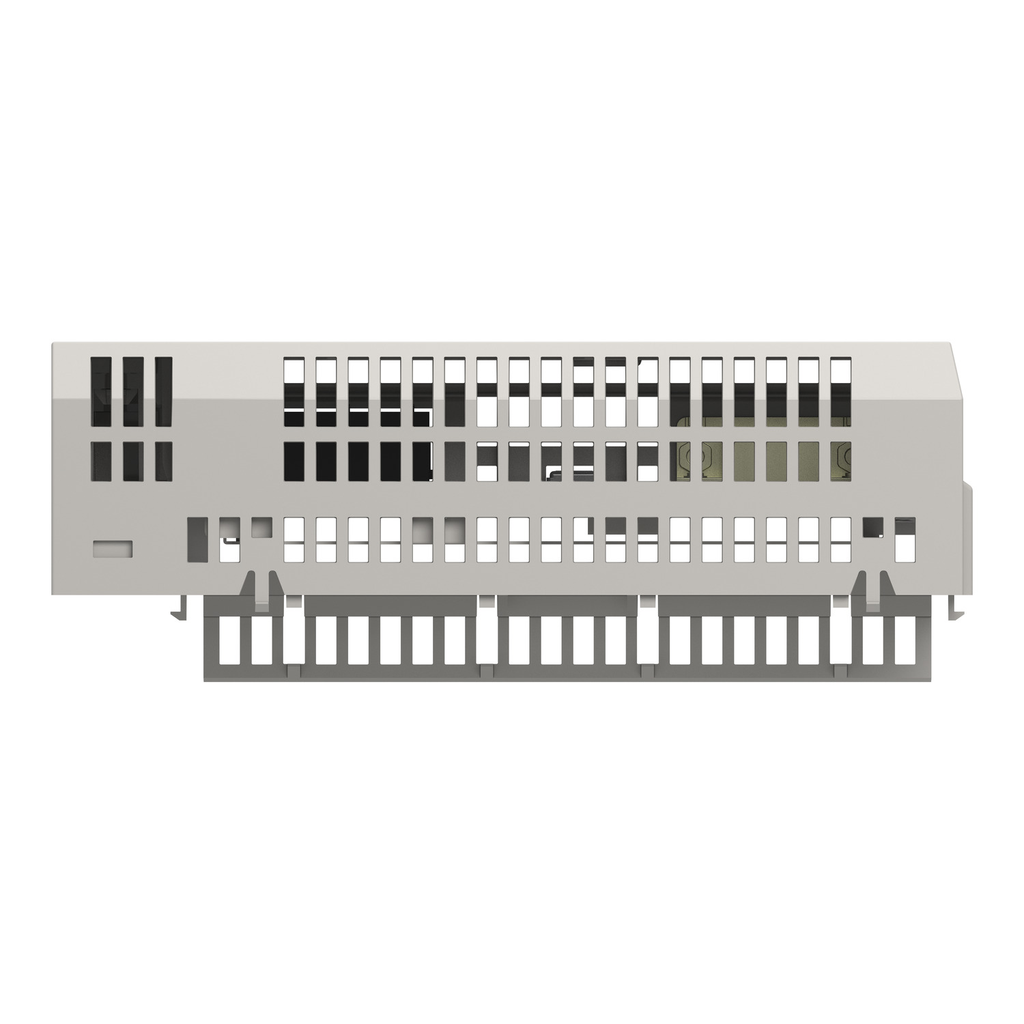

Mayer-DDS-Unity M1E processor - RS232/485 - Ethernet - USB - I/O bus - global data-2
  • Country of Origin: France
This processor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1E processor is equipped with Ethernet and USB integrated connection ports. The Spear 320s processor offers 125 words Modbus messaging and 200 I/O message per second. The processor is accessible through client/server and master/slave method. This processor provides web services like CPU status, ethernet statistics, bandwidth monitoring, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height). It weighs 0.163kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. It is compatible with Modicon STB I/O. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
QTY
  • Product Description
  • Features
  • Specifications
This processor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1E processor is equipped with Ethernet and USB integrated connection ports. The Spear 320s processor offers 125 words Modbus messaging and 200 I/O message per second. The processor is accessible through client/server and master/slave method. This processor provides web services like CPU status, ethernet statistics, bandwidth monitoring, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height). It weighs 0.163kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. It is compatible with Modicon STB I/O. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
  • Current Consumption
    • 500 mA 5 V DC
  • Topology
    • multidrop Modbus
    • star Modbus TCP
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communication Service
    • Modbus messaging 125 words, 200 I/O message per second
    • Global Data, 2200 I/O message per second
    • Modbus TCP I/O Scanner and Messaging
  • Number Of Devices
    • 32 Modbus
  • Addressing
    • 1...247 Modbus
    • unique IEEE global address Modbus TCP
  • Communication Port Protocol
    • Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire
    • Modbus TCP ETHERNET - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP
  • Persona Type Names
    • End User
    • OEM - Control Panelbuilder
    • System Integrator
  • Persona Type Ids
    • EU
    • OM8
    • SI
  • Dielectric Strength
    • 0 V not isolated RS485/RS232
    • 5000 V for 1 minute ETHERNET
  • Resistance To Electrostatic Discharge
    • 6 kV contact IEC 61131-2 zone B
    • 6 kV contact IACS E10
    • 8 kV on air IEC 61000-4-2
  • Concept
    • Transparent Ready class B
  • Resistance To Electromagnetic Fields
    • 15 V/m 80...2700 MHz IEC 61000-4-3
  • Shock Resistance
    • 15 gn 11 ms sinusoidal vibrations
  • Local Signalling
    • 1 LED (green) for processor running (RUN)
    • 1 LED (red) for processor or system fault (ERR)
    • 1 LED (red) for I/O module fault (I/O)
    • 1 LED (yellow) for channel 0 operating (CH0)
    • 1 LED (green) for data rate (ETH 100)
    • 1 LED (green) for data rate (ETH LINK)
    • 1 LED (green) for status of Ethernet network (ETH STS)
  • Memory Description
    • program memory IEC 3584 kB
    • program memory LL984 3584 kB
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=326636484&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-10-01
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2023
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 4
    • Tier : 4
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Fail State : safe I/O mode
    • I O Limit Processor Capacity : 2048 inputs/2048 outputs
    • Package Weight Lbs : 240.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : processor
    • Range Of Product : Modicon Momentum automation platform
    • Register Words : 26048
    • Returnability : Yes
    • Sustainable Packaging : No
    • Relationship Type : cross-selling relationship
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : processor
    • Range Of Product : Modicon Momentum automation platform
  • Specifications
    • Country of Origin : France
