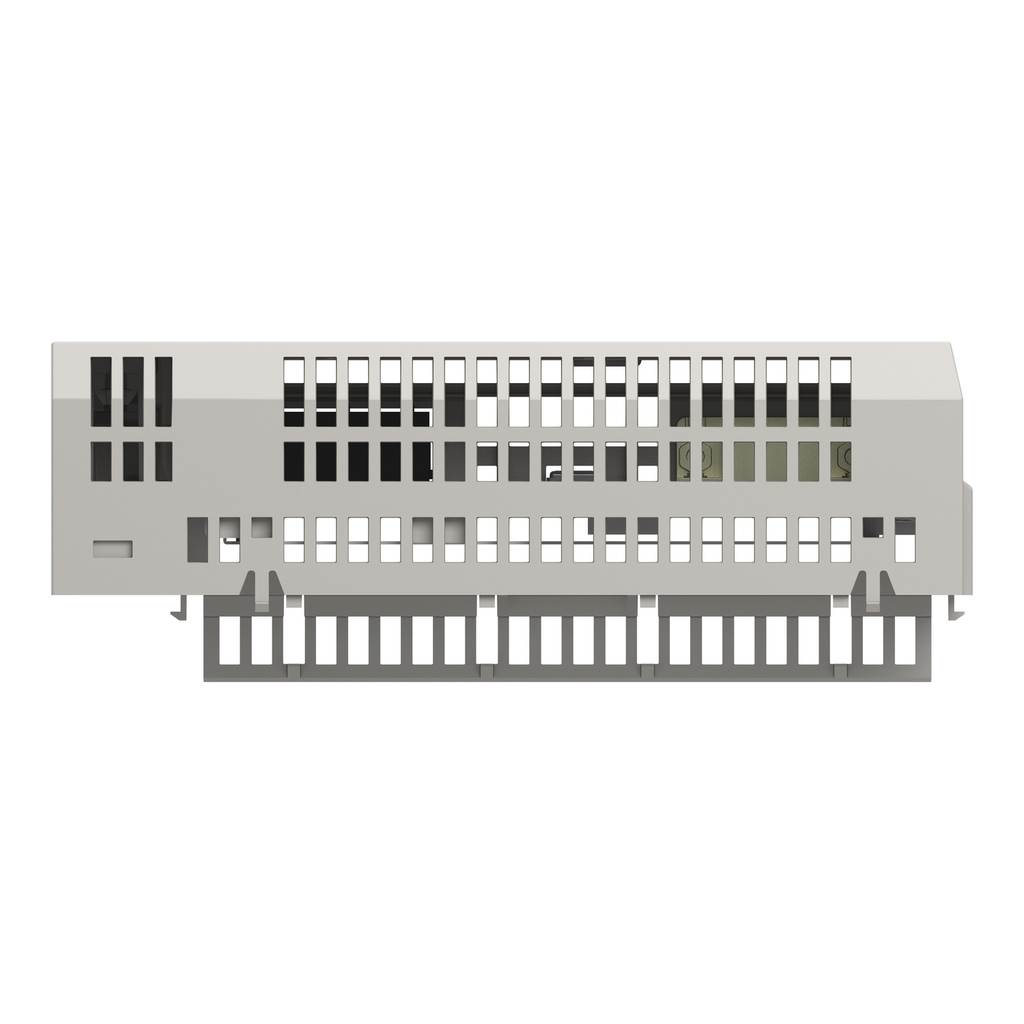

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This Unity M1E processor is equipped with Ethernet and USB integrated connection ports. The Spear 320s processor's communication services are Modbus messaging 125 words, 200 I/O message per second. The processor with Unity Pro software has web services like CPU status, Ethernet statistics, bandwidth monitoring, home pages and properties. It is an IP20 rated product. Its dimensions are 144mm (width) x 53.47mm (depth) x 60.6mm (height) and weighs 0.163kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM, C-Tick. It meets UL 508, CSA C22.2 No 142 and EN/IEC 61131-2 standards. This product is compatible with Modicon STB I/O. It supports 35mm symmetrical DIN rail mount. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Persona Type Ids : EU, OM8, SI
• Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
• Addressing : 1...247 Modbus, 1...247 Modbus, unique IEEE global address Modbus TCP, unique IEEE global address Modbus TCP
• Concept : Transparent Ready class B, Transparent Ready class B
• Current Consumption : 500 mA 5 V DC, 500 mA 5 V DC, 500 mA 5 V DC
• Dielectric Strength : 0 V not isolated RS485/RS232, 0 V not isolated RS485/RS232, 0 V not isolated RS485/RS232, 5000 V for 1 minute ETHERNET, 5000 V for 1 minute ETHERNET, 5000 V for 1 minute ETHERNET
• Local Signalling : 1 LED (green) for processor running (RUN), 1 LED (green) for processor running (RUN), 1 LED (green) for processor running (RUN), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for I/O module fault (I/O), 1 LED (red) for I/O module fault (I/O), 1 LED (red) for I/O module fault (I/O), 1 LED (yellow) for channel 0 operating (CH0), 1 LED (yellow) for channel 0 operating (CH0), 1 LED (yellow) for channel 0 operating (CH0), 1 LED (green) for data rate (ETH 100), 1 LED (green) for data rate (ETH 100), 1 LED (green) for data rate (ETH 100), 1 LED (green) for data rate (ETH LINK), 1 LED (green) for data rate (ETH LINK), 1 LED (green) for data rate (ETH LINK), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (green) for status of Ethernet network (ETH STS)
• Memory Description : program memory IEC 3584 kB, program memory IEC 3584 kB, program memory IEC 3584 kB, program memory LL984 3584 kB, program memory LL984 3584 kB, program memory LL984 3584 kB
• Number Of Devices : 32 Modbus, 32 Modbus
• Resistance To Electromagnetic Fields : 15 V/m 80...2700 MHz IEC 61000-4-3, 15 V/m 80...2700 MHz IEC 61000-4-3, 15 V/m 80...2700 MHz IEC 61000-4-3
• Resistance To Electrostatic Discharge : 6 kV contact IEC 61131-2 zone B, 6 kV contact IEC 61131-2 zone B, 6 kV contact IEC 61131-2 zone B, 6 kV contact IACS E10, 6 kV contact IACS E10, 6 kV contact IACS E10, 8 kV on air IEC 61000-4-2, 8 kV on air IEC 61000-4-2, 8 kV on air IEC 61000-4-2
• Shock Resistance : 15 gn 11 ms sinusoidal vibrations, 15 gn 11 ms sinusoidal vibrations, 15 gn 11 ms sinusoidal vibrations
• Topology : multidrop Modbus, multidrop Modbus, star Modbus TCP, star Modbus TCP
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-27
• HTML Description : UNITY M1E SERIAL 232/485
• Manufacturer : Schneider Electric
• Device Type : PLC System - PLC CPU
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Fail State : safe I/O mode
• I O Limit Processor Capacity : 2048 inputs/2048 outputs
• Package Weight Lbs : 237.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : processor
• Range Of Product : Modicon Momentum automation platform
• Returnability : Yes
• Sustainable Packaging : No
• Relationship Type : cross-selling relationship
• Product Kit Identifier : N
• General Attributes
• Product Or Component Type : processor
• Range Of Product : Modicon Momentum automation platform
• Communications & Management Attributes
• Communication Port Protocol : Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire, Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire, Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire, Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire, Modbus RS485/RS232 - 1 RJ45 19200 bps - 2-wire, Modbus TCP ETHERNET - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP, Modbus TCP ETHERNET - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP, Modbus TCP ETHERNET - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP, Modbus TCP ETHERNET - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP, Modbus TCP ETHERNET - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP, Modbus TCP ETHERNET - 1 RJ45 10/100 Mbps - twisted shielded pairs cable CAT 5E UTP
• Communication Service : Modbus messaging 125 words, 200 I/O message per second, Modbus messaging 125 words, 200 I/O message per second, Modbus messaging 125 words, 200 I/O message per second, Global Data, 1600 I/O message per second, Global Data, 1600 I/O message per second, Modbus TCP I/O Scanner and Messaging
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• IP Degree Of Protection : IP20
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
