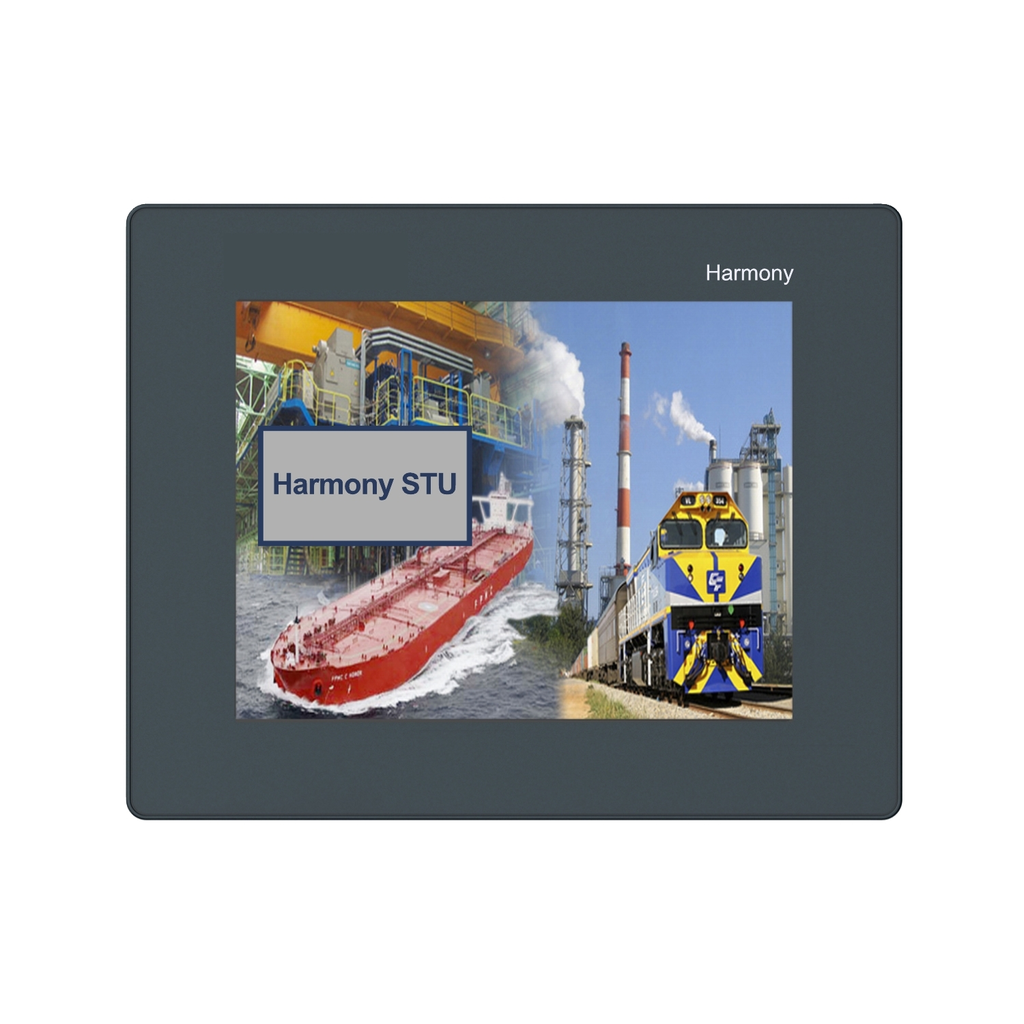

The touch panel screen features 5.7inch TFT color display, supports 320 x 240 pixels QVGA resolution. It is equipped with 1 USB 2.0 type mini B, 1 USB 2.0 type A, removable screw terminal block for power supply and COM1 serial link (female RJ45, RS232C/RS485 integrated). The screen supports Japanese (ANK, Kanji), Chinese (simplified Chinese), Taiwanese (traditional Chinese), Korean and ASCII character fonts. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It is an IP20/IP65 and NEMA 4X rated product. The enclosure is made of PC/PBT and PPA. Its dimensions are 163mm (width) x 56.5mm (depth) x 129.15mm (height). It is suitable for simple machines and infrastructure applications. This product is certified by CULus, C-Tick, UL class 1 Div2 T4A or T5 and Marine. It meets IEC 61000-6-2, UL 508, UL 1604, EN 61131-2 and FCC Class A standards. Harmony STO (fromerly known as Magelis STO) is powered by the EcoStruxure operator terminal expert and STU (fromerly known as Magelis STU) is powered by Vijeo Designer.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Features
• Flexible
• Revolutionary mounting with a push button system for STU
• Equipped to communicate with SE and third party products
• High definition color screen TFT QVGA
• Tool-free mounting

• Physical Attributes
• Display Size : 5.7 inch
• Complementary Attributes
• Integrated Connection Type : 1 USB 2.0 type mini B, 1 USB 2.0 type ACOM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s)power supply - removable screw terminal block1 Ethernet - RJ45
• Us Rated Supply Voltage : 24 V DC
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8, PB, SC
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Character Font : ASCII, Japanese (ANK, Kanji), Chinese (simplified Chinese), Taiwanese (traditional Chinese), Korean
• Downloadable Protocols : third party protocols, Uni-TE, Modbus, Modbus TCP/IP
• Marking : CE, without Schneider logo
• Vibration Resistance : +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-61 gn 9-150 Hz) IEC 60068-2-6
• Certificate Agency : cULus, C-tick, UL class 1 Div2 T4A ou T5, Marine, UKCA
• Carbon Footprint Of The Distribution Phase A4 : 0.0858, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.19996, 0.2 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0056052
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 94 kg CO2 eq., 93.873
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 707 kg CO2 eq., 707.41
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Device Type : HMI - Graphical display unit
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 7 year(s)
• Manufacturing Carbon Footprint : 93.873
• Distribution Carbon Footprint : 0.0858
• Use Carbon Footprint : 707.41
• Weee Applicability : Finished product
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2101003EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1920
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 4
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Brightness : 16 levels
• Display Resolution : 320 x 240 pixels QVGA
• Display Type : QVGA TFT colour touchscreen
• Enclosure Material : PC/PBT and PAA
• Fixing Mode : Ø 22 mm hole
• Immunity To Microbreaks : 7 ms
• Inrush Current : 30 A
• Memory Description : application memory 16 MBback up of data 64 kB
• Number Of Pages : limited by internal memory capacity
• Operating System : Harmony
• Power Consumption In W : 6.8 W
• Processor Frequency : 333 MHz
• Processor Name : CPU ARM9
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : touch panel screen
• Range Of Product : Harmony STO & STU
• Realtime Clock : access to the PLC real-time clock
• Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
• Returnability : Yes
• Shock Resistance : 15 gn 11 msIEC 60068-2-27
• Software Designation : Vijeo Designer
• Software Version : EIME v5.8.1
• Supply : external source
• Supply Voltage Limits : 20.4-28.8 V
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 802 kg CO2 eq.
• Touch Panel : analogue
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Display Color : 65536 colours
• Database Version : 2016-11
• Data Source : extrapolated product
• Height Nominal : 129.15 mm
• Width Nominal : 163 mm
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8537109170
• F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Free Status : Product contains halogen above thresholds
• Silicone Free : No
• Warranty In Months : 18
• Functional Unit Description : To provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.5W.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 919.8
• Environment Attributes Main
• Ambient Air Temperature For Storage : -20-60 °C, -20-60 °C
• Operating Altitude : <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
• Take Back : No
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 801.5743652
• Ambient Air Temperature For Operation : 0-50 °C
• Circularity Profile : ENVEOLI2101003EN
• Environmental Disclosure : ENVPEP2101003EN
• Eu Rohs Directive : Compliant By Exemption
• Halogen Content Performance : Product contains halogen above thresholds
• Ip Degree Of Protection : IP20 IEC 60529 rear panel)IP65 IEC 60529 front panel)
• Nema Degree Of Protection : NEMA 4X front panel indoor use)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-85 % without condensation
• Pep Code : ENVPEP2101003EN
• Pep Verification Date : 2021-01-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• General Attributes
• Product Or Component Type : touch panel screen
• Range Of Product : Harmony STO & STU
• ETIM
• ETIM 8 : EC001412
• ETIM 9 : EC001412
• ETIM 10 : EC001412
• Specifications
• Country of Origin : China, Indonesia, Singapore
• Weight : 665 g
• Depth : 56.5 mm
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLEUser replaceable
