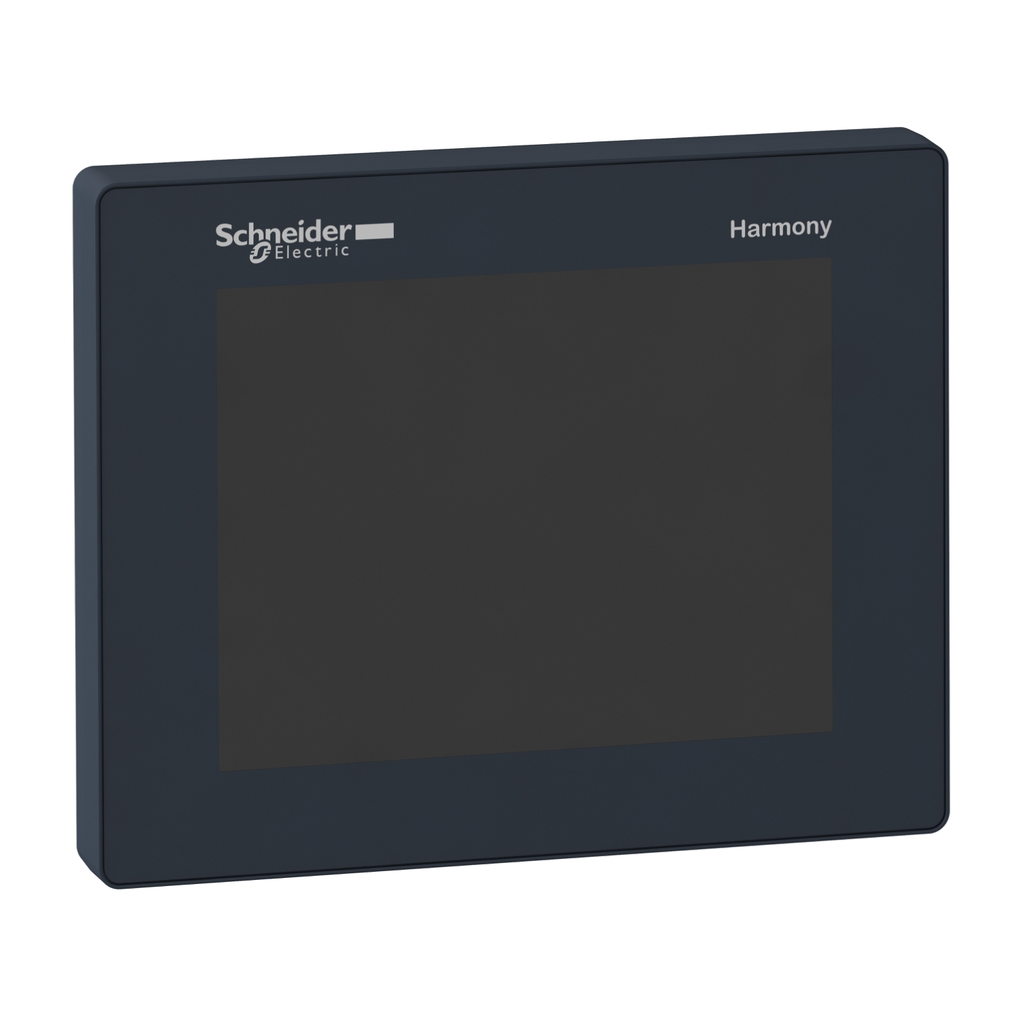

colour touch panel screen, Harmony STO & STU, 5.7inch wide

TOUCH PANEL SCREEN 57 COLOR

SQDHMISTU855 HMISTU855 3606489909499
1445.45 / EA
http://schema.org/OutOfStock
Mayer-DDS-colour touch panel screen, Harmony STO & STU, 5.7inch wide-1
  • Depth: 56.5 mm
  • Display Type: QVGA TFT Colour Touchscreen
  • Enclosure Material: PAA, PBT, Polycarbonate
  • Operating System: Harmony
  • Warranty Length: 18 mth
This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
QTY
  • Product Description
  • Features
  • Specifications
This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
  • Features
    • Touchscreen for displaying synoptic views
    • High definition color TFT QVGA screen
    • High performance communication
    • Simplified installation
    • IP20, IP65 and NEMA 4X degree of protection
    • Wide range of operating temperature from 32°F to 122°F
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Display Color : 65536 colours
    • Display Size : 5.7 inch
  • Conformance Attributes
    • Product Certifications : UL class 1 Div2 T4A ou T5, C-tick, cULus, Marine, UKCA
    • Standards : UL 1604, FCC Class A, IEC 61000-6-2, IEC 61131-2, UL 508
  • Complementary Attributes
    • Integrated Connection Type : 1 USB 2.0 type mini B, 1 USB 2.0 type A, COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s), power supply - removable screw terminal block, 1 Ethernet - RJ45
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8, PB, SC
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Marking : with Schneider logo, CE
    • Vibration Resistance : +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, 1 gn 9-150 Hz) IEC 60068-2-6
    • Carbon Footprint Of The Distribution Phase A4 : 0.0858, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.19996, 0.2 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0056052
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 94 kg CO2 eq., 93.873
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 707 kg CO2 eq., 707.41
    • Character Font : Taiwanese (traditional Chinese), Japanese (ANK, Kanji), Chinese (simplified Chinese), ASCII, Korean
    • Downloadable Protocols : Uni-TE, Modbus TCP/IP, third party protocols, Modbus
    • Memory Description : application memory 16 MB, back up of data 64 kB
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : HMI - Graphical display unit
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 7 year(s)
    • WEEE Applicability : Finished product
    • WEEE Scope : In
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2101003EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Display Color : 65536 colours
    • Display Resolution : 320 x 240 pixels QVGA
    • Display Type : QVGA TFT colour touchscreen
    • Enclosure Material : PC/PBT and PAA
    • F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
    • Fixing Mode : Ø 22 mm hole
    • Halogen Free Status : Product contains halogen above thresholds
    • Immunity To Microbreaks : 7 ms
    • Inrush Current : 30 A
    • Operating System : Harmony
    • Package Weight Lbs : 865.000 g
    • Power Consumption In W : 6.8 W
    • Processor Name : CPU ARM9
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : touch panel screen
    • Range Of Product : Harmony STO & STU
    • Realtime Clock : access to the PLC real-time clock
    • Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
    • Returnability : Yes
    • Shock Resistance : 15 gn 11 msIEC 60068-2-27
    • Software Designation : Vijeo Designer
    • Supply : external source
    • Supply Voltage Limits : 20.4-28.8 V
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 802 kg CO2 eq.
    • Touch Panel : analogue
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Us Rated Supply Voltage2 : 24 V DC
    • Medium Desc : colour touch panel screen, Harmony STO & STU, 5.7inch wide
    • Country Of Origin 6 : ID
    • Country Of Origin 7 : US
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2101003EN
    • Database Version : 2016-11
    • Pep Verification Date : 2021-01-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : referent product
    • Functional Unit Description : To provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.5W.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: China
    • Energy Model Installation A5 2 : Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    • Brightness : 16 levels
    • Number Of Pages : limited by internal memory capacity
    • Processor Frequency : 333 MHz
    • Global Commercial Status : Commercialised
    • Us Rated Supply Voltage5 : 24 V DC
  • Environment Attributes Main
    • Take Back : Nej, No
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20 IEC 60529 rear panel), IP65 IEC 60529 front panel)
    • ROHS Exemption Information : Yes
    • Halogene Performance : Product contains halogen above thresholds
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Silicon Free : No
    • Carbon Footprint : 801.58
    • Ambient Air Temperature For Operation : 0-50 °C
    • Ambient Air Temperature For Storage : -20-60 °C
    • Circularity Profile : ENVEOLI2101003EN
    • Environmental Disclosure : ENVPEP2101003EN
    • F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
    • Halogen Content Performance : Product contains halogen above thresholds
    • Nema Degree Of Protection : NEMA 4X front panel indoor use)
    • Operating Altitude : <= 6561.68 ft (2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 0-85 % without condensation
    • Pep Code : ENVPEP2101003EN
    • Pep Verification Date : 2021-01-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : touch panel screen
    • Range Of Product : Harmony STO & STU
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France, United Kingdom
    • Depth : 56.5 mm
  • Batteries & Runtime Attributes
    • Removable Battery : USER_REPLACEABLE, User replaceable
