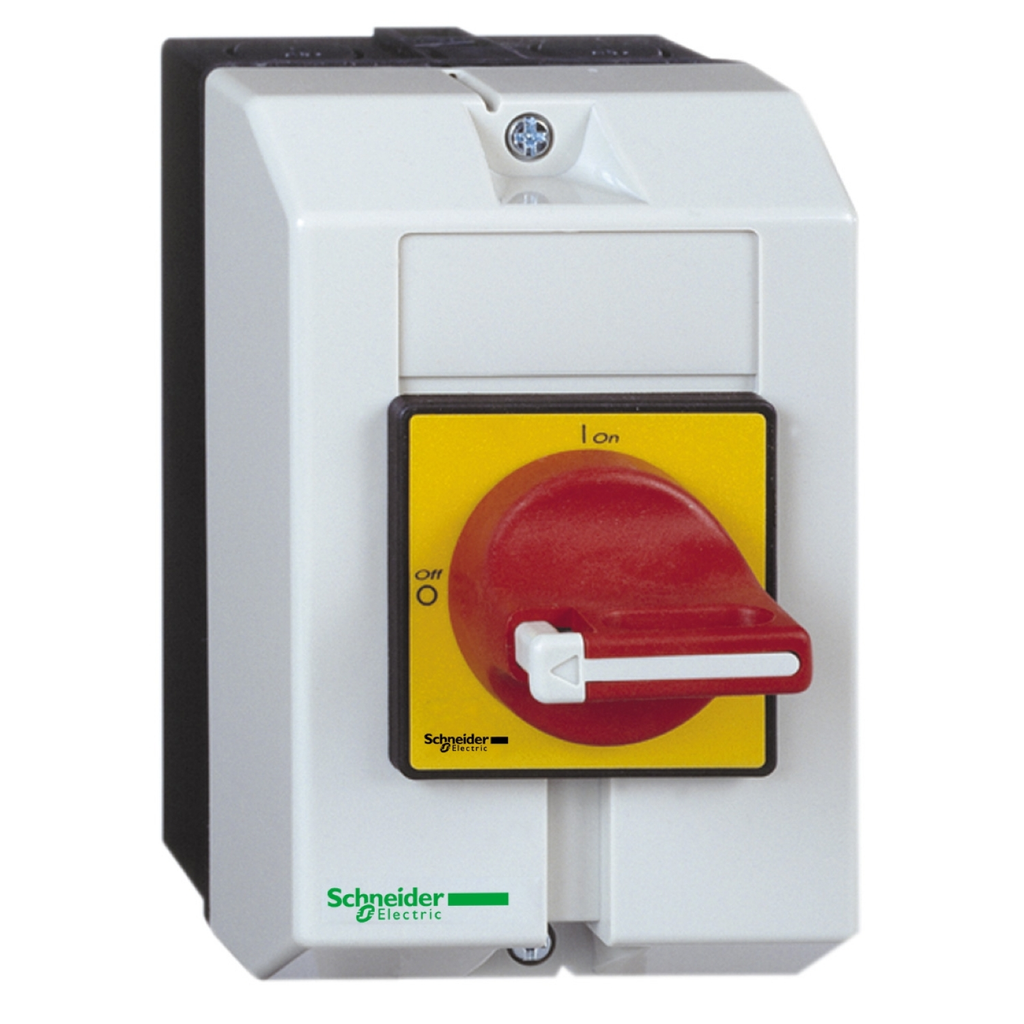

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 16A 690V, for main and emergency stop switching in motor applications AC-23 up to 5.5kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padl

• Connections Terminals
• screw clamp terminals 10-10 mm² solid
• screw clamp terminals 6-6 mm² flexible - with cable end
• screw clamp terminals 6-6 mm
• Making Capacity
• 200 A 400 V AC-21A
• 200 A 400 V AC-22A
• 200 A 400 V AC-23A
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.07906756912597865
• 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1 kg CO2 eq.
• 1.0940306052987434
• Standards
• IEC 60947-4-1
• IEC 60204
• Ue Rated Operational Voltage
• 690 V AC
• Icm Rated Short Circuit Making Capacity
• 1 kA 400 V at Ipeak
• Ip Degree Of Protection
• IP65 conforming to IEC 60529
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 3 kg CO2 eq.
• 2.629883768507865
• Rated Operational Power In W
• 5.5 kW 400 V AC-23)
• 4 kW 400 V AC-3)
• Electrical Durability
• 100000 cycles AC-21
• 30000 cycles DC-1...5
• Fire Resistance
• 960 °C IEC 60595-2-1
• Add Ons
• VZ11
• VZ7
• VZ14
• VZ20
• VZ01
• Rotary Handle Padlocking
• 1 to 3 padlocks 4-8 mm
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 13 kg CO2 eq.
• 13.432378470046519
• Carbon Footprint Of The Distribution Phase A4
• 0.09743338386300768
• 0.1 kg CO2 eq.
• Tightening Torque
• 2.1-2.1 N.m screw clamp terminals
• Mechanical Robustness
• vibrations 10...150 Hz 1 gn) IEC 60068-2-6
• shocks 11 ms 30 Gn) IEC 60068-2-27
• shocks 11 ms
• Ie Rated Operational Current
• 11 A AC-23A)400 V
• Icw Rated Short Time Withstand Current
• 300 A 400 V 1 s
• Rated Conditional Short Circuit Current
• 10 kA 400 V 20 A aM
• 10 kA 400 V 20 A gG

• Physical Attributes
• Handle Color : red
• Handle Front Plate Color : yellow
• Complementary Attributes
• Uimp Rated Impulse Withstand Voltage : 8 kV
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• ETIM 10 : EC000216
• Device Type : LV equipment - LV switch - disconnector
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 2.62988376850786
• Distribution Carbon Footprint : 9.74333838630077e-02
• Installation Carbon Footprint : 7.90675691259786e-02
• Use Carbon Footprint : 13.4323784700465
• End Of Life Carbon Footprint : 1.09403060529874
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1936
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Base Dimension : 60 x 60 mm
• Compatibility Code : enclosed switch disconnector
• Control Type : rotary handle
• Device Short Name : VCF
• Environmental Characteristic : standard environment
• Handle Color : red
• Handle Front Plate Color : yellow
• Intermittent Duty Class : 30
• Marking : 0 - 1
• Mechanical Durability : 100000 cycles
• Package Weight Lbs : 481.000 g
• Performance Level : high performance
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : enclosed emergency stop switch disconnector
• Protective Treatment : TC
• Range : TeSys
• Returnability : Yes
• Suitability For Isolation : yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 17 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ithe Conventional Enclosed Thermal Current : 16 A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 17.332793796842115
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : enclosed emergency stop switch disconnector
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=643504&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 17.3327937968421
• Ambient Air Temperature For Operation : -20-50 °C
• Environmental Disclosure : ENVPEP2211019
• Eu Rohs Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Czechia
• Height : 5.75 in
• Width : 3.54 in
• Depth : 5.16 in
